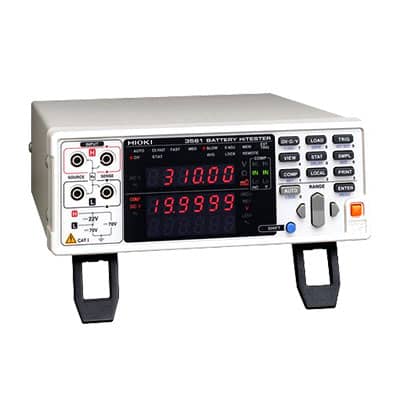

HIOKI 3561 BATTERY HiTESTER:
Hioki benchtop battery testers support simultaneous high-speed measurement of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low-resistance batteries, and other battery packs for high-voltage applications. The 3561 is a wide range of 300 mΩ to 3Ω/20V DC battery internal resistance tester for high-speed production line testing of small secondary batteries.
Are you looking for an outstanding, battery tester? Yes, you are in the right place at the right time. tools Bangladesh provides testing supplies and tools. So, you may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest shipping options.
Key Features:
- High-speed testing for production lines of small battery packs for mobile and portable communications devices
- Measure internal resistance and battery voltage
- For process control such as in high-speed automated assembly lines (*1)
- Measure from 0.01 mΩ to 3.1 Ω
- Measure from ± 0.1 mV DC to ± 19.9999 V DC
Basic specifications:
Accuracy guaranteed: 1 year
| Max. applied measurement voltage | ±22 V DC ±60 V DC maximum rated voltage above ground |
|||||
|---|---|---|---|---|---|---|
| Resistance measurement ranges | 300 mΩ (max. display 310.00 mΩ, resolution 10 μΩ) to 3 Ω (max. display 3.1000 Ω, resolution 100 μΩ), 2 ranges Accuracy: ±0.5 % rdg. ±5 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM) Testing source frequency: 1 kHz ±0.2 Hz, testing current: 10 mA (300 mΩ range), 1 mA (3 Ω range) Open terminal Voltage: 7 V peak |
|||||
| Voltage measurement ranges | DC 20 V, resolution 0.1 mV, Accuracy: ±0.01 % rdg. ±3 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM) | |||||
| Display | 31000 full digits (resistance), 199999 full digits (voltage), LED | |||||
| Sampling rate | Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow) (Typ., sampling time depends on supply frequency settings and function.) |
|||||
| Measurement time | Response time + sampling rate, approx. 3 ms for measurements (Response time depends on reference values and the measurement object.) |
|||||
| Comparator functions | Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.) |
|||||
| Interfaces | External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only) | |||||
| Power supply | 100 to 240 V AC, 50/60 Hz, 30 VA max. | |||||
| Dimensions and mass | 215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz) | |||||
| Included accessories | Instruction manual × 1, Power cord × 1 | |||||
