Today’s high-bandwidth premises networks depend on a reliable fiber optic infrastructure. Proper installation and maintenance of fiber cabling is imperative for minimizing network downtime. Whether you require basic fiber verification capabilities, advanced troubleshooting and inspection, or documented loss and power measurements, Fluke Networks’ SimpliFiber® Pro Optical Power Meter and Fiber Test Kits are the best first-line fiber instruments to meet your needs.

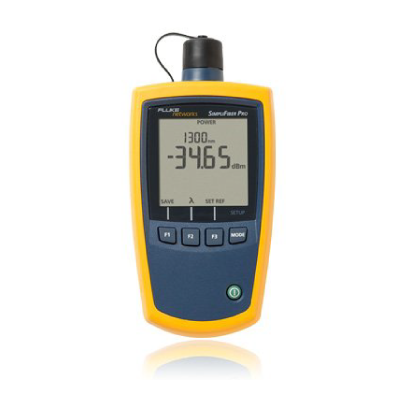

SimpliFiber® Pro Optical Power Meter and Fiber Test Kits include all the tools necessary to verify and troubleshoot optical fiber cabling systems, measure loss and power levels, and inspect and clean connector end-faces. Replacing the popular SimpliFiber series, these next generation optical loss test kits boast industry-leading functions such as dual-wavelength testing and automatic-wavelength detection, in addition to unique features such as CheckActive™, FindFiber™, and Min/Max. With such advanced, yet easy-to-use, capabilities that reduce test times, SimpliFiber Pro is simply the best first-line fiber test kit on the market.
Product Highlights
Simple-to-use fiber-loss tester with advanced time-saving features. Choose from various kits with configurations to meet your fiber verification, inspection, and cleaning needs.
- Single-port, simultaneous dual-wavelength feature completes testing in half the time and saves measurements from both wavelengths into one record
- Additional wavelengths of 1490 and 1625 nm
- CheckActive™ feature emits an audible tone and displays an icon when a live fiber is detected, eliminating the need to set up a measurement
- FindFiber™ Remote ID enables one individual to quickly identify cable connections or routings (especially useful at patch panels), eliminating the need for multiple technicians on opposite ends of a fiber link to match color combinations
- Min/Max capability automates precision tracking of intermittent power fluctuations
- Large internal memory save 1000 results which enables continuous testing and recording
- LinkWare Cable Test Management software helps to analyze test results and create professional test reports
- Various kit configurations for all “first line” fiber handling needs, including fiber verification, inspection, and cleaning – all housed in a professional, rugged carrying case
- Mag Kit Strap Attachment - Strong rare earth magnet attaches to metal surfaces in the testing environment, allowing the technician to work "hands free"
Specifications
| General Specifications |
| Temperature range |
Operating: -10 °C to 50 °C
Storage: -20 °C to 50 °C |
| Humidity range |
95% (10 °C to 35 °C) non-condensing; 75% (35 °C to 40 °C) non-condensing; uncontrolled <10 °C |
| Certifications |
CE, CSA, N10140, Class 1 laser-safe |
| Dimensions |
Power meter: 6.4 in x 3.2 in x 1.5 in (16.5 cm x 8.0 cm x 3.9 cm)
MM/SM sources: 5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1 cm) |
| Weight |
Power meter: 11.5 oz (325 g)
MM/SM sources: 9.8 oz (278 g) |
| Optical Sources |
| Optical output connector |
Fixed SC |
| Emitter type |
850/1300: LED
1310/1550: FP Laser
FindFiber: Laser |
| Emitter wavelengths |
850, 1300, 1310, 1490, 1550, 1625 |
| Power output (minimum) |
MM: ≥ -20 dBm; SM: ≥ 8 dBm minimum; -7 dBm nominal |
Power output stability
(8 hours) |
MM: +/- 0.1 dB over 8 hours; SM: +/- 0.25 dB over 8 hours |
| MM battery life (2 x AA IEC LR6) |
40 hours typical |
| SM battery life (2 x AA IEC LR6) |
30 hours typical |
| FindFiber battery life (2 x AA IEC LR6) |
80 hours typical |
| Optical Power Meter |
| Power measurement accuracy |
+/-0.25 dB |
| Optical connector |
Removable adapter; SC adapter standard; Optional adapters include LC, ST |
| Detector type |
InGaAs |
| Calibrated wavelengths |
850, 1300, 1310, 1490, 1550, 1625 |
| Power measurement range |
850: 10 to -52 dBm
1300, 1310, 1490, 1550, 1625: 10 to -60 dBm |
| Power measurement linearity |
850 nm: +/- 0.2 dB; +/- 0.2 dB for power from 0 dBm to -45 dBm, +/- 0.25 dB for power < -45 dBm; 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm: +/- 0.1 dB; +/- 0.1 dB for power from 0 dBm to -55 dBm, +/- 0.2 dB for power > 0 dBm and < -55 dBm |
| Resolution |
0.01 dB |
| Battery life |
>50 hours typical |
| Memory |
1000 loss or power measurements |
| Serial communication physical interface |
USB |
| Microscanner2 Specifications (Included in MS2-FTK kit) |
| Test Connectors |
Twisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts RJ45 and RJ11 Coax: F-connector for 75 Ω, 50 Ω, 93 Ω cables |
| Cable Tests |
Tests for open circuits, short circuits, cross-wired pairs, wiremap to TIA-568A/B standards, remote ID locators |
| Length Measurement |
Length (up to 460 meters or 1,500 feet) using Time Domain Reflectometry (TDR) Technology |
| Tone Generator |
IntelliTone digital tone: [500 KHz]; analog tones:[400Hz, 1KHz] |
| PoE Detection |
Solicits and detects the presence of 802.3af compatible PoE devices |
| Ethernet Port Test |
Advertised speed of 802.3 Ethernet ports (10/100/1000) |
| Power Source |
Battery type: 2 AA alkaline batteries |
| Dimensions |
3 in x 6.4 in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) |
| Weight |
13 ounces; 363 grams (batteries included) |
| Warranty |
One year |
| M12/ RJ45 Cable Specifications: |
| Cable type |
Ethernet cable, Cat5e, 6, 6a, shielded, 2 Pair AWG 26 stranded (7 wire), RAL 5021 (water blue), M12 4 pos. D- coded on RJ45 connector |
| Number of positions |
4 |
| Fixed cable length |
2m |
| Volume resistance |
≤ 5 mΩ |
| Insulation resistance |
≥ 100 MΩ |
| Ambient temperature |
-20 oC to 50 oC |
| Inflammability class acc to UL 94 |
V0 |
| Surge voltage category |
II |
| Pollution degree |
3 |
| Degree of protection |
IP20/IP67 |
| External cable diameter |
6.7 mm |
| Transmission characteristics |
Cat 5 (IEC 11801:2002), Cat 5e (TIA 568B:2001) |
Ordering Information
| SimpliFiber Pro Kit Ordering Information |
| Model |
Description |
| SFPOWERMETER |
SimpliFiber Pro optical power meter |
| SFMULTIMODESOURCE |
SimpliFiber Pro multimode 850/1300 source |
| SFSINGLEMODESOURCE |
SimpliFiber Pro singlemode 1310/1500 source |
| SFSINGLEMODE2 |
SimpliFiber Pro singlemode 1490/1625 laser light source |
| FTK1000 |
Multimode Fiber Verification Kit: Includes SimpliFiber Pro optical power meter, 850/1300 multimode source, VisiFault VFL, FT120 FiberViewer, FindFiber Remote ID sources, Magnetic Strap attachments, and carrying case; ST and LC adapter |
| FTK1200 |
Multimode Verification Kit: Includes Simplifiber Pro Optical power meter, 850/1300 multimode source, VisiFault VFL, FindFiber Remote ID sources, Magnetic Strap attachments, and carrying case; ST and LC adapter |
| FTK1375 |
Multimode Fiber Verification Kit with FI-500 FiberInspector Micro – Includes SimpliFiber Pro optical power meter, 850/1300 multimode source, VisiFault VFL, FI-500 FiberInspector, FindFiber Remote ID source, Magnetic Strap attachments, and carrying case; SC, ST, and LC power meter adapters. |
| FTK1475 |
Complete Fiber Verification Kit with FI-500 FiberInspector Micro – Includes SimpliFiber Pro optical power meter, 850/1300 multimode source, 1310/1550 singlemode source, VisiFault VFL, FI-500 FiberInspector, two (2) FindFiber Remote ID sources, Magnetic Strap attachments, and carrying case; SC, ST, and LC power meter adapters, NFC-KIT-BOX fiber optic cleaning kit. |
| FTK2000 |
Singlemode Fiber Verification Kit: Includes SimpliFiber Pro optical power meter, 1310/1550 singlemode source, Magnetic Strap attachments, and carrying case |
| FTK2100 |
Singlemode Fiber Verification Kit: Includes SimpliFiber Pro optical power meter, 1310/1550 and 1490/1625 singlemo
de sources, Magnetic Strap attachments, and carrying case |
| MS2-FTK |
Includes MicroScanner2 Cable Verifier with main wiremap adapter, Simplifiber Pro optical power meter, 850/1300 multimode source, SC power-meter adapter, multi-language Getting Started Guide, batteries, Magnetic Strap Attachments, and carrying case |
| FindFiber |
One (1) FindFiber Remote ID source |
| FindFiber-6 |
Set of six (6) FindFiber Remote ID sources |
| SimpliFiber Pro Accessories Ordering Information |
| Model |
Description |
| MRC-50-EFC-SCLC-M |
Multimode Encircled Flux compliant test reference cord (2m) for testing 50 µm LC terminated fibers (SC/LC) - Metal |
| MRC-50-EFC-SCFC |
Multimode Encircled Flux compliant test reference cord (2m) for testing 50 µm FC terminated fibers (SC/FC) |
| MRC-50-EFC-SCST |
Multimode Encircled Flux compliant test reference cord (2m) for testing 50 µm ST terminated fibers (SC/ST) |
| MRC-50-EFC-SCSC |
Multimode Encircled Flux compliant test reference cord (2m) for testing 50 µm SC terminated fibers (SC/SC) |
| MRC-625-EFC-SCLC-M |
Multimode Encircled Flux compliant test reference cord (2m) for testing 62.5 µm LC terminated fibers (SC/LC) - Metal |
| MRC-625-EFC-SCFC |
Multimode Encircled Flux compliant test reference cord (2m) for testing 62.5 µm FC terminated fibers (SC/FC) |
| MRC-625-EFC-SCST |
Multimode Encircled Flux compliant test reference cord (2m) for testing 62.5 µm ST terminated fibers (SC/ST) |
| MRC-625-EFC-SCSC |
Multimode Encircled Flux compliant test reference cord (2m) for testing 62.5 µm SC terminated fibers (SC/SC) |
| SRC-9-SCLC-M |
Single-mode test reference cord (2m) for testing 9 µm LC terminated fibers (SC/LC) - Metal |
| SRC-9-SCFC |
Single-mode test reference cord (2m) for testing 9 µm FC terminated fibers (SC/FC) |
| SRC-9-SCST |
Single-mode test reference cord (2m) for testing 9 µm ST terminated fibers (SC/ST) |
| SRC-9-SCSC |
Single-mode test reference cord (2m) for testing 9 µm SC terminated fibers (SC/SC) |
| NFA-LC-SINGLE |
LC interchangeable adapter |
| NFA-FC-SINGLE |
FC interchangeable adapter |
| NFA-ST-SINGLE |
ST interchangeable adapter |
| NFA-SC-SINGLE |
SC interchangeable adapter |
| MS2-MAG-KIT |
Magnetic Strap attachment and spare holster |
