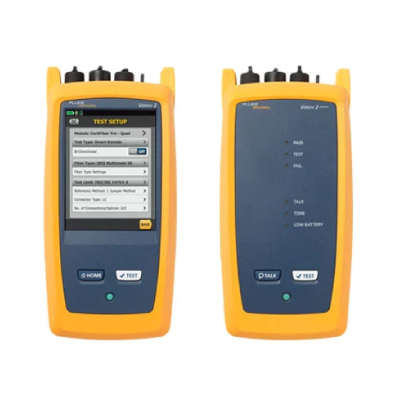

The CertiFiber Pro Optical Loss Test Set improves the efficiency of fiber optics certification. The Taptive user interface simplifies set-up, eliminates errors and speeds troubleshooting. A set reference wizard ensures correct reference setting and eliminates negative loss errors. Built on the future-ready Versiv platform, CertiFiber Pro Optical Loss Test Set (OLTS) provides merged Tier 1 (Basic) / Tier 2 (Extended) testing and reporting when paired with OptiFiber Pro module. A convenient quad module supports both singlemode and multimode and is multimode Encircled Flux compliant. Copper certification and Wi-Fi Analysis and Ethernet troubleshooting modules are also available. Analyze test results and create professional test reports using LinkWare Management Software.
CertiFiber Pro’s Optical Loss Test Set (OLTS) double ended fiber optic inspection capability allows you to inspect and certify fiber optic connector end-faces at both ends of your fiber link in less than a second so you can get your job done the first time. This double ended fiber optic inspection capability provides automated PASS/FAIL certification, takes the guess work out of fiber inspection so anyone can be a fiber expert.
Unique Features:
- Versiv enables users to accomplish more than ever before with a cable tester, accelerating every step of the testing process
- ProjX management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time.
- Taptive user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels.
- LinkWare management software provides unmatched analysis of test results and professional test reports
Standards:
- Allows combined OLTS Tier 1 (basic), OTDR Tier 2 (extended) certification, end-face inspection and reporting when paired with OptiFiber™ Pro OTDR
- Set reference wizard verifies test reference cords (TRCs) per ISO/IEC 14763-3 and eliminates negative loss errors
- Encircled Flux compliant optical launch conditions required by ANSI/TIA and ISO/IEC standards
- Double-ended fiber optic end-face certification to IEC 61300-3-35
Performance:
- Three-second Autotest – (four times faster than legacy testers) includes optical loss measurement of two fibers at two wavelengths with distance measurement and optical loss budget calculation
- Provides automatic Pass/Fail analysis to industry standards or custom test limits
- Identifies incorrect test procedures resulting in negative loss results
- Double ended Pass/Fail certification of fiber optic connector end-faces
- Graphical indication of problem areas on fiber end-faces due to contamination, pits, chips and scratches
- Interchangeable power meter adapters available for all typical connector types (SC, ST, LC and FC) to enable the most accurate 1-jumper reference method
- Built-in visual fault locator for basic troubleshooting and polarity determination
- Dual wavelength measurement capability on a single fiber allows the tester to be used in applications that require only one fiber link.
- Compliant with TIA-526-14-B and IEC 61280-4-1 Encircled Flux requirements with no additional equipment or procedures
- Integrated Wi-Fi allows you to easily upload results to LinkWare Live
Power Meter Specifications
| Specification |
Details |
| Input Connector |
Interchangeable connector adapter (LC standard, SC, ST and FC optional) |
| Detector Type |
InGaAs |
| Wavelengths |
850 nm, 1300 nm, 1310 nm, 1550 nm |
| Power Measurement Range |
0 dBm to -65 dBm (850 nm), 0 dBm to -70 dBm (all other wavelengths) |
| Power Measurement Uncertainty |
< ± 5% ± 32 pW |
| Measurement Linearity |
< ± 0.1 dB |
| Re-calibration Period |
1 year |
| Integrated Wi-Fi |
Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
| Notes |
1. ± 100 pW at 850 nm
2. Conditions: Power level 100 μW (-10 dBm), CW, ambient temperature 23°C ± 1°C, SC/UPC connector, 5 min warm-up, NIST traceable.
3. Linearity: -3 dBm to -55 dBm at 850 nm & 1310 nm under 23°C ± 1°C and 5 min warm-up |
Loss/Length Specifications
| Specification |
CertiFiber Pro Multimode Modules |
CertiFiber Pro Singlemode Modules |
| Testing Speeds |
Smart Remote: < 3 sec
Far End Source: ≤ 2 sec
Loopback: ≤ 2 sec |
Smart Remote: < 3 sec
Far End Source: ≤ 2 sec
Loopback: ≤ 2 sec |
| Input/Output Connectors |
Interchangeable connector adapter (LC standard, SC, ST, FC optional) |
Interchangeable connector adapter (LC standard, SC, ST, FC optional) |
| Launch Condition |
Encircled Flux compliant to TIA-526-14-B, ISO/IEC 14763-3, IEC 61280-4-1 |
Encircled Flux compliant to TIA-526-14-B, ISO/IEC 14763-3, IEC 61280-4-1 |
| Fiber Types Tested |
50/125 µm or 62.5/125 µm |
Singlemode |
| Source Type and Wavelengths |
LED source: 850 nm ± 30 nm
1300 nm ± 20 nm |
Fabry-Perot laser diode: 1310 nm ± 20 nm
1550 nm ± 30 nm |
| Maximum Length Measurement |
12 km |
130 km |
| Length Measurement Accuracy |
± 1.5 m plus ± 1% of length |
± 1.5 m plus ± 1% of length |
| Output Power (Nominal) |
≥ -24 dBm with EF-TRC |
≥ -4 dBm |
| Output Power Stability |
± 0.05 dB over 8 hours
± 0.03 dB over 15 minutes |
± 0.1 dB over 8 hours
± 0.08 dB over 15 minutes |
Loss/Length Specifications (continued)
| Specification |
Details |
| Source Wavelengths |
850 nm, 1300 nm, 1310 nm, 1550 nm |
| Power Measurement Range |
0 dBm to -65 dBm (850 nm)
0 dBm to -70 dBm (all other wavelengths) |
| Power Measurement Uncertainty¹² |
< ± 5% ± 32 pW |
| Measurement Linearity³ |
< ± 0.1 dB |
| Re-calibration Period |
1 year |
Footnotes:
-
±100 pW at 850 nm
-
Under the following conditions:
• Power level: 100 μW (-10 dBm), continuous wave (CW)
• Wavelengths: 850 nm and 1310 nm
• Beam: Divergent, NA = 0.20 for 50/125 μm and NA = 0.14 for 9/125 μm
• Temperature: 23° ± 1°C
• Connector: SC/UPC with ceramic ferrule
• Warm-up time: After 5 minutes
• Calibration: Traceable to NIST
-
Range: -3 dBm to -55 dBm at 850 nm and 1310 nm
• Temperature: 23° ± 1°C
• Warm-up time: After 5 minutes
Selected Specifications (VFL)
| Title |
Requirement |
| Output Power |
>-5 dBm <0 dBm SMF-28 singlemode fiber Continuous wave SC/UPC connector |
| Operating Wavelength |
650 nm nominal |
| Output Modes |
Continuous wave
Pulsed mode (2 Hz to 3 Hz blink frequency) |
| Connector Adapter |
2.5 mm universal |
| Laser Safety |
Class II CDRH
Over operating temperature range |
Environmental Specifications
| Title |
Requirement |
| Operating Temperature |
-10° C to 45° C |
| Storage Temperature |
-10° C to +60° C |
| Operating Relative Humidity |
0 % to 90 %, 32 °F to 95 °F (0° C to 35° C)
0 % to 70 %, 95 °F to 113 °F (35° C to 45° C) |
| Vibration |
Random, 2 g, 5 Hz-500 Hz |
| Shock |
1 m drop test with and without module and adapters |
| Safety |
CSA C22.2 No. 1010.1: 1992
EN 61010-1 1st Edition + Amendments 1, 2 |
| Pollution Degree |
2 |
| Altitude |
Operating: 4,000 m
Storage: 12,000 m |
| EMC |
EN 61326–1 |
