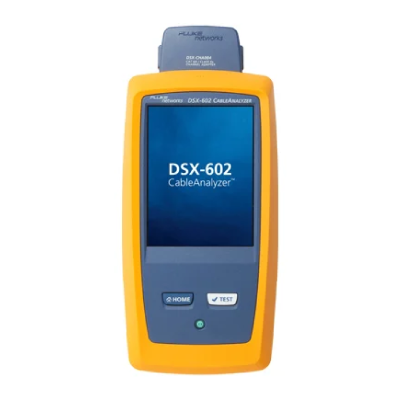

Fluke DSX-602 CableAnalyzer™
The DSX-602 CableAnalyzer™ is the tool for essential certification of copper, twisted pair structured cabling from Cat 3 / Class C through Cat 6A / Class EA featuring speed, and reliability making you more efficient and productive – you can see the results on the bottom line. No other tester will deliver as consistently as the DSX-602. Its gesture-based user interface allows your techs to spend less time interpreting screens and more time testing. 500 MHz frequency range certifies Cat 6A/Class EA cabling for 10 Gigabit Ethernet in just 10 seconds. Advanced diagnostics pinpoint the location of a failure. LinkWare™ Live cloud-based service that lets you manage certification jobs anytime, anywhere, with anyone on any device.
Product Highlights
Essential certification of copper, twisted pair structured cabling from Cat 3 / Class C through Cat 6A / Class EA
The DSX-602 provides essential Cat 6A and Class EA Copper Certification featuring 10 second test times and advanced user interface. Manage jobs and testers from any smart device over Wi-Fi with LinkWare™ Live. Features legendary Fluke Networks reliability backed by worldwide support.
- Cat 6A and Class EA Copper Certification
- Includes Channel Measurement Adapters; Optional rugged Permanent Link Adapters with removable test plug available
- 10 second Cat 6A test time
- ProjX™ Management System makes test setup fast and foolproof
- HDTDX and HDTDR diagnostics pinpoint fault location
- Integrates with LinkWare™ Live to manage jobs and testers from any smart device.
- Quickly and easily create professional custom PDF reports with LinkWare™ PC.
General Specifications
|
| Speed of Autotest |
Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds; Full 2-way Autotest of Category 6A/Class EA: 10 seconds |
| Supported test parameters (test standard determines parameters and frequency range reported) |
Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), Near End Crosstalk (NEXT), Attenuation-to-Crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (PS ELFEXT), Power Sum NEXT, Power Sum ACR-N |
| Maximum Frequency |
500 MHz |
| Test Result Storage |
12,000 Cat 6A with plots |
| Display |
5.7 in LCD display with a projected capacitance touchscreen |
| Dimensions |
Main Unit and Smart Remote: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm) |
| Weight |
3 lbs (1.36 kg) |
| Battery |
Lithium ion battery pack, 7.2 V |
| Battery Life |
8 hours, typical |
| Battery Charge Time |
4 hours (below 40° C, with tester off) |
| Languages supported |
English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian |
| Calibration |
Service center calibration period is 1 year |
| Integrated Wi-Fi |
Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
| Environmental Specifications |
| Operating temperature |
32° F to 113° F (0° C to 45° C) |
| Storage temperature |
-22° F to +140° F (-30° C to +60° C) |
| Operating relative humidity (% RH without condensation) |
0% to 90%, 32° F to 95° F: (0° C to 35° C) |
| 0% to 70%, 95° F to 113° F: (35° C to 45° C) |
| Vibration |
Random, 2 g, 5 Hz -500 Hz |
| Shock |
1 m drop test with and without module and adapter attached |
| Safety |
CSA 22.2 No. 61010, IEC 61010-1 3rd Edition |
| Altitude |
13,123 ft (4,000 m) 10,500 ft (3,200 m) with ac adapter |
| EMC |
EN 61326-1: Portable |
Tech Specs
|
Datacom Testing and Telecommunications/Datacom Cable Testers Template
|
| Circuit |
Copper |
| Test Type |
Certification |
| Cables Tested |
6A Network |
|
Test Equipment General Attributes
|
| Product Height |
8.63 IN |
| Product Length |
21.50 IN |
| Product Width |
8.50 IN |
| Country of Origin |
United States |
| Shipping Height |
8.63 IN |
| Shipping Length |
21.50 IN |
| Shipping Width |
8.50 IN |
