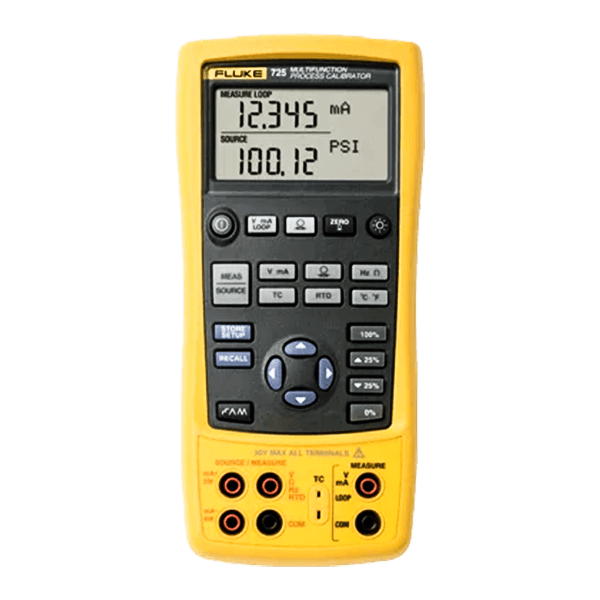

Name: Fluke 725 Multifunction Process Calibrator
Brand: Fluke
Availability: InStock

Model: Fluke 725 Multifunction Process Calibrator

Fluke 725 Multifunction Process Calibrator you can easily source and measure almost any process parameter and test almost any process device. Measure and source mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules.

From the moment you pick it up, the Fluke 725 is ready to perform as a powerful, yet easy-to-use field calibrator. Its simple controls, without menus, make operation easy. If you want to get it you can order not at Tools Bangladesh.

Key features: Fluke 725 Multifunction Process Calibrator

Powerful, easy-to-use field calibrator
Measures volts, mA, pressure, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters
Sources/simulates volts dc, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
Measures/sources pressure using any of 50 Fluke 750P Pressure Modules
Easy to read measure/source screen displays input and output simultaneously

Specifications: Fluke 725 Multifunction Process Calibrator

Measurement Accuracy
Voltage DC	30.000 V	0.02% + 2 counts (upper display)
	30.000 V	0.02% + 2 counts (lower display)
	100.00 mV	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.02% + 2 counts
Resistance	0.0 to 400.0 Ω	0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
	401 to 1500 Ω	0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
	1500 to 3200 Ω	1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Frequency	2.0 to 1000.0 CPM	0.05% + 1 count
	1.0 to 1100.0 Hz	0.05% + 1 count
	1.00 to 10.00 kHz	0.05% + 1 count
	Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC	100.00 mV	0.02% + 2 counts
	10.000 V	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA (source)	0.02% + 2 counts
Current DC	24.000 mA (simulate)	0.02% + 2 counts
Resistance	15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
	401 to 1500 Ω	0.5 Ω (excitation current 0.05 to 0.8 mA)
	1500 to 3200 Ω	1 Ω (excitation current 0.05 to 0.4 mA)
Frequency	2.0 to 1000.0 CPM	0.05%
	1.0 to 1100.0 Hz	0.05%
	1.00 to 10.00 kHz	0.25%
	Waveform	5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.8°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
	XK	0.6°C
	BP	1.2°C
Source accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	Accuracy stated for 4-wire measurement.
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.4°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, B, R, S: 1°C
	XK	0.6°C
	BP	1.2°C
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
Ramp functions	Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
	Accuracy	10%
	Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
Step functions	Steps	25% of range, 100% of range
Environmental Specifications
Operating temperature	-10°C to +55°C
Storage temperature	-20°C to 71°C
Operating altitude	3000 m
Safety Specifications
Agency approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Mechanical and General Specifications
Size	130 x 236 x 61 mm
Weight	0.65 kg
Batteries	4 AA alkaline batteries
Battery replacement	Separate battery compartment, accessable without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming

Includes: Fluke 725 Multifunction Process Calibrator

One set of AC72 alligator clips
One set of stackable test leads
One set of TL 75 testleads
User manuals
NIST- traceable calibration report and data

Accessories: Fluke 725 Multifunction Process Calibrator

Test leads (1)

Fluke TLK-220 US SureGrip™ Industrial Test Lead

Cases (3)

Fluke C100 Universal Carrying Case
Fluke C120 Hard Carrying Case
Fluke C125 Meter Case

Clips (1)

Fluke AC220 SureGrip™ Alligator Clips

Lights (1)

Fluke L215 SureGrip™ Kit with Probe Light and Probe Extenders

Pressure (1)

Fluke 700PRV Pressure Relief Valve Kit

Pumps (1)

Fluke 700 PMP Pressure Pump

Temperature (1)

Fluke 700TC2 Thermocouple Plug Kit 700TC2
