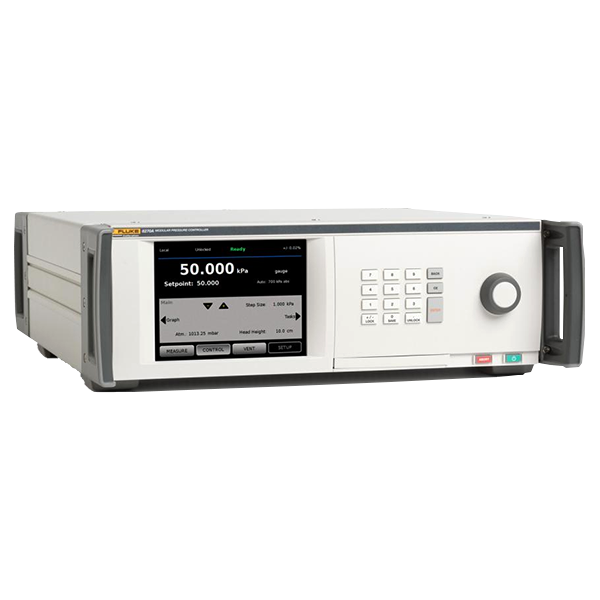

Model: 8270A Modular High-Pressure Calibrators
Fluke 8270A Modular High-Pressure Calibrators provide the accurate result that you are looking for.
A pressure range 100 times smaller than the full scale will meet the control specifications without reducing supply pressure. For example, an 8370A with a 70 MPa (10 000 psi) high range module and a 700 kPa (100 psi) low range module will be able to control pressures below 700 kPa (100 psi) to within ±0.014 kPa (0.002 psi) without reducing the supply pressure.
Flexible configuration options of Fluke modular high-pressure calibrators
The 8270A and 8370A are modular systems that can be configured with up to five measurement modules at the same time, so they can handle high pressure, low pressure, and everything in between. Three families of modules provide three levels of performance that let you set up a system matching your needs for accuracy and value.
So, surely you can now depend on the rugged and reliable Fluke Modular High-Pressure Calibrators that always provide the value. Quick buy now from Tools Bangladesh.
Key Features: 8270A and 8370A Modular High-Pressure Calibrators
- The 8270A measures and controls pressures from vacuum to 44 MPa (6400 psi). It can be configured with ranges as low as 100 kPa (15 psi).
- The 8370A measures and controls pressures from the atmosphere to 107 MPa (15 500 psi). It can be configured with ranges as low as 700 kPa (100 psi).
Specifications: 8270A and 8370A Modular High-Pressure Calibrators
General specifications |
Mains |
Power requirements |
100 V ac to 240 V ac, 47 Hz to 63 Hz |
Fuse |
T3.15 A 250 V ac |
Max power consumption |
100 W |
Environment |
Operating ambient temperature range |
15 °C to 35 °C |
Storage temperature |
-20 °C to 70 °C |
Relative humidity |
Operating: <80 % to 30 °C, <70 % to 40 °C |
Storage: <95 %, non-condensing. A power stabilization period of four days may be required after extended storage at high temperature and humidity. |
Vibration |
MIL-T-28800E |
Altitude (operation) |
<3000 m |
Warm up time |
15 minutes after power up or module installation, when items previously stored within Operating Ambient Temperature Range. |
Compliance |
Ingress protection |
IEC 60529:IP20 |
Safety |
IEC 61010-1, Installation Category II, Pollution degree 2 |
Weight and Dimensions |
Weight (Chassis only) |
13 kg (28.5 lbs) / 15 kg (35.25 lbs) |
Dimensions |
Height: 147 mm (5.78 in) |
Width: 452 mm (17.79 in) |
Depth 488 mm (19.2 in) |
Rack mount dimensions |
3U-19 inch rack |
Electromagnetic Compatibility (EMC) |
IEC 61326-1 (Controlled EM environment |
IEC 61326-2-1; CIPR 11: Group 1, Class A Group 1 equipment has intentionally generated and/or uses conductivity coupled radio-frequency energy which is necessary for the internal functioning of the equipment itself.
Class A equipment is equipment suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
Emissions which exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object. The equipment may not meet the immunity requirements of 61326-1 when test leads and/or test probes are connected.
|
USA (FCC) |
47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103. |
Korea (KCC) |
Class A Equipment (Industrial Broadcasting & Communication Equipment) This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. |
Communication Interfaces |
Primary Remote Interfaces |
IEEE, Ethernet, RS-232, USB |
System Connection |
Supports interconnection of 2 or 3 systems |
Switch Test Connection |
Standard BNC Jack: Nominal 24 V dc isolated drive Maximum 30 V dc w.r.t.chassis ground |
Aux Drivers |
4 external Solenoid Drivers 24 V dc Drive (Maximum drive 6 W continuous per channel |
Operating characteristics |
Control specifications |
95 % of setpoints are within specification limits for stated conditions as calculated by mean plus 1.67 standard deviations of test data. |
Control Precision (Dynamic Mode) |
0.002% Range Span or 0.01 kPa (whichever is greater) |
Control Turndown |
100:1 (typical)
To meet the control specifications, supply pressure should not be greater than 100 times the range of the measurement module. Control turndown is defined as the relationship between the provided supply pressure and the appropriate supply pressure for the range
|
Low Control Point |
1 kPa (0.15 psi) absolute (8270A only) 7 kPa (1.0 psi) gauge (8370A, 8270A without vacuum pump) |
Settling Time |
Settling time is the time required to be within 0.005% of setpoint for 10 % steps into volumes up to 50 cm3 for all pressures >7 kPa absolute (8270A) or 7 kPa gauge (8370A). Settling time may be affected by multiple variables, including temperature effects, component flow rates, leaks, and overall volume configurations.
Pressure Measurement Module (PMM) |
Dynamic A Mode 1 |
Dynamic B Mode |
Range < 44 MPa |
Range > 44 MPa |
Range < 44 MPa |
Range > 44 MPa |
PM200/PM230 |
30 seconds |
45 seconds |
60 seconds |
75 seconds |
PM500 |
35 seconds |
-- |
60 seconds |
-- |
PM600/PM630; |
45 seconds |
60 seconds |
60 seconds |
75 seconds |
1 8270A: Settling time for setpoints less than or equal to 200 kPa absolute may require an additional 15 seconds. 8370A: Settling time for setpoints less than or equal to 700kPa gauge may require an additional 15 seconds. |
|
Overshoot (Dynamic A) |
0.08% Full Scale or 2 kPa (whichever is greater) |
