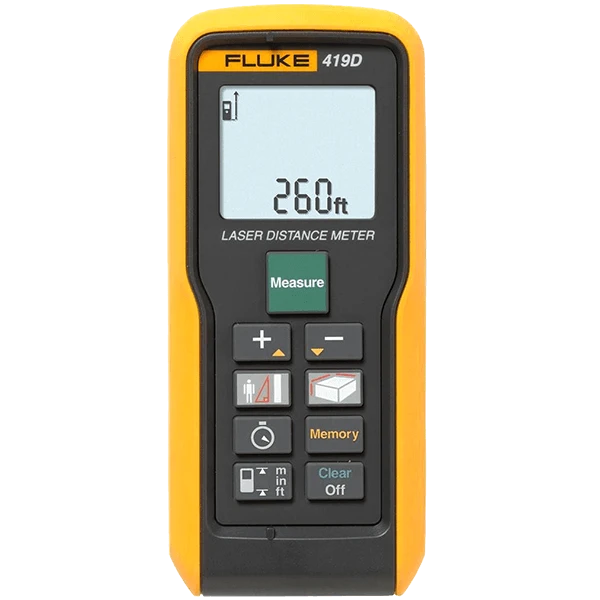

Model: Fluke 419D 80M distance meter

Fluke 419D 80M distance meter is working accurately to the test point. You can use the Fluke 419D laser disaffect meter to charity happening to 80 m (260 ft.), accurate to + 1 mm. No scales to justify or misread. The supplementary glowing laser makes it easy to plan even at long distances.

The 419D will mitigation you save era and quirk in errors once enhanced features bearing in mind storage for 20 add together displays, indirect Pythagoras make distant calculations, and the tripod mode for stable, long-estranged measurements.

And, you'll be competent to atmosphere the results more easily concerning the backlit display. No situation your job, This Fluke model laser estrange meter provides accurate long direction away from measurements to auspices happening you realize the comport yourself of two people as regards your own.

We providing these tools through Tools Bangladesh with the best price and with free delivery anywhere in Bangladesh.

Key features: Fluke 419D 80M distance meter

  • Versatile laser distance meter that instantly measures up to 80 m (260 ft.) with one-button point-and-click operation
  • Quickly calculates area (square feet/meters) and volume
  • Offers enhanced Pythagoras calculation for determining distance indirectly from three other measurements
  • Provides easy to-use addition and subtraction function
  • Provides audible keypad feedback

Specifications: Fluke 419D Laser Distance Meter

Distance Measurement
Typical measuring tolerance 1 ±1.0 mm 3
Maximum measuring tolerance 2 ±2.0 mm 3
Range at Leica Target Plate GZM26 80 m / 260 ft
Typical range 1 80 m / 260 ft
Range at unfavorable condition 4 60 m / 195 ft
Smallest unit displayed 6 / 30 / 60 mm (10 / 50 / 100 m)
Ø Laser point at distances 6 / 30 / 60 mm
(10 / 50 / 100 m)
Tilt measurement
Measuring tolerance to laser beam 5 No
Measuring tolerance to housing 5 No
Range No
General
Laser class 2
Laser type 635 nm, < 1 mW
Protection class IP54
Automatic laser off After 90 seconds
Automatic power off After 180 seconds
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 Up to 5,000 measurements
Size (L x W x D) 127 x 56 x 33 mm
Weight (with batteries) 153 g
Temperature range Storage operation -25°C to +70°C (-13°F to +158°F)
-10°C to +50°C (14°F to +122°F)
Calibration cycle Not applicable
Maximum altitude 3000 m
Maximum relative humidity 85% at 20°F to 120°F (-7°C to 50°C)
Safety IEC Standard No. 61010-1:2001
EN60825-1:2007 (Class II)
EMC EN 55022:2010
EN 61000-4-3:2010
EN 61000-4-8:2010
1. Applies for 100% target reflectivity (white painted wall), low background illumination, 25°C.
2. Applies for 10 to 500% target reflectivity, high background illumination, -10°C to +50°C.
3.Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. The maximum tolerance may deteriorate to 0.1 mm/m between 10 m to 30 m and to 0.15 mm/m for distances above 30 m.
4. Applies for 100% target reflectivity, background illumination between 10'000 lux and 30'000 lux.
5. After user calibration. Additional angle related deviation of ±0.01° per degree up to ±45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by ±0.1°.

Includes: Fluke 419D Laser Distance Meter

  • Two AAA batteries
  • Users manual on CD
  • Quick reference guide
  • Vinyl carrying pouch
  • Lanyard
  • Three-year warranty

Accessories: Fluke 419D Laser Distance Meter

  • Cases (3)
  • Fluke C195 Case
  • Fluke C50 Meter Case
  • Fluke C550 Tool Bag
  • Holsters (1)
  • Fluke H5 Electrical Tester Holster
