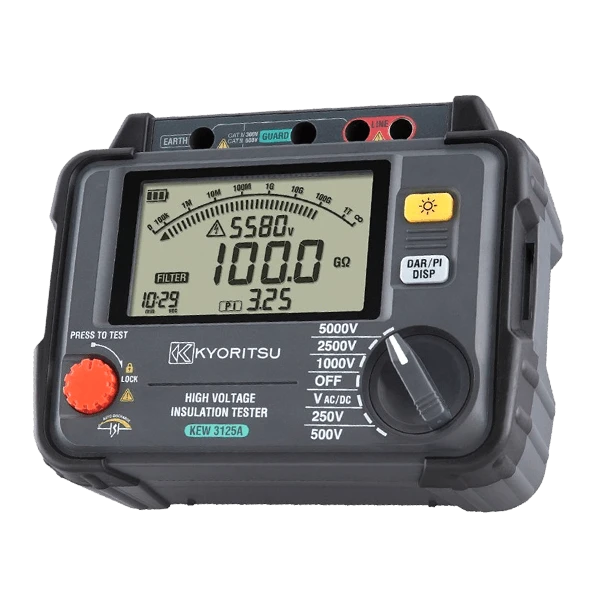

Kyoritsu KEW 3125A High Voltage Insulation Testers are permitted a broad range of insulation scrutiny happening to 1T across 5 voltage ranges occurring to 5kV (250V, 500V, 1000V, 2500V and 5000V). An indication of the output voltage and release voltage is displayed on the subject of speaking the screen. A filter charity is in addition to the facility to aid in the narrowing of noise interference and make a get your hands on stable measurements.
Key Features: Kyoritsu KEW 3125A High Voltage Insulation Testers
• Insulation Resistance up to 1TΩ
• Short-Circuit Current up to 1.5mA
• Wide Test Voltage from 250V to 5000V
• Diagnosis Function of PI and DAR
• Newly-designed alligator clip
• It comes with a tough hard case
• Filter function reduces noise interference for obtaining stable measurement
• Large display with Bar Graph indication and backlight
• Live voltage warning
• Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V
Specifications: Kyoritsu KEW 3125A High Voltage Insulation Testers
| Applicable standards |
IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2,
IEC 61010-031, IEC 61326-1, 2-2 |
| Power source |
DC12V : LR14/R14 × 8pcs |
| Dimensions |
177 (L) × 226 (W) × 100 (D) mm
300 (L) × 315 (W) × 125 (D) mm (Hard case) |
| Weight |
3125A: 1.9kg approx. (including batteries)
4kg approx. (including accessories) |
| Included Accessories |
7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m),
8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case),
LR14 (Alkaline battery size C) × 8, Instruction manual |
| Optional Accessories |
7168A (Line probe with alligator clip: 3m),
7253 (Longer line probe with alligator clip: 15m),
8302 (Adaptor for recorder) |
| Included Accessories |
7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m),
8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case),
LR14 (Alkaline battery size C) × 8, Instruction manual |
| Included Accessories |
7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m),
8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case),
LR14 (Alkaline battery size C) × 8, Instruction manual |
