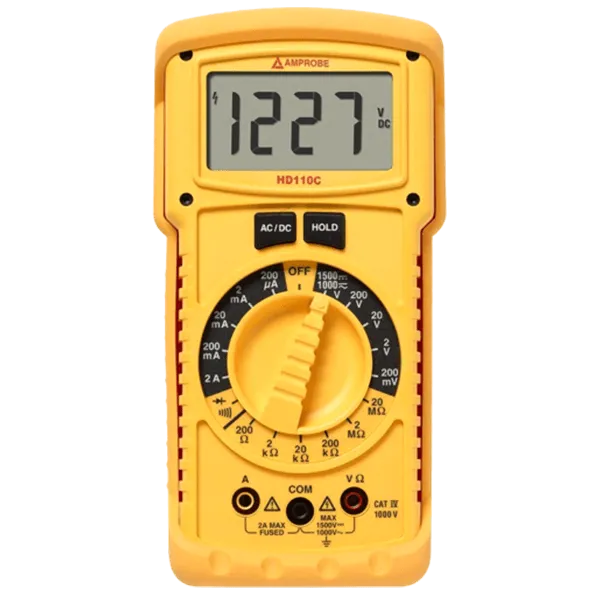

Model: Amprobe HD110C IP67 Heavy Duty Multimeter

Amprobe HD110C IP67 Heavy Duty Multimeter is included in the Highest voltage capability, measuring 1500V DC and 1000V AC and it measures accurately. This is a reliable and 100% trusted product.

The Amprobe HD110C Heavy Duty Multimeter is meant for professional use in severe environments. The meter is unusually rugged and honourable in unidentified stuffy use applications. It's made using waterproof construction to prevent dirt, grime, and moisture from entering the court lawsuit and causing inaccurate readings or damaging shorts.

Built of tough, ember-retardant thermoplastic resistant to grease and chemical spills, bearing in mind all sore components wonder-mounted for a decline resistant to at least eight feet. HD110C has an elongated voltage measurement gift of 1500V DC and 1000V AC, unmatched by any supplementary pedigree of digital multimeters. The outstretched voltage ranges can withstand transients occurring to 12 kV.

Tools Bangladesh offers these tools at the best price including amazing features. If you want to buy this product you can visit Bangladesh. We hope you will get it at your expected price.

Key Features: Amprobe HD110C IP67 Heavy Duty Multimeter

  • Highest voltage capability, measuring to 1500V DC and 1000V AC
  • CAT IV 1000 V rated
  • Special sealing for environment and water resistance. IP67 rated
  • Constructed with drop-resistant housing and PCB mounting
  • Magne-Grip™ holster frees both hands for work
  • Includes high voltage test leads with threaded alligator clips
  • Display 3-1/2 digit LCD, 1999 counts, with annunciators
  • Automatic polarity indication
  • Low battery indication
  • Standard 9 V battery, NEDA 1604, JIS 006P,IEC 6F2
  • Flame retardant, high-impact thermoplastic case
  • Resistance ranges 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ





Specifications: Amprobe HD110C IP67 Heavy Duty Multimeter

FEATURE HD-110C HD-160C
DC Voltage 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1500 V 1000.0 mV, 10.000 V, 100.00 V, 1500.0 V
AC Voltage 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1000 V 1000.0 mV, 10.000 V, 100.00 V, 1000.0 V
Current AC/DC 200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA, 2 A 100.00 µA, 1000.0 µA, 10.000 mA, 100.00 mA, 400.0 mA, 2.000 A
Resistance 200.0 O, 2.000 kO, 20.00 kO, 200.0 kO, 2.000 MO, 20.00 MO 1000.0 O, 10.00 kO, 100.00 kO, 1000.0 kO, 10.000 MO, 40.00 MO
Diode • –
Continuity •
Frequency – 100.00 Hz, 1000.0 Hz, 10.000 kHz, 100.00 kHz, 1000.0 kHz, 10.000 M Hz
Capacitance – 40.00 nF, 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF
Temperature – -4 °F → 2372 °F (-20 °C → 1300°C)
True-rms – •
Specifications
DC Volts range: 200 mV, 2 V, 20 V, 200 V, 1500 V
DC Volts resolution: 0.1 mV
DC Volts accuracy: All ranges ±(0.1 % rdg+2 dgts)
DC Volts input impedance: 10 MO
DC Volts OL protection: >1500 V dc/1000 V ac rms
DC Volts transient protection: >12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV
AC Volts (45 Hz to 2 kHz) ranges: 200 mV, 2 V, 20 V, 200 V, 1000 V
AC Volts (45 Hz to 2 kHz) resolution: 0.1 mV
AC Volts (45 Hz to 2 kHz) accuracy: 200 mV to 200 V (45-500 Hz) ±(0.8 % rdg+4 dgts),
AC Volts (45 Hz to 2 kHz) accuracy: 200 mV to 200 V (500 Hz-2 kHz) ±(1.5 % rdg+5 dgts)
AC Volts (45 Hz to 2 kHz) accuracy: 1000 V (50-60 Hz) ±(0.8 % rdg+4 dgts)
AC Volts (45 Hz to 2 kHz) accuracy: 1000 V (60-500 Hz) ±(1.5 % rdg+5 dgts)
AC Volts (45 Hz to 2 kHz) input impedance: 10 MO
AC Volts (45 Hz to 2 kHz) OL protection: 1500 V dc/1000 V AC rms
AC Volts (45 Hz to 2 kHz) transient protection: 12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000V product. This product should not be used in installations where transients exceed 12 kV.
DC Current range: 200 µA, 2 mA, 20 mA, 200 mA, 2 A
DC Current resolution: 0.1 µA
DC Current accuracy: 200 µA to 20 mA ±(0.5 % rdg+2 dgts)
DC Current accuracy: 200 mA to 2 A ±(1.0 % rdg+2 dgts)

For complete specs please download the product datasheet under the “Resources” tab.

Includes: Amprobe HD110C IP67 Heavy Duty Multimeter

  • Measures 1500 VDC
  • CAT IV 1000 V
  • IP67 Rated
  • Magne-Grip™ holster with magnetic hanging strap
  • N/A
