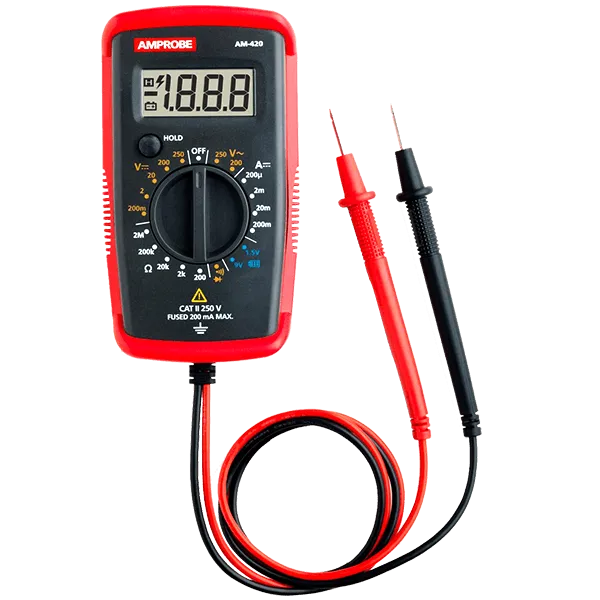

Model: AM-420 Residential Digital Multimeter
Amprobe AM-420 Residential Digital Multimeter is performing with the best to the test point that is rugged reliable and trusted.
Designed for in-residence repair and electrical scrutiny applications, Amprobe AM-420 AM-420 Digital Multimeter expertly proceedings voltage in receptacles, switches, explanation cords, and light fixtures. Use the continuity undertaking to easily troubleshoot open bulbs and fuses.
These compact tools are intended for in-on fire repair and electrical psychotherapy applications, including measuring the presence of voltage in electrical sockets, strengthening cords, batteries and subsidiary electrical circuits going on to 250 V.
It is a must-have tool for residential projects including installation, troubleshooting or repair of light fixtures, fans or appliances. DC ranges of voltage and current are included to also considering automotive diagnostics of electrical systems. The battery exam feature checks the amount of conflict enduring in freshen 1.5 V and 9 V batteries.
This is the best product that is working very well and we Tools Bangladesh is getting very good feedback from our all customers.
Key Features: AM-420 Residential Digital Multimeter
- Test leads installed
- Measures AC/DC voltage
- Measures DC current
- Measures resistance
- Audible continuity alert
- Rated to CAT II 250 V
- Diode testing
Specifications: AM-420 Residential Digital Multimeter
|
Feature
|
AM-420 | Best Accuracy |
|
AC Voltage
|
200.0 / 300 V | +/-(1.5% rdg + 4 LSD) @ 45 Hz to 400 Hz, 2 V to 200 V |
|
DC Voltage
|
200 mV 2.000 / 20.00 / 200.0 / 250 V |
+/-(1.2% rdg + 2 LSD) @ 200 mV to 200 V |
|
DC Current
|
200.0 µA 2.000 / 20.00 / 200.0 mA |
+/-(1.2% rdg + 5 LSD) @ 200 µA to 20 mA |
|
Resistance
|
200.0 Ω 2.000 / 20.00 / 200.0 kΩ |
+/-(1.5% rdg + 5 LSD) @ 200 Ω to 200 kΩ |
|
Continuity
|
• | |
|
Diode Test
|
• | |
|
Battery test
|
1.5 V, 9 V | +/-(5.0% rdg + 1 LSD) |
|
Data Hold
|
• |
|
General Specifications
|
|
|
Maximum display
|
1999, updates 2 to 3/sec
|
|
Range
|
Manual-ranging
|
|
Operating temperature
|
32°F to 104°F (0°C to +40°C)
|
|
Relative humidity
|
32°F to 86°F (0°C to +30°C) ≤75%; 86°F to 104°F (+30°C to +40°C) ≤50%
|
|
Pollution degree
|
2
|
|
Operating altitude
|
≤ 6561 ft (2000 m)
|
|
Storage temperature
|
14°F to 122°F (-10°C to +50°C)
|
|
Electromagnetic compatibility
|
In an RF filed of 1V/m = Specified accuracy ± 5%. RF field > 1V/m is not specified.
|
|
Over-range indication
|
” 1 “, “-1” or maximum display reading
|
|
Battery
|
One 9V alkaline battery (6LF22, 6LR61, MN1604) or equivalent
|
|
Battery life
|
Alkaline: 100 hours typical
|
|
Low battery indication
|
 |
|
Overvoltage Category
|
CAT II 250V
|
|
Safety Compliance
|
IEC 61010-1, UL 61010-1 2nd Ed. and CAN/CSA C22.2 No. 61010-1-04 Update No.1:2008
|
|
EMC Compliance
|
Conforms to IEC 61326-1
|
|
Certification
|
   |
|
Dimensions (L x W x H)
|
4.5 x 2.6 x 1.6 in (115 x 65 x 40 mm)
|
|
Weight
|
Approximately 0.61 lb (275 g) with battery installed
|
Includes: AM-420 Residential Digital Multimeter
- AM-420 Multimeter
- 9V alkaline battery (installed)
- User manual
- N/A
