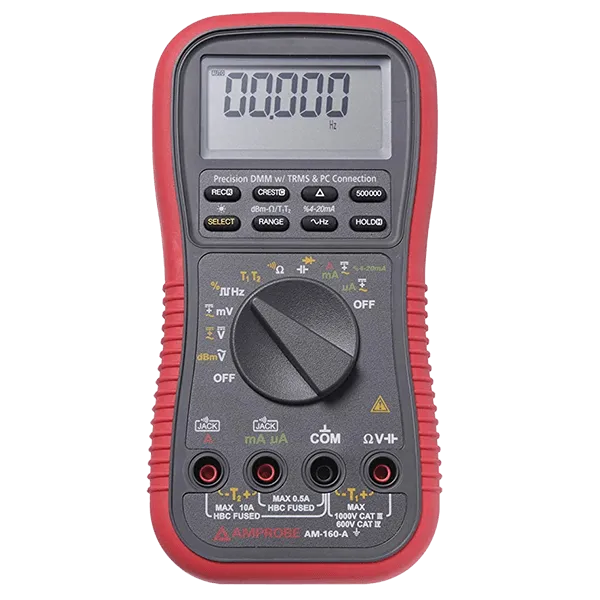

Model: Amprobe AM-160-A True-RMS Precision Multimeter with Temperature
Amprobe AM-160-A True-RMS Precision Multimeter with more valuable features. It has been expressed all over Bangladesh as a reliable and trusted product. So, why you late to buy it.
The Amprobe AM-160-A offers more features and greater than before precision at an adorable price. Precise authentic-RMS, correctness to 0.02%, frequency, capacitance, faithfulness cycle, temperature, analog bar graph, PC interface, and large backlit displays are just a handful of features that are close upon this accurateness multimeter.
Many people want to get a quality full product and then they search online for it. But they failed maximum time to get the right product.
I suggest to all our audience Tools Bangladesh is 100% trusted where are available the best product. So you can shop here.
Key Features: Amprobe AM-160-A True-rms Precision Multimeter with Temperature
- True-rms
- Precision accuracy to 0.02%
- Measurements: voltage up to 1000V AC/DC, resistance, AC/DC current, frequency, capacitance, duty cycle
- Dual temperature
- Optical isolated PC interface capability
- Crest (peak hold), max, man max-min recording
- Auto and manual ranging
- Intelligent auto power off
- Data hold
- Relative zero mode
- Audible and visual warning against improper plug-in
- DC loop current 4-20mA
- dBm reading with 20 selectable impedance values
- Backlight display
- Large, easy to read large LCD display
- High speed analog bar graph
- Diode test
- 4-20mA DC loop current
- Audible continuity
Specifications: Amprobe AM-160-A True-rms Precision Multimeter with Temperature
| FEATURE |
AM-140-A |
AM-160-A |
BEST ACCURACY |
| AC Voltage |
500.00 mV , 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
+/- (0.08 % rdg + 60 LSD)
@ 45 Hz → 300 Hz |
| DC Voltage |
500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
+/- (0.03 % rdg + 2 LSD)
@ 0 V → 50 V |
| Resistance |
500.00 O, 5.0000 kO, 50.000 kO, 500.00 kO, 5.0000 MO, 50.000 MO |
+/- (0.10 % rdg + 6 LSD) |
| AC/DC Current |
500.00 µA , 5000.0 µA; 50.000 mA, 500.00 mA; 5.0000 A, 10.000 A |
+/- (1.0 % rdg + 40 LSD)
@ 50 Hz / 60 Hz |
| Frequency |
5.0000 Hz → 200.000 kHz |
+/- (0.002 % rdg + 4 LSD) |
| Capacitance |
50.00 nF, 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 9999 µF |
+/- (2.0 % rdg + 3 LSD)
@ 50 nF → 50 µF ranges |
| Temperature |
– |
Dual thermocouple
-58 °F → 1832 °F
(-50 °C → 1000 °C) |
+/- (0.3% rdg + 2 °F),
+/- (0.3% rdg + 1 °C) |
| Duty cycle |
0.1 % → 99.99 % |
– |
+/-(3 LSD / kHz + 3 LSD) |
| Specifications |
| Display: |
4-4/5 digits 50,000 counts. Selectable stable mode 5-4/5 digits 500,000 counts for DC voltage, 6 digits 999,999 counts for HZ |
| Polarity: |
Automatic |
| Update rate: |
4-4/5 digits fast mode: 5 per second nominal; 5-4/5 digits stable mode: 1.25 Per second nominal; |
| Power supply: |
Single alkaline 9V battery |
| Power consumption: |
6mA typical |
For complete specs please download the product datasheet under the “Resources” tab.
Includes: Amprobe AM-160-A True-rms Precision Multimeter with Temperature
- True RMS (TRMS)
- Precision accuracy to 0.02%
- Measurements: Voltage up to 1000V AC/DC, Resistance, AC/DC Current, Frequency, Capacitance, Duty Cycle
