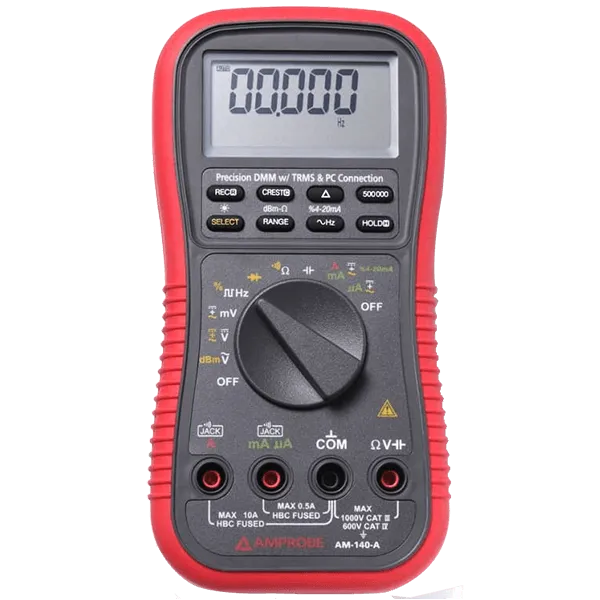

Model: Amprobe AM-140-A True-RMS Precision Digital Multimeter with PC Connection

Amprobe AM-140-A True-RMS Precision Digital Multimeter, do you looking it? It's really rugged and reliable and also included features with voltage up to 1000V AC/DC, resistance, AC/DC current, frequency, capacitance, duty cycle.

These Amprobe True-RMS poster grade digital multimeters come occurring when the maintenance for more features, enlarged precision at a huge price. True-RMS, accuracy to 0.02%, frequency, capacitance, commitment cycle, analog bar graph, PC interface, and large backlit displays are just a handful of features that within taking leisure to keep amused upon the AM-140-A.

Do you know who is a Digital Multimeter distributor Company? That is Tools Bangladesh. Don't worry you did not go the wrong way. You have come to a reliable and trusted website in Bangladesh and you may shop here.



Key Features: Amprobe AM-140-A True-RMS Precision Digital Multimeter with PC Connection

  • True-RMS
  • Measurements: voltage up to 1000V AC/DC, resistance, AC/DC current, frequency, capacitance, duty cycle
  • Optically isolated PC interface capability
  • Crest (peak hold), max, min, max-min, recording
  • Auto and manual ranging
  • Intelligent auto power off
  • Data hold
  • Relative zero mode
  • Audible and visual warning against improper plug-in
  • DC loop current 4-20mA
  • dBm reading with 20 selectable impedance values
  • Backlight display
  • Large, easy to read large LCD display
  • High-speed analog bar graph
  • Diode test
  • 4-20mA DC loop current
  • Audible continuity



Specifications: Amprobe AM-140-A True-RMS Precision Digital Multimeter with PC Connection



FEATURE AM-140-A AM-160-A BEST ACCURACY
AC Voltage 500.00 mV , 5.0000 V, 50.000 V, 500.00 V, 1000.0 V +/- (0.08 % rdg + 60 LSD)
@ 45 Hz → 300 Hz
DC Voltage 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V +/- (0.03 % rdg + 2 LSD)
@ 0 V → 50 V
Resistance 500.00 O, 5.0000 kO, 50.000 kO, 500.00 kO, 5.0000 MO, 50.000 MO +/- (0.10 % rdg + 6 LSD)
AC/DC Current 500.00 µA , 5000.0 µA; 50.000 mA, 500.00 mA; 5.0000 A, 10.000 A +/- (1.0 % rdg + 40 LSD)
@ 50 Hz / 60 Hz
Frequency 5.0000 Hz → 200.000 kHz +/- (0.002 % rdg + 4 LSD)
Capacitance 50.00 nF, 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 9999 µF +/- (2.0 % rdg + 3 LSD)
@ 50 nF → 50 µF ranges
Temperature – Dual thermocouple
-58 °F → 1832 °F
(-50 °C → 1000 °C)		 +/- (0.3% rdg + 2 °F),
+/- (0.3% rdg + 1 °C)
Duty cycle 0.1 % → 99.99 % – +/-(3 LSD / kHz + 3 LSD)
Specifications
Display: 4-4/5 digits 50,000 counts. Selectable stable mode 5-4/5 digits 500,000 counts for DC voltage 6 digits 999,999 counts for HZ
Polarity: Automatic
Update rate: 4-4/5 digits fast mode: 5 per second nominal; 5-4/5 digits stable mode: 1.25 Per second nominal;
42 Segments bar graph: 60 per second max
Power supply: Single alkaline 9V battery; neda1604a, jis6am6 or Iec6lf22
Power consumption: 6mA typical
Low battery: Below approx. 7V
Apo consumption: 55 µA typical

For complete specs please download the product datasheet under the “Resources” tab.

Includes: Amprobe AM-140-A True-rms Precision Digital Multimeter with PC Connection

  • True RMS (TRMS)
  • Measurements: Voltage up to 1000V AC/DC, Resistance, AC/DC Current, Frequency, Capacitance, Duty Cycle
  • Optical isolated PC interface capability



  • N/A

Model: Amprobe AM-140-A True-RMS Precision Digital Multimeter with PC Connection

Amprobe AM-140-A True-RMS Precision Digital Multimeter, do you looking it? It's really rugged and reliable and also included features with voltage up to 1000V AC/DC, resistance, AC/DC current, frequency, capacitance, duty cycle.

These Amprobe True-RMS poster grade digital multimeters come occurring when the maintenance for more features, enlarged precision at a huge price. True-RMS, accuracy to 0.02%, frequency, capacitance, commitment cycle, analog bar graph, PC interface, and large backlit displays are just a handful of features that within taking leisure to keep amused upon the AM-140-A.

Do you know who is a Digital Multimeter distributor Company? That is Tools Bangladesh. Don't worry you did not go the wrong way. You have come to a reliable and trusted website in Bangladesh and you may shop here.



Key Features: Amprobe AM-140-A True-RMS Precision Digital Multimeter with PC Connection

  • True-RMS
  • Measurements: voltage up to 1000V AC/DC, resistance, AC/DC current, frequency, capacitance, duty cycle
  • Optically isolated PC interface capability
  • Crest (peak hold), max, min, max-min, recording
  • Auto and manual ranging
  • Intelligent auto power off
  • Data hold
  • Relative zero mode
  • Audible and visual warning against improper plug-in
  • DC loop current 4-20mA
  • dBm reading with 20 selectable impedance values
  • Backlight display
  • Large, easy to read large LCD display
  • High-speed analog bar graph
  • Diode test
  • 4-20mA DC loop current
  • Audible continuity



Specifications: Amprobe AM-140-A True-RMS Precision Digital Multimeter with PC Connection



FEATURE AM-140-A AM-160-A BEST ACCURACY
AC Voltage 500.00 mV , 5.0000 V, 50.000 V, 500.00 V, 1000.0 V +/- (0.08 % rdg + 60 LSD)
@ 45 Hz → 300 Hz
DC Voltage 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V +/- (0.03 % rdg + 2 LSD)
@ 0 V → 50 V
Resistance 500.00 O, 5.0000 kO, 50.000 kO, 500.00 kO, 5.0000 MO, 50.000 MO +/- (0.10 % rdg + 6 LSD)
AC/DC Current 500.00 µA , 5000.0 µA; 50.000 mA, 500.00 mA; 5.0000 A, 10.000 A +/- (1.0 % rdg + 40 LSD)
@ 50 Hz / 60 Hz
Frequency 5.0000 Hz → 200.000 kHz +/- (0.002 % rdg + 4 LSD)
Capacitance 50.00 nF, 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 9999 µF +/- (2.0 % rdg + 3 LSD)
@ 50 nF → 50 µF ranges
Temperature – Dual thermocouple
-58 °F → 1832 °F
(-50 °C → 1000 °C)		 +/- (0.3% rdg + 2 °F),
+/- (0.3% rdg + 1 °C)
Duty cycle 0.1 % → 99.99 % – +/-(3 LSD / kHz + 3 LSD)
Specifications
Display: 4-4/5 digits 50,000 counts. Selectable stable mode 5-4/5 digits 500,000 counts for DC voltage 6 digits 999,999 counts for HZ
Polarity: Automatic
Update rate: 4-4/5 digits fast mode: 5 per second nominal; 5-4/5 digits stable mode: 1.25 Per second nominal;
42 Segments bar graph: 60 per second max
Power supply: Single alkaline 9V battery; neda1604a, jis6am6 or Iec6lf22
Power consumption: 6mA typical
Low battery: Below approx. 7V
Apo consumption: 55 µA typical

For complete specs please download the product datasheet under the “Resources” tab.

Includes: Amprobe AM-140-A True-rms Precision Digital Multimeter with PC Connection

  • True RMS (TRMS)
  • Measurements: Voltage up to 1000V AC/DC, Resistance, AC/DC Current, Frequency, Capacitance, Duty Cycle
  • Optical isolated PC interface capability



  • N/A
