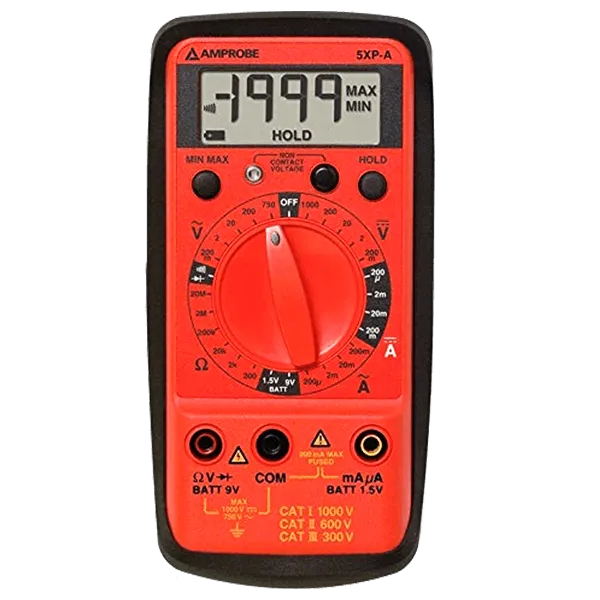

Model: Amprobe 5XP-A AC/DC Compact Digital Multimeter with VolTect trade
Amprobe 5XP-A AC/DC Compact Digital Multimeter provides superior features and accuracy in a smaller form factor. It's worldwide recognized as rugged and reliable. When you buy it you should find out the right place for the original product.
The Amprobe 5XP-A AC/DC has unique features such as VolTect non-response voltage detection and our exclusive Magne-Grip holster that frees both hands for court prosecution. The 5XP-A is the utter marginal for residential, advertisement and general troubleshooting applications.
Tools Bangladesh always provide the original product to engage all customers. So, just keep believing in us you never mistake the right product.
Key features: Amprobe 5XP-A AC/DC Compact Digital Multimeter with VolTect trade
- 27 ranges/10 functions
- Battery load test with 1.5 V and 9 V capabilities
- Data Hold
- Min/Max record minimum and maximum values
- VolTect™ non-contact voltage (NVC) detection
- Low battery indication
- Safety rated CAT II 600 V, CAT III 300 V
Specifications: Amprobe 5XP-A AC/DC Compact Digital Multimeter with VolTect trade
| FEATURE |
5XP-A |
| DC Voltage |
200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V |
| AC Voltage |
200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V |
| Current AC/DC |
200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA |
| Resistance |
200.0 Ω, 2.000 kΩ,
20.00 kΩ, 200.0 kΩ,
2.000 MΩ, 20.00 MΩ |
| Continuity beeper |
• |
| VolTect™ Non-Contact Voltage Detection |
70 VAC → 600 VAC (50 Hz → 60 Hz) |
| Capacitance |
– |
| Frequency |
– |
| Temperature |
– |
| Logic test |
– |
| Battery test |
1.5 V, 9 V |
| Specifications |
| DC Volts ranges: |
200 mV, 2 V, 20 V, 200 V, 600 V, Accuracy: ± (1.0 % rdg + 1 dgt) |
| AC Volts (45 Hz to 500 Hz) ranges: |
200 mV, 2 V, 20 V, 200 V, 600 V, Accuracy: ± (1.5 % rdg + 5 dgts) |
| Voltage resolution: |
100 µV |
| Voltage input impedance: |
10 MΩ |
| Overload protection: |
200 mV: 600 V dc or 600 V ac rms (3 minutes) All other ranges: 600 V dc or 600 V ac rms |
| DC Current ranges: |
200 µA, 2 mA, 20 mA, 200 mA, Accuracy: ± (1.5 % rdg + 1 dgt) |
| AC Current (45 Hz to 500 Hz) ranges: |
200 µA, 2 mA, 20 mA, 200 mA, Accuracy: ± (2.0 % rdg + 5 dgts) |
| Current resolution: |
0.1 µA |
| Input protection: |
315 mA/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on mA input |
| Burden voltage: |
300 mV max. (1 V max. on 200 mA range) |
| Resistance: |
200 Ω , 2 kΩ , 20 kΩ , 200 kΩ
Accuracy: ± (1.0 % rdg + 4 dgts) |
| Resistance: |
2 MΩ
Accuracy: ± (1.5 % rdg + 4 dgts) |
| Resistance: |
20 MΩ
Accuracy: ± (2.0 % rdg + 5 dgts) |
| Resistance resolution: |
100 mΩ |
| Open circuit voltage: |
0.3 V dc typical, (3.0 V dc on 200 Ω range) |
| Overload protection: |
600 V dc or 600 V ac rms |
| Continuity: audible indication: |
75 Ω ± 25 Ω, Response Time: 100 ms |
| Diode test current: |
1.0 mA (approximate) ±(1.5 % rdg + 3 dgts) |
| Diode test resolution: |
1 mV |
| Open circuit voltage: |
3.0 V dc typical |
| Non-ontact voltage indicator: |
Sense voltage 70 V to 600 V ac; beeper chirps and bright red LED on, works on all ranges |
| Battery test: |
1.5 V, 9 V Accuracy: ± (3.5 % rdg + 2 dgts) |
For complete specs please download the product datasheet under the “Resources” tab.
Includes: Amprobe 5XP-A AC/DC Compact Digital Multimeter with VolTect trade
- 27 ranges/10 functions
- Battery load test with 1.5 V and 9 V capabilities
- Data hold
- Min/Max record minimum and maximum values
- VolTect™ non-contact voltage (NVC) detection
- Low battery indication
- Safety rated CAT II 600 V, CAT III 300 V
Accessories: Amprobe 5XP-A AC/DC Compact Digital Multimeter with VolTect trade
- Carrying case,
- Magne-Grip™ holder with hanging strap,
- Users manual,
- Test leads
