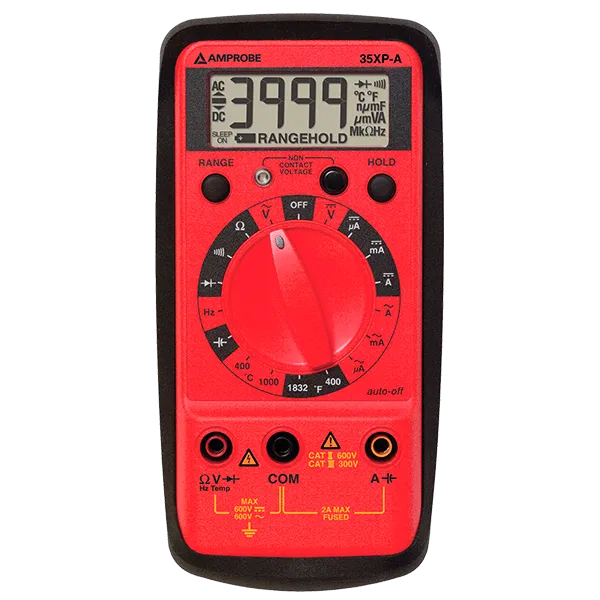

Model: Amprobe 35XP-A Digital Multimeter with Temperature
Amprobe 35XP-A Digital Multimeter with Temperature is a good performing buyThis measurement capability to 1000 °C/1832 °F with all including features that are reliable and trusted
Amprobe compact 35XP-A Digital Multimeter offers all the right features for HVAC and plant maintenance. It measures temperature, plus capacitance for a motor run/start test, and offers 0.1 µA resolution for flame sensor testing.
Tools Bangladesh offers "Amprobe 35XP-A Digital Multimeter" at the best price so why do you hand out it? Just order from us it will go to your doorstep on time.
Key Features: Amprobe 35XP-A Digital Multimeter with Temperature
- Temperature measurement capability to 1000 °C/1832 °F (type-K thermocouple included)
- 600 V AC/600 V DC – highest voltage rating in this class of meter
- Capacitance for motor run/start test
- 0.1 μA resolution for flame sensor testing
- Frequency to 1 MHz
- Resistance to 40 MΩ
- Data hold freezes display
- Magne-Grip™ Holster
- VolTect™ non-contact voltage detector
- Low battery indication
Specifications: Amprobe 35XP-A Digital Multimeter with Temperature
| FEATURE |
35XP-A |
| DC Voltage |
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V |
| AC Voltage |
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V |
| Current AC/DC |
400.0 µA, 4.000 µA, 40.00 mA, 400.0 mA, 2 A |
| Resistance |
40.00 kΩ, 400.0 kΩ, 4.000 MΩ. 40.00 MΩ |
| Continuity beeper |
✓ |
| VolTect™ Non-Contact Voltage Detection |
70 VAC → 600 VAC (50 Hz → 60 Hz) |
| Capacitance |
4.000 nF, 40.00 nF, 4.000 µF, 40.00 µF, 400.0 µF, 4.000 mF |
| Frequency |
4,000 kHz, 40.00 kHz, 400,0 kHz, 1 MHz |
| Temperature |
-4 °F → 1832 °F (-20 °C → 1000 °C) |
| Logic test |
– |
| Battery test |
– |
| Specifications |
| DC Volts range: |
400 mV, 4 V, 40 V, 400 V, 600 V
Accuracy: ± (0.5 % rdg + 1 dgts) |
| AC Volts (45 Hz to 500 Hz) range: |
400 mV (45 Hz to 100 Hz)
4 V, 40 V, 400 V, 600 V (45 Hz to 500Hz)
Accuracy: ± (1.5 % rdg + 5 dgts) |
| Voltage resolution: |
100 µV |
| Input impedance: |
400 mV: >100 MΩ ; 4 V: 10 MΩ ; 40 V to 600 V: 9.1 MΩ |
| Overload protection: |
600 V dc or 60 V ac rms |
| DC Current range: |
400 µA, 4000 µA, 40 mA, 400 mA ± (1.0 % rdg + 2 dgt) |
| DC Current range: |
2 A ± (2.0 % rdg + 3 dgts) |
| AC Current (45 Hz to 500 Hz) range: |
400 µA, 4000 µA, 40 mA, 400 mA ± (1.5 % rdg + 5 dgts) |
| AC Current (45 Hz to 500 Hz) range: |
2 A ± (2.5 % rdg + 5 dgts) |
| Current resolution: |
0.1 µA |
| Input protection: |
2 A/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on A input |
| Burden voltage: |
500 mV max. (2 V max. on 4 mA, 400 mA ranges) |
| Resistance: |
400 Ω , 4 kΩ , 40 kΩ , 400 kΩ , 4 MΩ ± (1.0 % rdg + 4 dgts) |
| Resistance: |
40 MΩ ± (2.0 % rdg + 5 dgts) |
| Resistance resolution: |
100 mΩ |
| Open circuit voltage: |
-0.45 V dc typical, (-1.2 V dc on 400 Ω range) |
| Overload protection: |
600 V dc or 600 V ac rms |
For complete specs please download the product datasheet under the “Resources” tab.
Includes: Amprobe 35XP-A Digital Multimeter with Temperature
- Temperature measurement capability to 1000 °C/1832 °F (Type K thermocouple included)
- 600 V ac/600 V dc – highest voltage rating in this class of meter
- Capacitance for motor run/start test
- Frequency to 1 MHz
- Resistance to 40 MΩ
- VolTect™ non-contact voltage detector
Accessories: Amprobe 35XP-A Digital Multimeter with Temperature
- Pair of standard test leads,
- carrying case,
- Magne-Grip™ holder with hanging strap,
- Temperature adapter,
- Type K thermocouple probe,
- 9 V battery (installed),
- User manual
