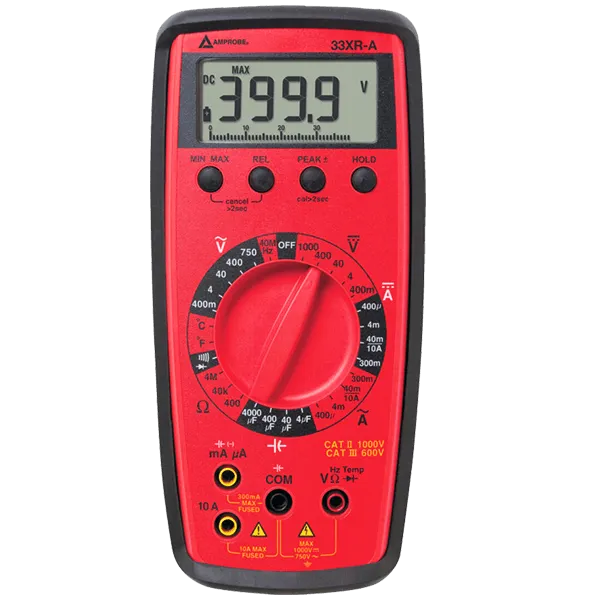

Amprobe 33XR-A Digital Multimeter with Temperature

Supplier: Iconic Engineering Limited

Out of Stock Ask for Price

Model: Amprobe 33XR-A Digital Multimeter with Temperature

Amprobe 33XR-A is a manual ranging digital multimeter with temperature and capacitance for field service technicians. It works properly to the test point accurately that is reliable and trusted.

Amprobe 33XR-A is a manual ranging digital multimeter with temperature and capacitance for field service technicians.

Tools Bangladesh offers it with the lowest price in Bangladesh. So, Why are spending your valued time, quickly inform us about your industry we can deliver on time for free delivery.

Features

Key Features: Amprobe 33XR-A Digital Multimeter with Temperature

Min/max, relative, peak and data hold
Auto power off to save battery life
Separate door for easy battery and fuse access
Magne-Grip™ Holster with magnetic hanging strap
Display: 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
Display update rate: 2/sec, nominal
Analog bar graph
Overrange indication
Operating temperature: 0 °C to 45 °C at < 70 % R.H.
Storage temperature: -20 °C to 60 °C,
Input warning tone when test leads are in wrong jack

Specifications

Specifications: Amprobe 33XR-A Digital Multimeter with Temperature

FEATURE	33XR-A
DC Voltage	400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
AC Voltage	400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
DC Current	400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
AC Current	400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
Resistance	400.0 O, 40.00 kO, 4.000 MO
Continuity	•
Diode	•
VolTect™ Non-Contact Voltage Detection	–
Capacitance	4.000 µF, 40.00 µF, 400.0 µF, 4000 µF
Frequency	4.000 kHz, 40.00 kHz, 400.0 kHz, 1 MHz
Temperature	1832 °F (1000 °C)
Duty cycle	–
Logic test	–
Inductance	–
dBm	–

Specifications
DC Voltage ranges:	400 mV, 4 V, 40 V, 400 V, 1000 V
DC Voltage accuracy:	all ranges: ± (0.7 % rdg + 1 dgt)
DC Voltage resolution:	100 µV
DC Voltage input impedance:	10 MO
AC Voltage (45 Hz to 500 Hz) ranges:	400 mV, 4 V, 40 V, 400 V, 750 V
AC Voltage (45 Hz to 500 Hz) accuracy:	4 V Range, 200 Hz to 500 Hz: ± (2.0 % rdg + 4 dgts)
AC Voltage (45 Hz to 500 Hz) accuracy:	All other ranges: ± (1.5 % rdg + 4 dgts)
AC Voltage (45 Hz to 500 Hz) resolution:	100 µV
AC Voltage (45 Hz to 500 Hz) input impedance:	10 MO
DC Current ranges:	400 µA, 4 mA, 40 mA, 300 mA, 10 A
DC Current accuracy:	400 µA to 300 mA ranges: ± (1.0 % rdg + 1 dgt)
DC Current accuracy:	10 A range: ± (2.0 % rdg + 3 dgts)
DC Current resolution:	0.1 µA
DC Current voltage burden:	400 µA range: 1 mV/µA, 4 mA range: 100 mV/1 mA, 40 mA range: 12 mV/1 mA,
DC Current voltage burden:	300 mA range: 4 mV/1 mA, 10 A range: 100 mV/1 A
AC Current (45 Hz to 500 Hz) ranges:	400 µA, 4 mA, 40 mA, 300 mA, 10 A
AC Current (45 Hz to 500 Hz) accuracy:	400 µA to 300 mA ranges: ± (1.5 % rdg + 4 dgts)
AC Current (45 Hz to 500 Hz) accuracy:	10 A range: ± (2.5 % rdg + 4 dgts)
AC Current resolution:	0.1 µA
AC Current voltage burden:	See DC Current
Resistance ranges:	400 O 40 kO 4 MO
Resistance accuracy:	400 Oand 40 kO ranges: ± (1.0 % rdg + 4 dgts)
Resistance accuracy:	4 MO range: ± (1.2 % rdg + 4 dgts)
Resistance resolution:	100 mO
