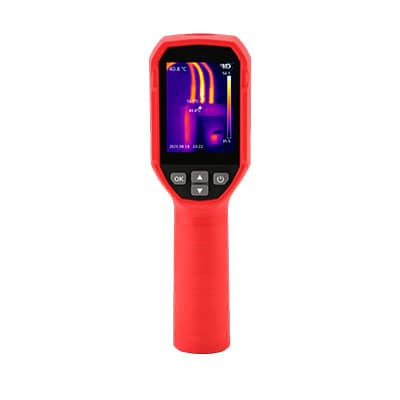

UTi712S Cost-effective Thermal Camera:
UTi712S Cost-effective Thermal Camera is an excellent tool for experts. UTi712S is a cost-effective and highly recommendable thermal camera with a quality build. Some special features include temperature compensation (which allows more accurate readings under different temperature environments), a laser pointer, and longer battery operation time (more than 8 hours). This rugged thermal camera has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.
Are you trying to find an excellent, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Key Features :
- 2.4” TFT Screen (320×240 Pixels)
- IR resolution: 120×90
- Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 6(White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava)
- Buzzer alarm
- Laser pointer
- LED flashlight
- PC software analysis
- Rechargeable Li-ion battery
- 1/4” tripod mounting hole
- IP54
- 2m drop-proof
Specifications:
| Technical Data |
| IR resolution (Pixels) |
120×90 |
| Display |
2.4” TFT LCD (320×240) |
| Field of view(FOV) |
50°×38° |
| Thermal sensitivity(NETD) |
≤60mK |
| Spatial resolution(IFOV) |
7.3mrad |
| Frame rate |
≤25Hz |
| Spectral range |
8~14µm |
| Focus |
Focus Free |
| Temperature measurement range |
-20℃~400℃ |
| Accuracy |
±2℃ or ±2% whichever is greater |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Colour palettes |
6
(White hot, Black hot, Ironbow, Rainbow HC, Rainbow, Lava) |
| Image modes |
Thermal |
| Hi/Lo temperature alarm |
Icon, LED flashlight, Buzzer |
| PC software analysis |
√ |
| Laser pointer |
√ |
| LED light |
√ |
| General Characteristics |
| Battery |
Fixed Li-ion battery (3.7V 2600mAh) |
| Battery operation time |
≥8 hours |
| USB |
Type-C |
| IP rating |
IP54 |
| Drop proof |
2m |
| Storage |
16GB Micro SD card |
| Image/Video storage format |
BMP |
| Certificates |
CE,UKCA,FCC,RoHS |
| Product net weight |
310g |
| Product size |
197mm×72mm×60mm |
| Packing Details |
| Standard accessories |
Hand strap, Micro SD card, Type-C USB cable, English manual, Documents download operation guide card |
| Standard individual packing |
Gift box |
| Standard Qty per carton |
5 |
| Standard carton size |
485mm×260mm×170mm |
| Standard carton G.W. |
3.2kg |
