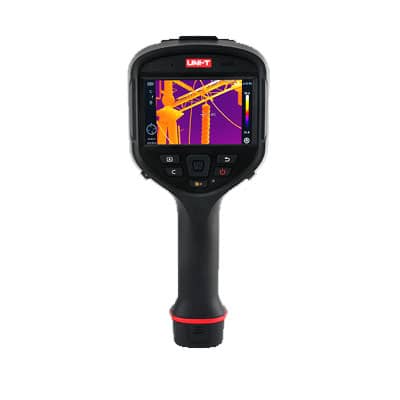

UTi640J Intelligent Thermal Camera:
UTi640J Intelligent Thermal Camera is a great tool for experts. It has a built-in high-sensitivity infrared detector with 640×480 pixels, a 13MP digital camera, and 5 focusing modes. The high-precision thermal camera designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic “hammer” design 30Hz infrared frame rate for fast and accurate access to more temperature data of moving targets.
Are you looking for a top-notch pair of Thermal Camera? Indeed, you are in the right position at this moment. Given that Tools Bangladesh is the sole company in Bangladesh offering testing supplies and tools. As a result, you may affordably get your desired tool from us in Bangladesh with the best shipping choices.
Key Features :
- 640×480 pixels IR resolution
- Super-resolution (upgraded to 1280×960)
- 13MP digital camera
- Multiple focusing modes (Manual / Automatic / Touch autofocus / Continuous autofocus)
- Interchangeable camera lens (Macro lens/ Wide-angle lens/Medium tele lens/Tele lens/High-temp lens)
- 20x magnification
- Video recording
- Wi-Fi live streaming
Specifications:
| Technical Data |
| Display |
4.3” LCD Touch (800×480) |
| IR resolution(Pixels) |
640×480 |
| Super-resolution |
√(1280×960) |
| Spectral range |
7.5~14μm |
| Pixel size |
12μm |
| Frame rate |
30Hz |
| Thermal sensitivity(NETD) |
≤40mK |
| Focus |
Manual / Automatic / Touch autofocus / Continuous autofocus |
| Lens recognition |
Automatic |
| Infrared lens |
Standard lens |
Marco lens (Optional) |
Wide-angle lens (Optional) |
Medium tele lens (Optional) |
Tele lens (Optional) |
High-temp lens (optional) |
| Lens focal length |
17.7mm |
16.2mm |
10.0mm |
29.0mm |
62.9mm |
/ |
| Field of view(FOV) |
25°×19° |
/ |
44°×34° |
15°×11° |
7°×5° |
25°×19° |
| Temperature measurement range |
-40℃~150℃, 0℃~650℃ (Automatic switch) |
| Accuracy |
±2℃ or ±2% |
| Functions |
| Image modes |
Thermal, Visual image, Fusion, PIP |
| On screen analyzer |
16 Points/16 Lines/16 Rectangles |
| Hi/Lo temperature alarm |
LCD animation, LED flashlight, Buzzer |
| Hi/Lo temperature tracking |
√ |
| Digital camera resolution |
13MP |
| Digital zoom |
1.1x~20x |
| Video recording |
√ |
| Voice recording |
√ |
| Wi-Fi / Bluetooth |
√ |
| Wi-Fi live streaming |
√ |
| Analysis software |
PC+APP |
| General Characteristics |
| Battery |
Recharable Li-ion battery pack |
| Operating time |
≥4 hours (with Wi-Fi off) |
| USB |
Type-C |
| Storage |
64GB Internal & 64GB Micro SD card |
| Image storage format |
Jpg |
| Video storage format |
MP4 & Irgd |
| Protection |
IP54 & 2m |
| Languages |
ZH_hans, ZH_hant, EN, FR, DE, ES, IT, RU, PL, KR, PT, TR, TH, NO, CZ, HU, JP, AR |
| Weight |
≤1.15KG (included standard lens & battery) |
| Dimension |
292mm×125mm×125mm |
