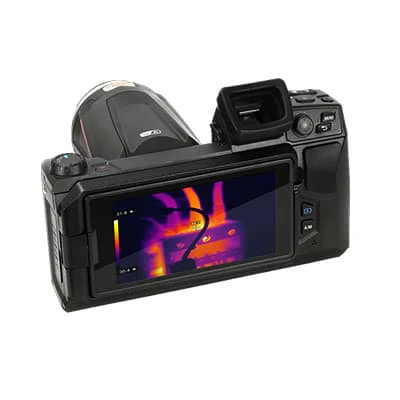

UTi640C Intelligent Pro-grade Thermal Camera:
UTi640 is the flagship model for the UNI-T brand. Like smartphones, it is specially designed for users who work in the infrared temperature measurement industry. UTi640C adopts infrared sensors with high sensitivity and resolution, which provide crystal clear infrared images along with higher temperature measurement range and accuracy. Other features include the Android operating system, a large display screen display, and a rotating lens structure.UTi640C can also synchronously collect visible and infrared images, and display key observation positions by PIP and MIF methods. At the same time, through the open Android platform application, it can be extended to a multi-purpose mobile infrared thermal image application platform. Giving users more outstanding visual effects and a convenient operation experience.
Are you trying to find a good, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Specifications:
| Technical Data |
| IR resolution (Pixels) |
640×480 |
| Display |
5” TFT LCD Touch (1280×720) |
| Field of view(FOV) |
24.6°×18.5° |
| Thermal sensitivity(NETD) |
≤30mk |
| Spatial resolution(IFOV) |
0.67mrad |
| Frame rate |
≤25Hz/9Hz |
| Spectral range |
7.5~14µm |
| Focus |
Electric/Automatic |
| Temperature measurement range |
-20℃~150℃,150℃~800 (standard lens)
800~2000℃ (optional lens) |
| Accuracy |
±2℃ or ±2% whichever is greater (standard lens)
±1℃ or ±1% whichever is greater (optional lens) |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Colour palettes |
10
(White hot, Lava, Ironbow, Hot iron, Medical, North pole, Rainbow1, Rainbow2, Black hot, Red) |
| Image modes |
Thermal, Visual image, Fusion, PIP |
| On-screen analyzer |
10 Points/5 Lines/5 Rectangles/5 Circles |
| Digital camera resolution |
5MP |
| Digital zoom |
1.0~10x continuous |
| Hi/Lo temperature alarm |
Icon,LED flashlight,Buzzer |
| Isotherm |
Above, Below |
| Software analysis |
PC |
| Video recording |
√ |
| Voice recording |
√ |
| Wi-Fi / Bluetooth |
√ |
| GPS |
√ |
| Laser pointer |
√ |
| General Characteristics |
| Battery |
Detachable Li-ion battery (11.1V 2900mAh) |
| Battery operation time |
≥ 4 hours |
| USB |
HDMI, Micro USB |
| IP rating |
IP54 |
| Storage |
16G Internal, 16GB SD card |
| Image/Video storage format |
Pic: JPEG; Video: irgd |
| Product net weight |
1350g |
| Product size |
206mm x145mm×135mm |
| Packing Details |
| Standard accessories |
Li-ion battery, Adapter, Adapter plug (5 pcs), 16GB SD Card, Shoulder strap, USB cable, HDMI cable, Ethernet cable, CD-ROM, User Manual, Quick operation manual, Parts list |
| Standard individual packing |
Toolbox, Gift box |
| Standard Qty per carton |
1 |
| Standard carton size |
480mm×370mm×235mm |
