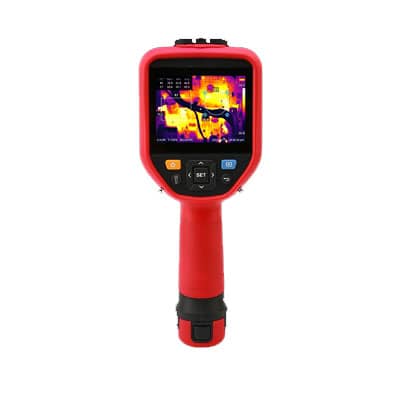

UTi384G Professional Enhanced Thermal Camera:
UTi384G is a professionally enhanced thermal camera that is specially designed for industrial use with a high IR resolution of 384×288 and a wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective distances and provide high-quality images. The 3.5’’ large IPS touch screen provides a more efficient and convenient operation experience for users. UTi384G also supports various outstanding functions: such as Wi-Fi, voice recording, video recording, laser pointer, on-screen analyzer, Isotherm, etc. They are perfect troubleshooting tools for many industrial applications.
Are you searching for an excellent, thermal camera? Yes, you are in the right place at the right time. Considering that the sole company in Bangladesh providing testing materials and equipment is Tools Bangladesh. Because of this, you may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest shipping options.
Key Features :
- 3.5″ IPS touchscreen (640×480)
- IR resolution:384×288
- Temperature measurement range: -20℃ to 550℃
- On screen analyzer:5 Points/5 Lines/5 Rectangles/5 Circles
- Digital camera resolution: 5MP
- Focus: Manual focus
- Digital zoom: 2x, 4x
- Wi-Fi and Bluetooth connection through Mobile App
- PC software: analysis and real-time image projection
- Video recording
- Voice recording
- Image modes: Thermal, Visual image, Fusion, PIP
- Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
- Isotherm: 5(Auto/Manual/Above/Below/Section)
- 5200mAh replaceable battery pack (Type-C rechargeable)
- IP54
- 2m drop-proof
Specifications :
| Technical Data |
| IR resolution (Pixels) |
384×288 |
| Display |
3.5‘’ Touch (640×480) |
| Field of view(FOV) |
42°×30° |
| Thermal sensitivity(NETD) |
≤40mK |
| Spatial resolution(IFOV) |
1.91mrad |
| Frame rate |
≤30Hz |
| Spectral range |
7.5~14µm |
| Focus |
Manual |
| Temperature measurement range |
-20℃~550℃ |
| Accuracy |
±2℃ or ±2% whichever is greater |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Color palettes |
7
(White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava) |
| Image modes |
Thermal,Visual image,Fusion,PIP |
| On screen analyzer |
5 Points/5 Lines/5 Rectangles/5 Circles |
| Digital camera resolution |
5MP |
| Digital zoom |
2x, 4x |
| Hi/Lo temperature alarm |
Icon |
| Isotherm |
Auto/Manual/Above/Below/Section |
| Software analysis |
PC+APP |
| Video recording |
√ |
| Voice recording |
√ |
| Wi-Fi / Bluetooth |
√/√ |
| Laser pointer |
√ |
| General Characteristics |
| Battery |
Detachable Li-ion battery pack(3.7V 5200mAh) |
| Battery operation time |
About 5 hours (with Wi-Fi off) |
| USB |
Type-C |
| IP rating |
IP54 |
| Drop proof |
2m |
| Storage |
8GB Internal
32GB External |
| Image/Video storage format |
pic: JPEG; video: MP4/irgd |
| Certificates |
CE,UKCA,FCC,RoHS |
| Product net weight |
880g |
| Product size |
261mm×104mm×97mm |
| Packing Details |
| Standard accessories |
Micro SD card, Type-C USB cable, Wrist strap, English manual, Li-ion battery pack×2, Documents download operation guide card |
| Standard individual packing |
Toolbox,Gift box |
| Standard Qty per carton |
1 |
| Standard carton size |
400mm×185mm×345mm |
| Standard carton G.W. |
4.2kg |
