HIOKI POWER MEASUREMENT MODULE M7103

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4154
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

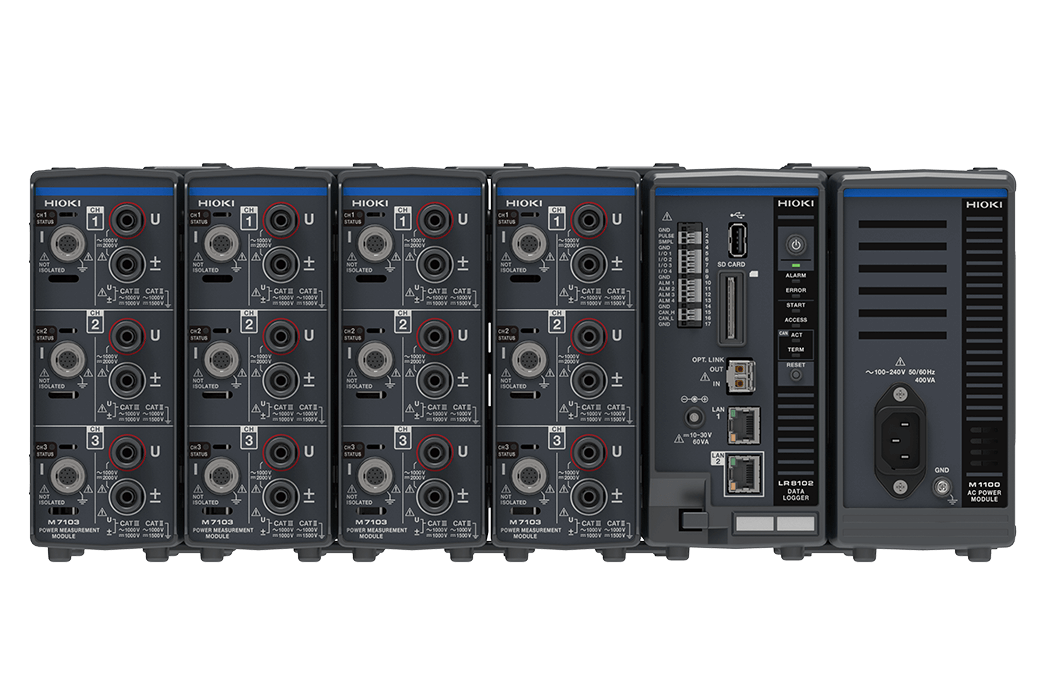

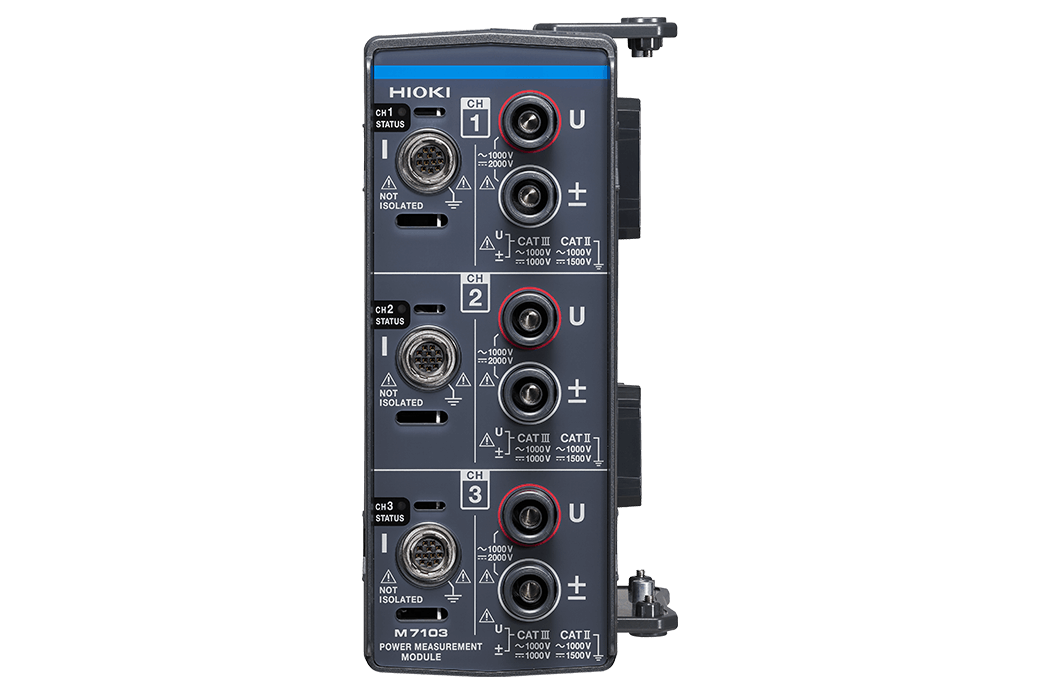

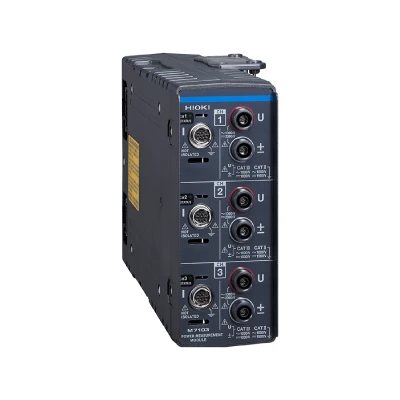

Introducing the M7103, a power measurement module that boasts power analyzer class accuracy. This product delivers exceptional scalability, high-speed data recording, and unparalleled stability in multi-channel power efficiency measurement. It is the optimal choice for embedded applications, offering valuable solutions for all your data recording needs. Discover the HIOKI POWER MEASUREMENT MODULE M7103 price in Bangladesh. High-precision power testing for advanced electrical analysis.

Key Features

  • Power analyzer class accuracy, DC/AC ±0.07%
  • 1500 V DC accuracy guarantee

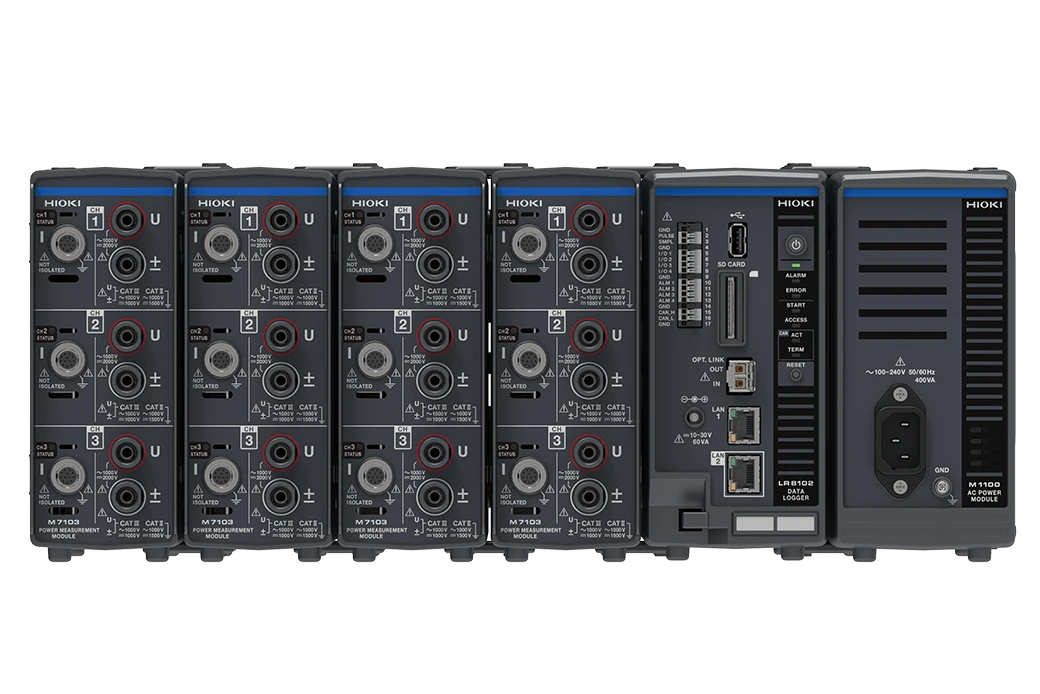

  • Up to 12 channels in a 4U unit that fits in a 19-inch rack
  • Up to 120 channels (10 sets of 12 channels)
  • Synchronization Source Sharing function for more stable efficiency measurement

General Specifications

Accuracy guaranteed: 1 year

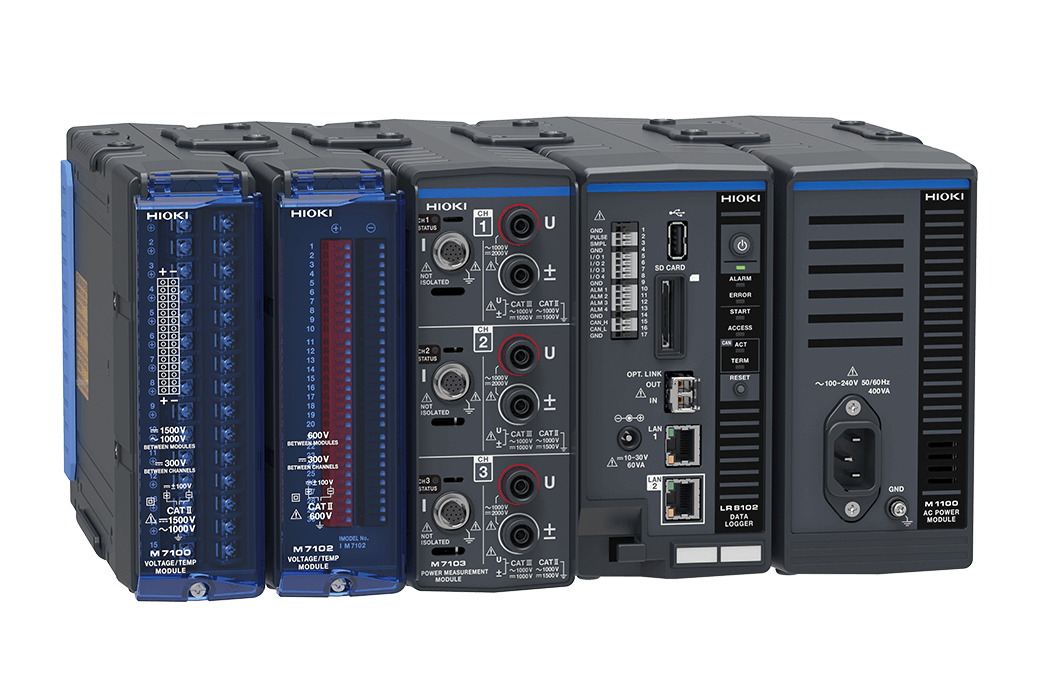

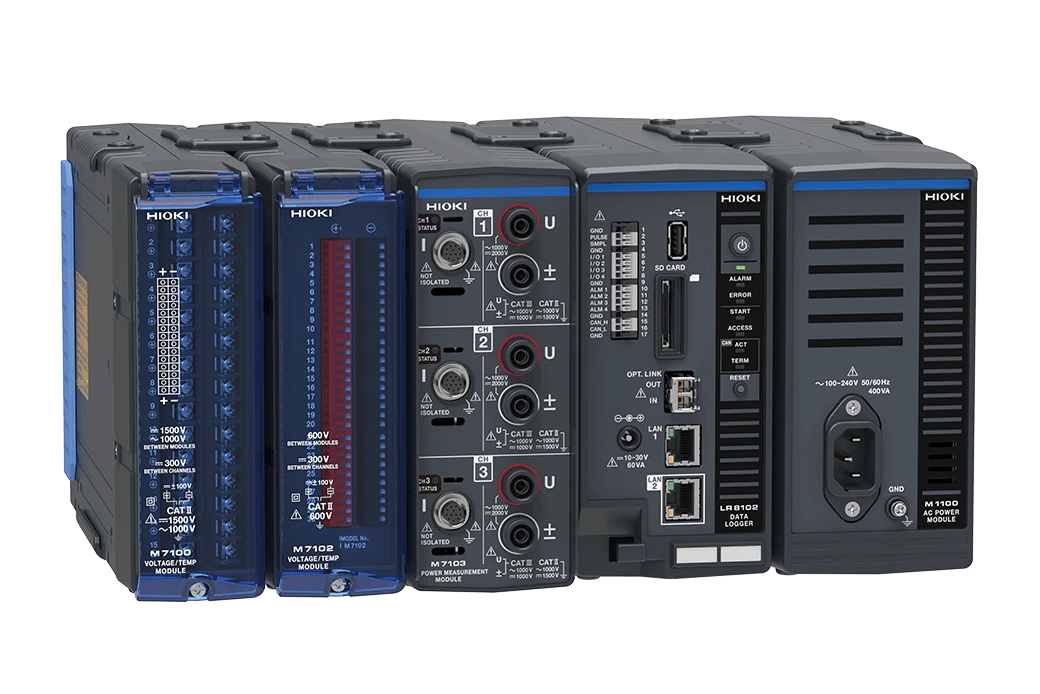

Compatible models Data Logger LR8101: Standard model
Data Logger LR8102: Advanced model
Operating temperature and humidity range 0°C to 40°C (32°F to 104°F), 80% RH or less (non-condensing)
Measurement lines 1-phase/2-wire (1P2W)
1-phase/3-wire (1P3W)
3-phase/3-wire (3P3W2M, 3V3A, 3P3W3M)
3-phase/4-wire (3P4W)
Number of power channels 3
Input terminal Voltage: plug-in terminals (safety terminals)
Current: dedicated connectors (ME15W)
Input type Voltage: isolated input, resistive potential divider
Current: isolated input via current sensors (voltage output)
Voltage ranges 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V
Current ranges 0.04 A range to 20 kA range (depends on the current sensor in use)
Crest factor 3 (relative to voltage and current range ratings), but 1.35 for 1500 V range
Input resistance, input capacitance Voltage inputs: 3 MΩ±30 kΩ, 1.5 pF typical
Current sensor inputs: 1 MΩ±50 kΩ
Maximum input voltage Voltage inputs: 1000 V AC, 2000 V DC
Current sensor inputs: 8 V, ±12 V peak
Maximum rated terminal-to-ground voltage 1000 V AC/DC, measurement category III, anticipated transient overvoltage 8000 V
1000 V AC / 1500 V DC, measurement category II, anticipated transient overvoltage 8000 V
Measurement method Simultaneous voltage and current digital sampling with zero-cross synchronized calculations
Sampling 500 kHz, 16 bits
Frequency band DC, 0.1 Hz to 100 kHz
Effective measurement range 1% of range to 110% of range
LPF (Low pass filter) Select from OFF/500 Hz/5 kHz
Measurement parameters Voltage (U), current (I), active power (P), apparent power (S), reactive power (Q), power actor (λ), phase angle (φ), voltage frequency (fU), current frequency (fI), voltage ripple ratio (Urf), current ripple ratio (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk)
Other measurements Frequency, integration, harmonic (IEC measurement mode, wide-band measurement mode)
Functions AUTO range, calculation, synchronization source sharing
Dimensions and weight Approx. 65W × 170H × 255D mm (2.6W × 6.7H × 10.0D in.) (excluding protruding parts)
Approx. 1.5 kg (3.3 lbs)
Included accessory Instruction Manual ×1
Included accessory Instruction Manual ×1
Included accessory Instruction Manual ×1

Introducing the M7103, a power measurement module that boasts power analyzer class accuracy. This product delivers exceptional scalability, high-speed data recording, and unparalleled stability in multi-channel power efficiency measurement. It is the optimal choice for embedded applications, offering valuable solutions for all your data recording needs. Discover the HIOKI POWER MEASUREMENT MODULE M7103 price in Bangladesh. High-precision power testing for advanced electrical analysis.

Key Features

  • Power analyzer class accuracy, DC/AC ±0.07%
  • 1500 V DC accuracy guarantee
  • Up to 12 channels in a 4U unit that fits in a 19-inch rack
  • Up to 120 channels (10 sets of 12 channels)
  • Synchronization Source Sharing function for more stable efficiency measurement

General Specifications

Accuracy guaranteed: 1 year

Compatible models Data Logger LR8101: Standard model
Data Logger LR8102: Advanced model
Operating temperature and humidity range 0°C to 40°C (32°F to 104°F), 80% RH or less (non-condensing)
Measurement lines 1-phase/2-wire (1P2W)
1-phase/3-wire (1P3W)
3-phase/3-wire (3P3W2M, 3V3A, 3P3W3M)
3-phase/4-wire (3P4W)
Number of power channels 3
Input terminal Voltage: plug-in terminals (safety terminals)
Current: dedicated connectors (ME15W)
Input type Voltage: isolated input, resistive potential divider
Current: isolated input via current sensors (voltage output)
Voltage ranges 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V
Current ranges 0.04 A range to 20 kA range (depends on the current sensor in use)
Crest factor 3 (relative to voltage and current range ratings), but 1.35 for 1500 V range
Input resistance, input capacitance Voltage inputs: 3 MΩ±30 kΩ, 1.5 pF typical
Current sensor inputs: 1 MΩ±50 kΩ
Maximum input voltage Voltage inputs: 1000 V AC, 2000 V DC
Current sensor inputs: 8 V, ±12 V peak
Maximum rated terminal-to-ground voltage 1000 V AC/DC, measurement category III, anticipated transient overvoltage 8000 V
1000 V AC / 1500 V DC, measurement category II, anticipated transient overvoltage 8000 V
Measurement method Simultaneous voltage and current digital sampling with zero-cross synchronized calculations
Sampling 500 kHz, 16 bits
Frequency band DC, 0.1 Hz to 100 kHz
Effective measurement range 1% of range to 110% of range
LPF (Low pass filter) Select from OFF/500 Hz/5 kHz
Measurement parameters Voltage (U), current (I), active power (P), apparent power (S), reactive power (Q), power actor (λ), phase angle (φ), voltage frequency (fU), current frequency (fI), voltage ripple ratio (Urf), current ripple ratio (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk)
Other measurements Frequency, integration, harmonic (IEC measurement mode, wide-band measurement mode)
Functions AUTO range, calculation, synchronization source sharing
Dimensions and weight Approx. 65W × 170H × 255D mm (2.6W × 6.7H × 10.0D in.) (excluding protruding parts)
Approx. 1.5 kg (3.3 lbs)
Included accessory Instruction Manual ×1

Included accessory Instruction Manual ×1

Included accessory Instruction Manual ×1
