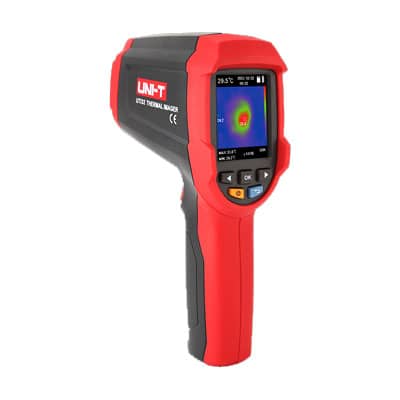

Name: UTi32 High Temperature Thermal Camera
Brand: Uni-T
Availability: InStock

UTi32 High-Temperature Thermal Camera:

UTi32 is a high-temperature thermal camera that is specially designed for higher-temperature applications， such as iron forging, glassware & porcelain production, petrochemical, metallurgy, etc. It can quickly detect the temperature from -20℃ to 1000℃ and auto tracking and alarm for high/low spots. UTi32 is a portable and lightweight thermal imager with 300000 pixels digital camera, with three image modes: thermal, visual image, and fusion, it also supports PC software analysis, and more than 7 hours of battery operation time. It is an affordable and reliable tool for high-temperature inspection.

Are you trying to find a good, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.

Key Features:

Temperature range: -20℃~1000℃ / -4℉ ~1832℉
IR resolution: 32×32
Display: 2.4″ IPS (480*320)
Digital camera resolution: 640×480
Image modes: Thermal, visual image, fusion
Auto tracking and alarm for high/low spots
Support PC software analysis
Portable and lightweight
More than 7 hours of battery operation time
With LED light

Specifications:

Technical Data
IR resolution (Pixels)	32×32
Display	2.4″ IPS (480×320)
Field of view(FOV)	30°×30°
Thermal sensitivity(NETD)	0.15℃
Frame rate	≤9Hz
Spectral range	8~14µm
Focus	Focus free
Temperature measurement range	-20℃ ~ 1000℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	3 (Ironbow, Rainbow, Black Hot)
Image modes	Thermal, Visual image, Fusion
Digital camera resolution	640×480
Hi/Lo temperature alarm	Icon
Software analysis	PC
General Characteristics
Battery	Fixed Li-ion battery (3.7V 2600mAh)
Battery operation time	≥7 hours
USB	Type-C
Storage	16G Mirco SD card
Image/Video storage format	BMP
Certificates	CE, UKCA, FCC, RoHS
Product net weight	301g
Product size	205mmx124mmx65mm
Packing Details
Standard accessories	Micro SD card, Type-C USB cable, English manual, Documents Download Operation Guide
Standard individual packing	Gift box
Standard Qty per carton	5
Standard carton size	500mm×275mm×190mm
Standard carton G.W.	4Kg
