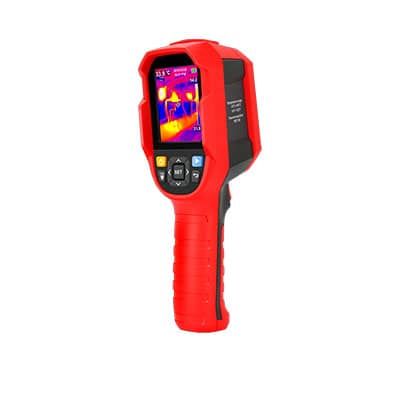

UTi165A (Discontinued) Heavy-Duty Thermal Camera:
UTi165A is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance, with 160×120 pixels IR resolution which can automatically track the objective’s temperature from -10℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications.
Are you trying to find an excellent, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Key Features :
- Durable and user-friendly
- 8” TFT display screen (320×240 Pixels)
- IR resolution: 160×120
- Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 5(White hot, Red hot, Ice blue, Rainbow, Ironbow)
- LED flashlight
- PC software analysis
- Rechargeable Li-ion battery
- 1/4” tripod mounting hole
- IP65
- 2m drop-proof
Specifications:
| Technical Data |
| IR resolution (Pixels) |
160×120 |
| Display |
2.8” TFT LCD (320×240) |
| Field of view(FOV) |
56°×42° |
| Thermal sensitivity(NETD) |
≤50mk |
| Spatial resolution(IFOV) |
6.1mrad |
| Frame rate |
≤9Hz |
| Spectral range |
8~14µm |
| Focus |
Focus free |
| Temperature measurement range |
-10℃~400℃ |
| Accuracy |
±2℃ or ±2% whichever is greater |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Color palettes |
5
(White hot, Red hot, Ice blue, Rainbow, Ironbow) |
| Image modes |
Thermal |
| Hi/Lo temperature alarm |
Icon,LED flashlight |
| PC software analysis |
√ |
| General Characteristics |
| Battery |
Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time |
≥ 6 hours |
| USB |
Type-C |
| IP rating |
IP65 |
| Drop proof |
2m |
| Storage |
Up to 32GB Micro SD card |
| Image/Video storage format |
BMP |
| Certificates |
CE,FCC,RoHS |
| Product net weight |
490g |
| Product size |
236mm×75.5mm×86mm |
| Packing Details |
| Standard accessories |
Micro SD card, Type-C USB cable, Adapter, English manual,Documents download operation guide card |
| Standard individual packing |
Gift box |
| Standard Qty per carton |
10 |
| Standard carton size |
500mm×315mm×295mm |
| Standard carton G.W. |
10.1kg |
