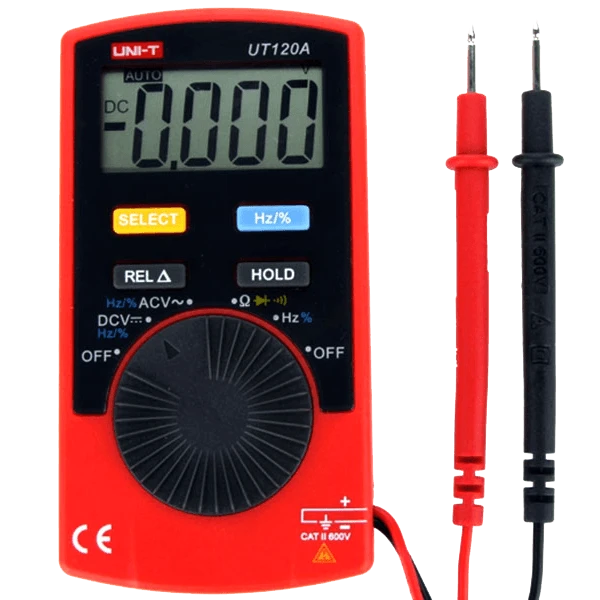

UNI-T UT120A Pocket Size Type Digital Multimeter is an ideal device for all-round electrical testing. It is capable of measuring AC and DC voltages of up to 600 volts in four measurement ranges, and of measuring AC and DC currents of up to 400mA in four measurement ranges.
Key Features: Uni T UT 120A Digital Multimeter
- Display Count :--** 4000
- Auto Range:--** v
- Duty Cycle :0.1%~99.9% **v
- Diode:--** v
- Auto Power Off : Around 30 Minutes** v
- Continuity Buzzer:--** v
- Low Battery Indication: =2.4V **v
- Data Hold:--** v
- Relative Mode:--** v
- Input Impedance for DCV: Around 10MO **v
- General Characteristic:
- Power :3V Battery(CR2032)
- LCD Size: 43mm X 22mm
- Product Color : Red and Grey
- Product Net Weight: 76g
- Product Size: 110mm X 58.2mm X 10.8mm
- Standard Accessories: Battery, Carrying Case
- Standard Individual Packing: Blister, English Manual
- Standard Quantity Per Carton: 90 PCs
- Standard Carton Measurement :528mm X 323mm X 400mm (0.068 CBM Per Export Carton)
- Standard Carton Gross Weight: 13.5 Kg
Specifications : Uni T UT 120A Digital Multimeter
| Specifications |
Range |
Best Accuracy |
| Model |
|
UT120A |
| DC Voltage (V) |
4V/40V/400V/600V |
±(0.8%+3) |
| AC Voltage (V) |
4V/40V/400V/600V |
±(1.2%+3) |
| Resistance (Ω) |
400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ |
±(1%+2) |
| Frequency (Hz) |
99.99Hz~99.99KHz |
±(0.5%+3) |
| Features |
| Display Count |
|
4000 |
| Auto Range |
|
√ |
| Duty Cycle |
0.1%~99.9% |
√ |
| Diode |
|
√ |
| Auto Power Off |
Around 30 Minutes |
√ |
| Continuity Buzzer |
|
√ |
| Low Battery Indication |
≤2.4V |
√ |
| Data Hold |
|
√ |
| Relative Mode |
|
√ |
| Input Impedance for DCV |
Around 10MΩ |
√ |
| General Characteristic |
| Power |
3V Battery(CR2032) |
| LCD Size |
43mm X 22mm |
| Product Color |
Red and Grey |
| Product Net Weight |
76g |
| Product Size |
110mm X 58.2mm X 10.8mm |
| Standard Accessories |
Battery,Carrying Case |
| Standard Individual Packing |
Blister, English Manual |
| Standard Quantity Per Carton |
90 PCs |
| Standard Carton Measurement |
528mm X 323mm X 400mm (0.068 CBM Per Export Carton) |
| Standard Carton Gross Weight |
13.5 Kg |
