Name: Sanwa DCL1200R Clamp Meter
Brand: Sanwa
Availability: OutOfStock

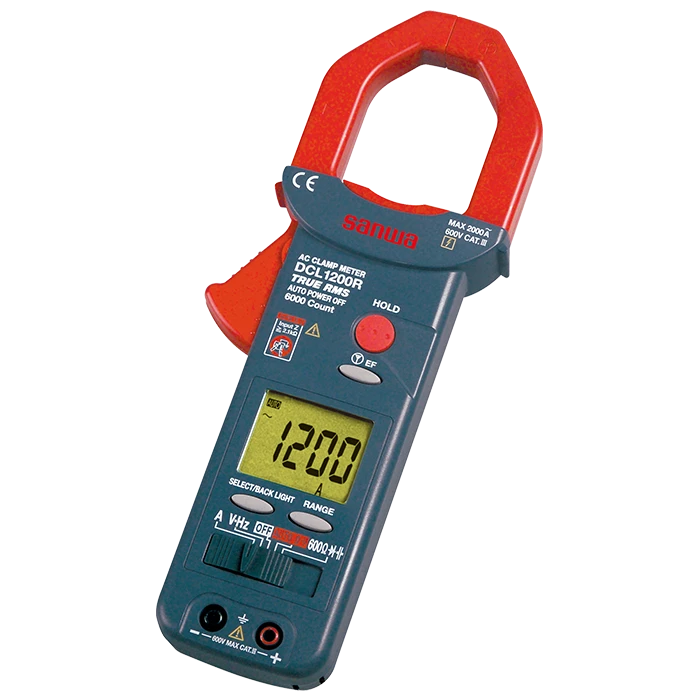

Sanwa DCL1200R Clamp Meter

Looking for a high-precision clamp meter for your electrical tasks? The Sanwa DCL1200R Clamp Meter is your ultimate choice. Designed for professionals and DIY enthusiasts alike, this advanced meter combines accuracy, durability, and ease of use in one compact device. Whether measuring AC/DC current, voltage, or resistance, the DCL1200R ensures precise readings every time. Its ergonomic design allows comfortable handling during prolonged usage, while the clear LCD display makes reading values easy even in low-light conditions.

Equipped with enhanced safety features, the Sanwa DCL1200R provides reliable protection for both the user and the device. With its quick response time and wide measurement range, it is perfect for troubleshooting electrical circuits, checking appliances, or performing industrial inspections. The meter also includes a data hold function, making it easier to record and analyze results on the spot.

At Tools Bangladesh, we bring you the genuine Sanwa DCL1200R Clamp Meter at competitive prices. Our customers can now get the Sanwa DCL1200R Clamp Meter Price in Bangladesh with fast delivery and trusted after-sales support. Whether you are a professional electrician or a technical enthusiast, this clamp meter is a must-have tool for your toolkit.

Why choose Tools Bangladesh:

Authentic Sanwa products with warranty assurance
Quick delivery across Bangladesh
Friendly customer support for all your queries
Competitive pricing for both bulk and individual orders

Upgrade your electrical toolkit today with the Sanwa DCL1200R Clamp Meter from Tools Bangladesh and experience precision, reliability, and safety like never before. Check out our store to get the best Sanwa DCL1200R Clamp Meter Price in Bangladesh now!

Key Features

Lightweight approx. 290g
Large LCD with backlight
Easy to use large size data hold button
Non-contact voltage detection function
Auto V/Ω detection

Specifications

Function	Measuring range	Best accuracy	Resolution
ACA	400/1200A	±(1.7%+5)	0.1A
DCV	6/60/600V	±(0.7%+3)	0.001V
ACV	6/60/600V	±(1.7%+5)	0.001V
Auto resistance	6k/60k/600k/6MΩ	±(1.2%+4)	1Ω
Resistance	600Ω	±(2.2%+8)	0.1Ω
Frequency	9.999/99.99/9.999k/30kHz	±(0.6%+4)	0.001Hz
Capacitance	100n/1000n/10μ/100μ/2000μF	±(3.7%+5)	0.1nF
Continuity	Buzzer sounds at between 0Ω and 155Ω (±145Ω) Open voltage: approx. 0.4V
Diode test	Open voltage: approx. 1.6V
Voltage detection	Buzzer sounds and "-" is shown on LCD. Input sensitivity: approx. 20V or over (50/60Hz)

Sampling rate	5 times/sec.
Bandwidth	ACA 50/60Hz ACV 50-500Hz
Display	6000
Clamp diameter/Conductor size	Φ42mm/20×54mm
Battery	R03×2
Battery life	Approx. 90 hrs. at DCV (Alkaline battery/Backlight off)
Size/Mass	H238×W95×D45mm/Approx. 290g
Safety standards	IEC61010 CAT.Ⅲ 600V
