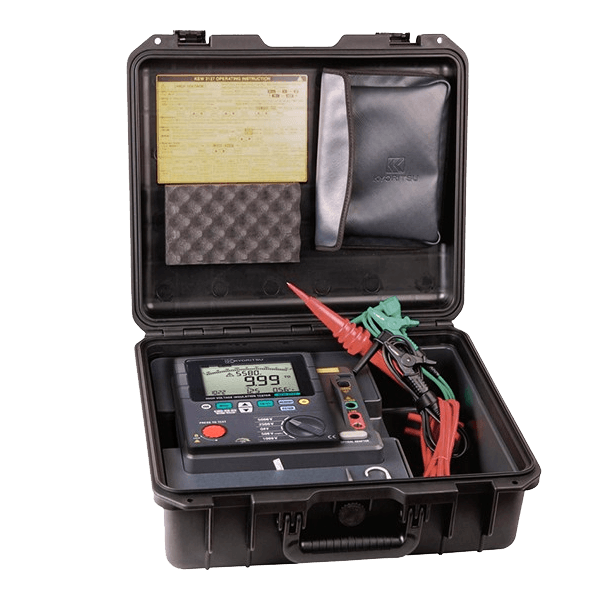

Name: Kyoritsu 3127 Digital High Voltage 5kV Insulation Resistance Tester
Brand: Kyoritsu
Availability: InStock

Shop	:	Tools Bangladesh 1
Product ID	:	290
Brand	:	Kyoritsu
Availability	:	In Stock
Price BDT	:	0.00 Taka
Reviews	:
Share	:

Add To Cart

Customer Support
+8801965656380
Cash One Delivery
Pay after getting the product on hand
Warranty
1 Year warranty by manufacturer
Secured Payment Method
Your cart is always secure to shop
Easy Return Policy
7 days return without physical defect.

The Kyoritsu 3127 is a professional level diagnostic 5kV digital insulation resistance tester, designed for high-end testing of motors, transformers, switchgear and other equipment where a high voltage insulation test is required.

Not only does the Kyoritsu 3127 perform standard insulation resistance tests with a voltages from 250V up to 5kV, but it also can undertake a range of diagnostic insulation tests, including polarisat

Key Features: Kyoritsu 3127 Digital High Voltage 5kV Insulation Resistance Tester

Insulation Resistance up to 10 Tera-Ohms
Wide test voltage from 250V to 5,000V
Range of Diagnostic Insulation Tests (IR, PI, DAR, DD, SV, RAMP)
Breakdown and Burn Modes
Capacitance and Leakage Current
Memory and Logging Functions
Large backlit display with bar graph indication
High 5mA short circuit test current for fast measurement
Inbuilt low pass filter for use in electrically noisy environments
Wireless communication by Bluetooth for transferring and showing real-time data to PC and Android mobile devices
Robust field case and design for field use with an IP65 rating (with the lid closed)
Powered by a rechargeable battery
The safety rating of CATIV 600V
Excellent performance to price ratio

Specifications: Kyoritsu 3127 Digital High Voltage 5kV Insulation Resistance Tester

Insulation resistance

Test voltage		250V (*1)	500V	1000V	2500V	5000V
Max measurement value		9.99GΩ	99.9GΩ	199GΩ	999GΩ	9.99TΩ
Accuracy		0.0 - 99.9MΩ ±5%rdg±3dgt	0.0 - 999MΩ ±5%rdg±3dgt	0.0 - 1.99GΩ ±5%rdg±3dgt	0.0 - 99.9GΩ ±5%rdg±3dgt	0.0 - 99.9GΩ ±5%rdg±3dgt
Accuracy		0.1G - 9.99GΩ ±20%rdg	1G - 99.9GΩ ±20%rdg	2G - 199GΩ ±20%rdg	100G - 999GΩ ±20%rdg	0.1T - 9.99TΩ ±20%rdg
Short circuit current		Max 5.0mA
Output voltage
	Accuracy	-10 - +10%	-10 - +20%	0 - +20%
	Variable	-			-20% - 0% (5% step)
	Monitor	±10%rdg±20V

Voltage measurement

Measuring range	AC: 30 - 600V (50/60Hz), DC: ±30 - ±600V
Accuracy	±2%rdg±3dgt

Current measurement

Measuring range	0.00nA - 5.50mA
Accuracy	±10%rdg (*2)

Capacitance measurement

Measuring range	5.0nF - 50.0µF, 5.0nF - 25.0µF (5000V)
Accuracy	±5%rdg±5dgt

General

Applicable standards	IEC 61010-1, 61010-2-030 CAT Ⅳ 600V Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2
Power source	Rechargeable Battery (Lead-acid Battery) 12V (*3) Charging power: DC 15VA MAX
communication interface	Bluetooth: Ver2.1 + EDR Class2, USB: Ver1.1
Dimensions	208 (L) × 225 (W) × 130 (D) mm 380 (L) × 430 (W) × 154 (D) mm (Hard case)
Weight	3127: 4kg Approx. (including battery), Total: 8kg Approx. (including Accessories)

Includes: Kyoritsu 3127 Digital High Voltage 5kV Insulation Resistance Tester

Kyoritsu 3127 Digital High Voltage 5kV Insulation Resistance Tester

Accessories: Kyoritsu 3127 Digital High Voltage 5kV Insulation Resistance Tester

Included Accessories	7165A (Line probe), 7224A (Earth cord), 7225A (Guard cord), 8019 (Hook type prod), 8327EU (Power adaptor 15V/1A), 9171 (Hard case), Instruction manual
Optional Accessories	7168A (Line probe with alligator clip: 3m), 7253 (Longer line probe with alligator clip: 15m), 8258 (USB communication set), 8302 (Adaptor for recorder 1mV/1µA)
