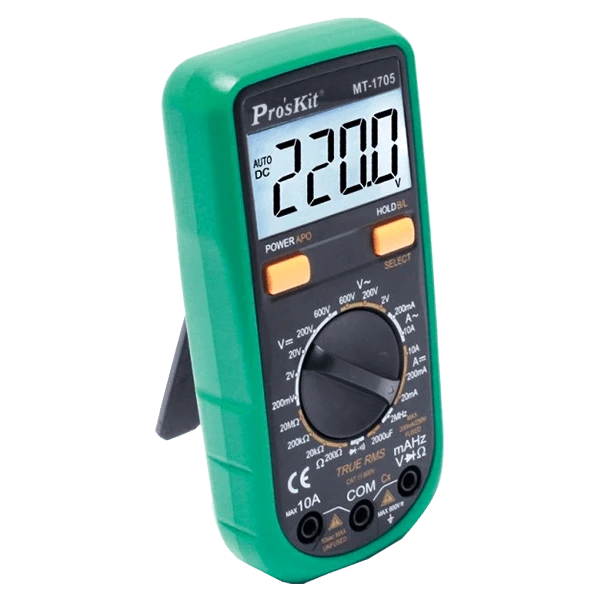

MT-1705 3 1/2 Compact DigitalMultimeter comes with 5% best accuracy. The most important things about Proskit MT-1705 3 1/2 Compact DigitalMultimeter that always provide the best result in any environment.
We offer the reliable Proskit MT-1705 3 1/2 Compact DigitalMultimeter at a very reasonable price. Not only we provide the best Proskit DigitalMultimeter but also we always provide support for all of our customers. Keep it very simple and get the best Proskit DigitalMultimeter from us through Tools Bangladesh.
Key Features: MT-1705 3 1/2 Compact DigitalMultimeter
- 3 1/2 digits 1999 counts.
- 5% best accuracy.
- CAT III 600V safety rated.
- Auto polarity indication.
- AC True-RMS for accurate measurements.
- Extra function: continuity with beeper, diode test, data hold, auto power-off, low battery indication, overload indication, LCD backlight.
- Frequency and capacitance are auto range.
- Ideal for a wide variety of electrical and electronic testing applications.
Specifications: MT-1705 3 1/2 Compact DigitalMultimeter
| DC Voltage (V) | 200mV/2V/20V/200V±(0.5%+3d) ,600V±(1.0%+10d) |
| AC Voltage (V) True-RMS |
40Hz-200Hz and 200Hz-1kHz sine and triangular wave: 2V/200V±(0.8%+5d), 600V±(1.2%+10d) |
| 200Hz-1kHz other wave: 2V/200V/600V±(8.0%+15d) | |
| DC Current (A) | 20mA/200mA±(1.2%+8d),10A±(2.0%+5d) |
| AC Current (A) True-RMS |
40Hz-200Hz and 200Hz-1kHz Sine and triangular wave: 200mA±(1.5%+15d),10A±(3.0%+10d) |
| 200Hz-1kHz Other wave: 200mA/10A±(8.0%+15d) | |
| Resistance (Ω) | 200±(0.8%+5d), 20K/200K±(0.8%+3d), 20M±(1.0%+25d) |
| Frequency (Hz) | 10/100/1k/10k/100k/2M Hz±(1.0%+10d) |
| Capacitance (F) | 20nF/200nF/2uF±(3.5%+20d), 20uF/200uF/2000uF±(5.0%+10d) |
| Power source | 3V(1.5VAAA×2) (Not included) |
| Size (mm) | 150×73.5×35 mm |
| Individual Packing | 150×73.5×35 mm Individual Packing |
Includes: MT-1705 3 1/2 Compact DigitalMultimeter
- MT-1705 3 1/2 Compact DigitalMultimeter
- N/A
