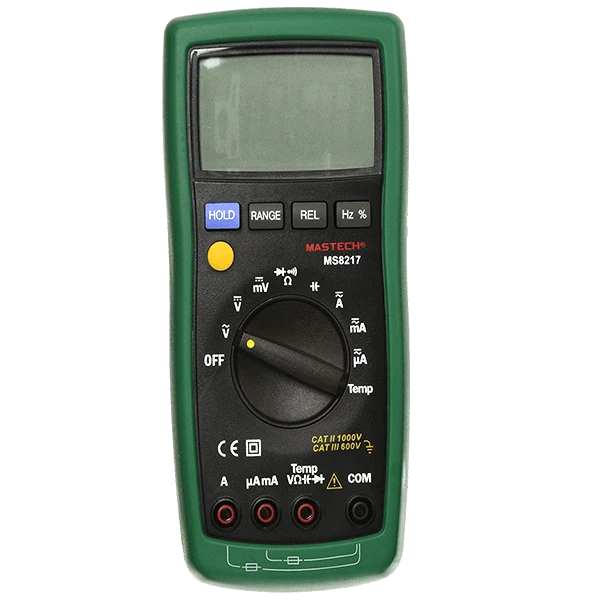

Mastech MS8217 Digital Multimeter

Supplier: TMI Biotech Corporation

Out of Stock Ask for Price

MASTECH MS8217 Digital multimeter with wide temperature range provides measuring of pulse ratio, temperature, capacity and frequency. The device equipped with illuminated 3999 counts display. Automatic power off.

MS8217 Digital Multimeter used in today\'s world recognized "Santoprene" (Santoprene TPE)

material into a second injection two, not only inside the instrument using SMT technology,

and the first multi-layer printed circuit boards, make the instrument more reliable and

Features

Features: Mastech MS8217 Digital Multimeter

Data hold function
Autorange and manual ranging mode
Relative measurement mode
Test AC/DC voltage, AC/DC current, resistance, capacitance, frequency and duty cycle
K-type thermocouple contact temperature measurement
Diode test and continuity check

Specifications

Specifications: Mastech MS8217 Digital Multimeter

Environment conditions: 1000V CAT. II and 600V CAT. III
Pollution degree: 2
Altitude: <2000m
Operating temperature: 0 to 40 Centigrade, 32 to 122 Fahrenheit(<80% RH, <10 Centigrade non-condensing)
Storage temperature: -10 to 60 Centigrade, 14 to 140 Fahrenheit(<70% RH, battery removed)
Temperature Coefficient: 0.1(specified accuracy)/Centigrade (<18 centigrade="" or="">28 Centigrade)
Voltage between terminals and earth ground: 1000V AC rms or 1000V DC
Sample Rate: 3 times/sec for digital data
Display: 3 3/4 digits LCD display
Power source: 3*1.5V AAA battery (not included)
Dimensions: 185*87*53mm
