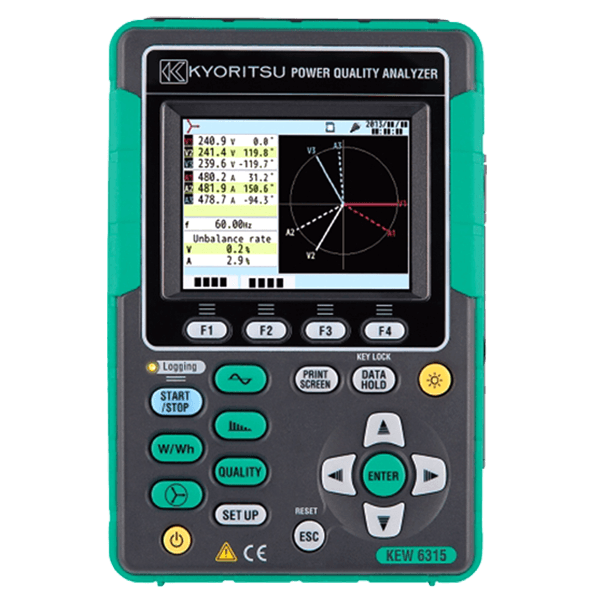

Kyoritsu 6315 is a sufficiently featured facility mood analyzer, competent in recording a wide range of facility character parameters concerning both single and three-phase electrical networks.
In colleague taking place to both current and voltage, the Kyoritsu 6315 can plus function and wedding album phase angle, harmonics, apparent expertise, lithe gift, reactive capacity, nimble liveliness, apparent energy, reactive sparkle, gaining factor, inrush current, swells, dips, interruptions, transients and on peak of voltages and afterward capacitance calculations for proficiency factor correction units.
Key Features: Kyoritsu KEW 6315 Power Quality Analyzer
• Simultaneous Power & Power quality measurements
• Helpful support functions
• Measurement with high accuracy
• Remote monitoring on PC and Android device
• Various Clamp Current Sensors
• Energy consumption check on site
• IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V
Specifications: Kyoritsu KEW 6315 Power Quality Analyzer
| Applicable standards |
IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V Pollution degree 2
IEC 61010-2-030, IEC 61010-031, IEC 61326, EN 50160
IEC 61000-4-30 Class S, IEC 61000-4-15, IEC 61000-4-7 |
| Temperature and humidity range |
23±5ºC, less than 85% RH (without condensation) |
| Operating temperature & humidity range |
0 - +45ºC, less than 85% RH (without condensation) |
| Storage temperature & humidity range |
-20 - +60ºC, less than 85% RH (without condensation) |
| Power supply (AC Line) |
AC100 - 240V / 50 - 60Hz / 7VA max |
| Power supply (DC battery) |
Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6
Battery life approx. 3h (LR6, Backlight OFF) |
| Dimensions |
175(L) × 120(W) × 68(D) mm |
| Weight |
Approx. 900g |
| Included Accessories |
7141B (Voltage test lead)
7170 (Power cord)
7219 (USB cable)
8326-02 (SD card 2GB)
9125 (Carrying case for KEW 6315)
9135 (Carrying case for KEW 6315-03)
Input terminal plate × 6, KEW Windows for KEW 6315 (software),
Quick manual, Alkaline size AA battery (LR6) × 6 |
| Optional Accessories |
8124, 8125, 8126, 8127, 8128 (Load current clamp sensor)
8129, 8130, 8133 (Flexible clamp sensor)
8146, 8147, 8148 (Leakage and Load current clamp sensor)
8312 (Power supply adaptor)
9132 (Magnetc carrying case) |
