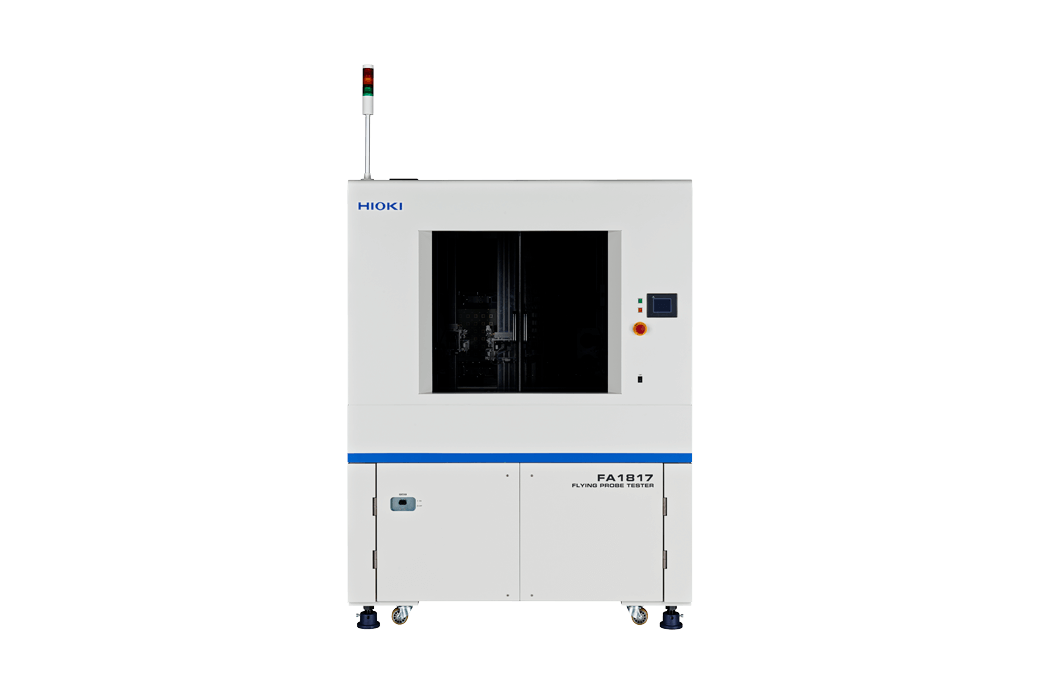

HIOKI FA1817 FLYING PROBE TESTER

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4498
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

The FA1817 is a fixtureless, dual-sided, bare board tester that provides superior cost performance and quick inspection yield thanks to advanced probe movement technology. Using a total of four arms, two in front and two in back, it is capable of simultaneously testing both sides of the board, provides open via detection via low resistance testing.

Never Miss Out on Latent Defects on High Density Printed Wiring Boards

With a dedicated board and proprietary 4-wire probes, you can now quickly and accurately detect minute resistances characteristic of open vias. To measure high insulation resistance, use the newly developed 100GΩ/250V super megohm board that minimizes stress from high applied voltage to deliver damage-free, rapid results. In addition, the built-in “Process Analyzer” lets you batch load accumulated inspection results to easily create statistical reports out of the data. Present data trends and view histograms from the results captured with each inspection step, make distribution maps, and draw other charts to visually data graphically in order to analyze defects and provide feedback to upstream design and manufacturing processes, ultimately helping to improve the quality and yield of PWBs.

Key Features

  • Optimization of probe movement reduces inspection time by up to 20%
  • Reduce probe marks in combination with the latest probes
  • Latent defect detection using newly developed statistical processing software

Key Features

  • Optimization of probe movement reduces inspection time by up to 20%
  • Reduce probe marks in combination with the latest probes
  • Latent defect detection using newly developed statistical processing software

Specifications Overview

Number of arms 4 (front × 2, rear × 2)
Compatible probes 1172 series, CP1072 series
Number of test steps 999,999 steps
Test parameters and measurement ranges Resistance measurement : 40.00 μΩ to 40.00 MΩ
　 Insulation measurement : 1.000 kΩ to 100.0 GΩ
　 Capacitance measurement : 100.0 fF to 10.00 μF
　 Leakage current measurement : 1.000 μA to 10.00 mA
　 High-voltage resistance measurement : 1.000 kΩ to 100.0 GΩ
　 Capacitor insulation measurement : 1.000 kΩ to 10.00 MΩ
　 Open measurement : 4.000 Ω to 4.000 MΩ
　 Short measurement : 400.0 mΩ to 40.00 kΩ
Judgment range -99.9% to +999.9% or absolute value
Minimum pad pitch 45 μm (with CP1075-09)
Minimum pad size 15 μm (with CP1075-09)
Measurement speed Max. 67 points/sec. (0.15 mm movements, 4-arm simultaneous probing, capacitance measurement)
Testable boards Standard specification: 50 mm (1.97 in) W × 50 mm (1.97 in) H to 610 mm (24.02 in) W × 510 mm (20.08 in) H, Thickness 1.0 mm (0.04 in) to 3.2 mm (0.13 in)
Pneumatic board clamp (option): 50 mm (1.97 in) W × 70 mm (2.76 in) H to 610 mm (24.02 in) W × 510 mm (20.08 in) H, Thickness: 0.6 mm (0.02 in) to 6.0 mm (0.24 in)
Maximum testable area 604 mm (23.78 in) W × 504 mm (19.84 in) H
Power supply 200 V, 220 V, 230 V, 240 V AC single-phase (specify at time of order),
50 Hz/ 60 Hz, Maximum power consumption: 3 kVA
Dimensions and mass 1485 mm (58.46 in) W × 1950 mm (76.77 in) H × 800 mm (31.50 in) D, (excluding protruding parts), 1070 kg (37742.5 oz)

The FA1817 is a fixtureless, dual-sided, bare board tester that provides superior cost performance and quick inspection yield thanks to advanced probe movement technology. Using a total of four arms, two in front and two in back, it is capable of simultaneously testing both sides of the board, provides open via detection via low resistance testing.

Never Miss Out on Latent Defects on High Density Printed Wiring Boards

With a dedicated board and proprietary 4-wire probes, you can now quickly and accurately detect minute resistances characteristic of open vias. To measure high insulation resistance, use the newly developed 100GΩ/250V super megohm board that minimizes stress from high applied voltage to deliver damage-free, rapid results. In addition, the built-in “Process Analyzer” lets you batch load accumulated inspection results to easily create statistical reports out of the data. Present data trends and view histograms from the results captured with each inspection step, make distribution maps, and draw other charts to visually data graphically in order to analyze defects and provide feedback to upstream design and manufacturing processes, ultimately helping to improve the quality and yield of PWBs.

Key Features

  • Optimization of probe movement reduces inspection time by up to 20%
  • Reduce probe marks in combination with the latest probes
  • Latent defect detection using newly developed statistical processing software

Key Features

  • Optimization of probe movement reduces inspection time by up to 20%
  • Reduce probe marks in combination with the latest probes
  • Latent defect detection using newly developed statistical processing software

Specifications Overview

Number of arms 4 (front × 2, rear × 2)
Compatible probes 1172 series, CP1072 series
Number of test steps 999,999 steps
Test parameters and measurement ranges Resistance measurement : 40.00 μΩ to 40.00 MΩ
　 Insulation measurement : 1.000 kΩ to 100.0 GΩ
　 Capacitance measurement : 100.0 fF to 10.00 μF
　 Leakage current measurement : 1.000 μA to 10.00 mA
　 High-voltage resistance measurement : 1.000 kΩ to 100.0 GΩ
　 Capacitor insulation measurement : 1.000 kΩ to 10.00 MΩ
　 Open measurement : 4.000 Ω to 4.000 MΩ
　 Short measurement : 400.0 mΩ to 40.00 kΩ
Judgment range -99.9% to +999.9% or absolute value
Minimum pad pitch 45 μm (with CP1075-09)
Minimum pad size 15 μm (with CP1075-09)
Measurement speed Max. 67 points/sec. (0.15 mm movements, 4-arm simultaneous probing, capacitance measurement)
Testable boards Standard specification: 50 mm (1.97 in) W × 50 mm (1.97 in) H to 610 mm (24.02 in) W × 510 mm (20.08 in) H, Thickness 1.0 mm (0.04 in) to 3.2 mm (0.13 in)
Pneumatic board clamp (option): 50 mm (1.97 in) W × 70 mm (2.76 in) H to 610 mm (24.02 in) W × 510 mm (20.08 in) H, Thickness: 0.6 mm (0.02 in) to 6.0 mm (0.24 in)
Maximum testable area 604 mm (23.78 in) W × 504 mm (19.84 in) H
Power supply 200 V, 220 V, 230 V, 240 V AC single-phase (specify at time of order),
50 Hz/ 60 Hz, Maximum power consumption: 3 kVA
Dimensions and mass 1485 mm (58.46 in) W × 1950 mm (76.77 in) H × 800 mm (31.50 in) D, (excluding protruding parts), 1070 kg (37742.5 oz)
