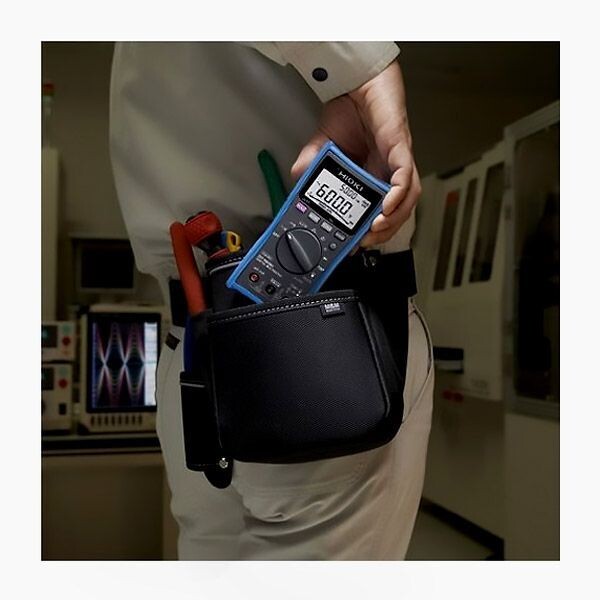

Model: Hioki DT4253 Digital Multimeter
The Hioki DT4200 Digital Multimeter Series consist of a join lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super rapid recognition rate and safety features that be in agreement electrical breakdown to a highly developed level. The DT4253 is a digital multimeter meant specifically for HVAC psychoanalysis, before 0.5% DC V accuracy, temperature and clamp sensor psychiatry, and broad 40 Hz to 1kHz bandwidth. Discover this Hioki DT4253 Digital Multimeter Price In Bangladesh from Tools Bangladesh.
The Hioki DT4253 Digital Multimeter is a high-precision, True RMS multimeter designed specifically for professionals in HVAC, electrical, and industrial fields. It delivers accurate measurements of AC/DC voltage up to 1000V, resistance up to 60MΩ, frequency, capacitance, and temperature, making it a versatile tool for a wide range of applications.
One of its standout features is the ability to work with clamp-on current probes, enabling safe and efficient current measurements without breaking the circuit. It also includes a built-in low-pass filter, ideal for testing inverter-controlled equipment by filtering out high-frequency noise, ensuring more stable readings.
The DT4253 supports thermocouple temperature measurements, which is essential for HVAC diagnostics. It also features micro- and milliamp measurement modes for precise control loop testing, along with a percent display function that helps with current loop monitoring.
Engineered with safety in mind, the multimeter holds a CAT IV 600V / CAT III 1000V safety rating. Its backlit LCD, durable casing, and compact design make it perfect for both lab and field use. With user-friendly features like data hold, min/max/avg recording, and long battery life, the Hioki DT4253 is a reliable and professional-grade solution for advanced electrical testing.
Key Features: Hioki DT4253 Digital Multimeter
- Ideal for measuring currents ranging from instrumentation signals (4 to 20 mA) to flame currents (μA) with built in high-sensitivity current ranges (DT4253)
- Dual display lets you check voltage and frequency simultaneously
- Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
Specifications: Hioki DT4253 Digital Multimeter
| DC Voltage range |
600.0 mV to 1000 V
5 ranges, Basic accuracy: ±0.3 % rdg. ±5 dgt. |
| AC Voltage range |
6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz
Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
| AUTO AC/DCV |
Yes |
| Resistance range |
600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±5 dgt. |
| DC Current range |
60.00 μA to 60.00 mA, 4 ranges,
Basic accuracy: ±0.8 % rdg. ±5 dgt. |
| From 4 to 20mA Percentage conversion display |
Yes |
| AC Current range (use with Clamp on probes) |
10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
| Temperature (thermocouples) |
K: -40.0 to 400.0 °C , Add the Temperature probe accuracy to basic accuracy: ±0.5 % rdg. ±2 °C |
| Voltage detection |
N/A |
| Capacitance range |
1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt. |
| Frequency range |
99.99 Hz to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage),
Basic accuracy: ±0.1 % rdg. ±1 dgt. |
| Continuity check |
Continuity threshold [ON]: 25 Ω or less ,
[OFF]: 245 Ω or more,
Response time: 0.5 ms or more |
| Diode test |
Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15 V to 1.5 V |
| Other functions |
Filter function, Display value hold, Auto hold, Max/Min/Average value display, Relative display, Auto-power save, USB communication (option) |
| Display |
Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph |
| Display refresh rates |
5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s) |
| Power supply |
LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF) |
| Dimensions and mass |
84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D,
390 g (13.8 oz) (including batteries and holster) |
| Accessories |
Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4 |
| Accessories |
Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4 |
