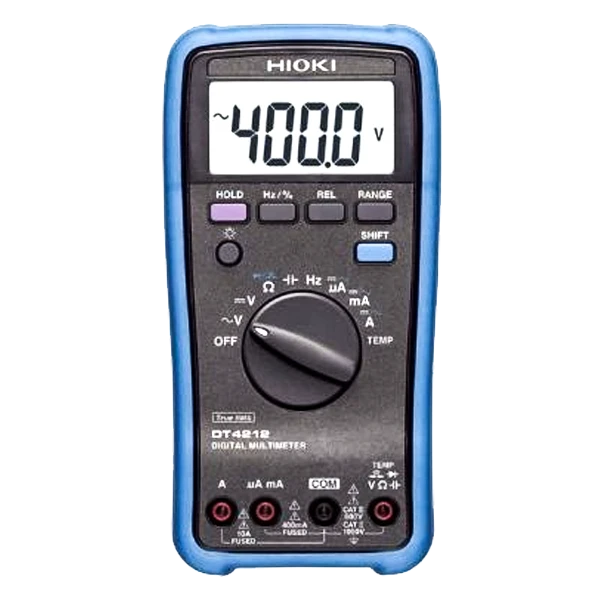

HIOKI DT4212 Digital Multimeter:
Technicians who perform electrical work may face deterioration of the power supply environment, for example in the form of distorted current waveforms as encountered with motors or inverters. Measuring such waveforms with mean rectification-type instruments yields readings that differ from actual values.
Consequently, the use of that type of DMM in the field while performing electrical work can lead to accidents, a reality that is fueling demand for true RMS instruments that are able to accurately measure even distorted waveforms. The DT4212 supports true RMS measurement. The DT4211 uses the mean value method.
Tools Bangladesh ensures the availability of high-quality, reliable multimeters at affordable prices, delivering the best tools nationwide for both professionals and hobbyists.
Key Features: HIOKI DT4212 Digital Multimeter
- CATIII 600V and CATII 1000 V
- Long Battery Life
- Large Display
- LCD Backlight
- Temperature Measurement
- True RMS Measurement
- Large Variety of Options and Probes
- Three-year warranty
Specifications: HIOKI DT4212 Digital Multimeter
| DC Voltage |
400.0 mV to 1000 V, 5 ranges, Basic accuracy: ±0.5 % rdg. ±3 dgt. |
| AC Voltage 40 to 500 Hz |
400.0 mV to 1000 V, 5 ranges, Frequency characteristics: 40 Hz - 500 Hz
Basic accuracy: ±1.0 % rdg. ±5 dgt. (True RMS, crest factor 2 to 1.5) |
| Resistance |
400.0 Ω to 40.00 MΩ, 6 ranges, Basic accuracy: ±0.5 % rdg. ±2 dgt. |
| DC Current |
400.0 μA to 10.00 A, 6 ranges, Basic accuracy: ±1.2 % rdg. ±3 dgt. |
| AC Current, 40 to 500 Hz |
400.0 μV to 10.00 A, 6 ranges, Frequency characteristics: 40 Hz - 500 Hz
Basic accuracy: ±1.2 % rdg. ±5 dgt. (True RMS, crest factor 2 to 1.5) |
| Temperature (use with DT4910) |
K: -55.0 to 400.0 °C, 400 to 700 °C, Add the Temperature probe accuracy to Basic accuracy: ±2.0 % rdg. ±1 °C |
| Voltage Detection |
N/A |
| C (capacitance) |
50.00 nF to 100.0 μF, 5 ranges, Basic accuracy: ±2.0 % rdg. ±5 dgt. |
| Frequency |
AC V measurement: 5.000 Hz (1 Hz or more) to 5.000 MHz, 7 ranges, Basic accuracy: ±0.1 % rdg. ±3 dgt.
Minimum sensitivity voltage: Square wave of 1.5 Vrms |
| Continuity Check |
Continuity threshold [ON]: 90 Ω ±40 Ω or less (Buzzer sound) |
| Diode test |
Open terminal voltage: 3.0 V or less, Testing current 0.5 mA |
| Environment |
Operating temperature: -10 to 50 °C, Storage temperature: -20 to 60 °C |
| Other functions |
Display value hold, Relative display, Auto-power off, Back light |
| Display |
4-digits LCD, max. 4000 counts |
| Display refresh rates |
3 times/s |
| Power supply |
LR6 alkaline batteries ×2, R6P manganese batteries ×2,
Continuous use: 800 hours (When using alkaline batteries) |
| Dimensions and mass |
91.6 mm (3.61 in)W × 180.6 mm (7.11 in)H× 57.1 mm (2.25 in)D, 388 g (13.7 oz) (including batteries and holster) |
Includes:
- HIOKI DT4212 Digital Multimeter
Accessories:
- Test Lead L9206 ×1, holster (attached) ×1, instruction manual ×1, R6P manganese battery ×2
