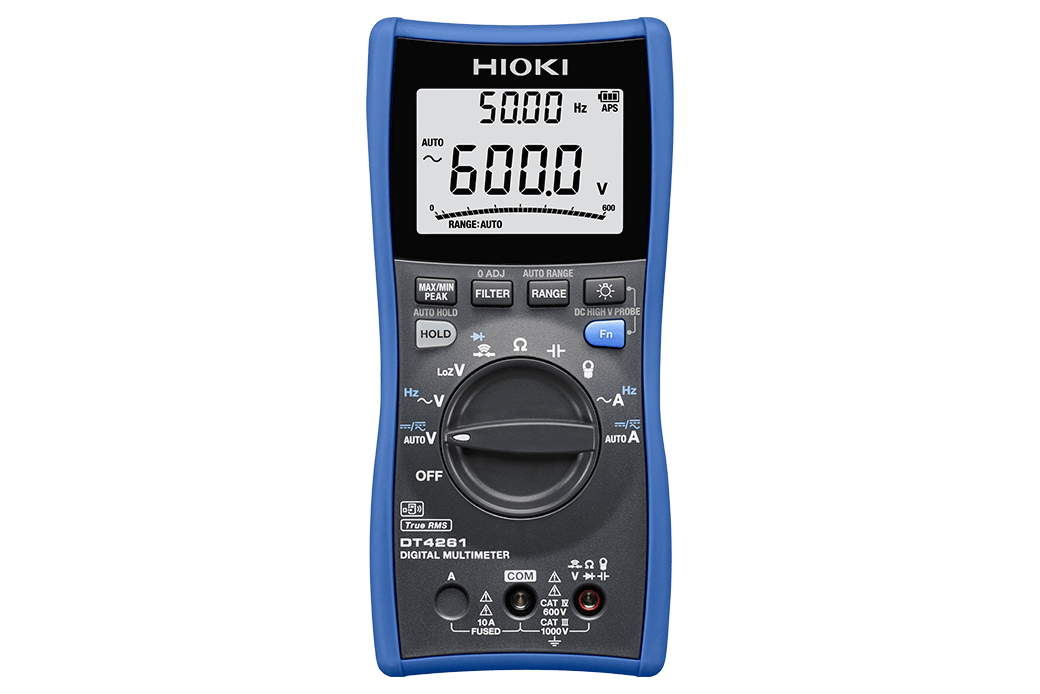

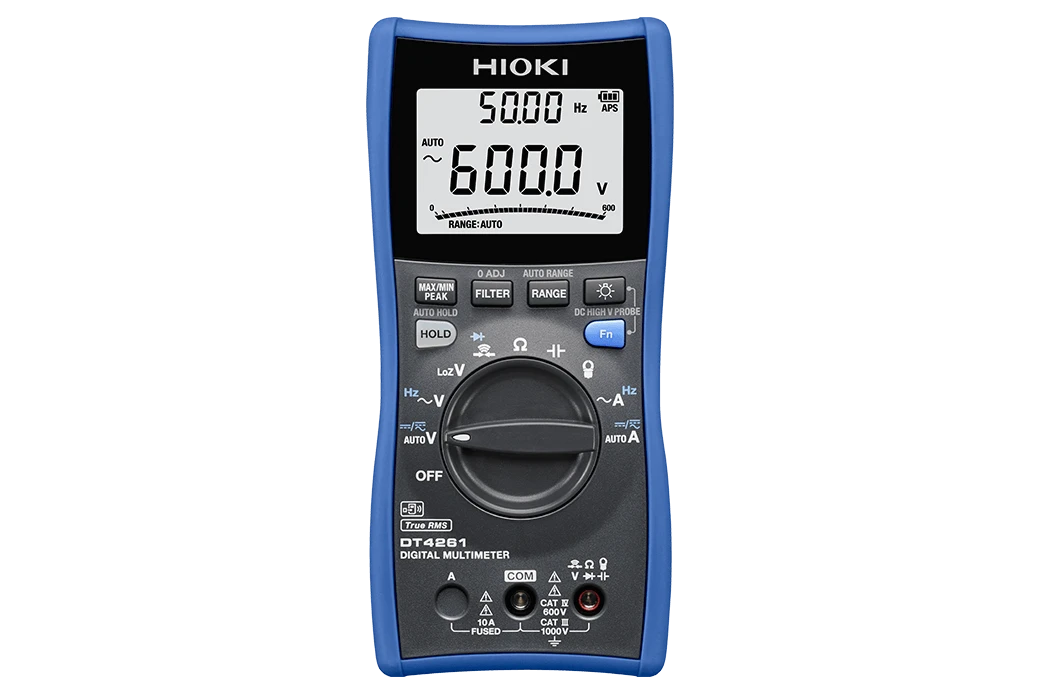

Hioki mid-range DMM, the DT4261, is an exceptional support tool with multifaceted functionality designed to help analyze a variety of issues and boost work efficiency. Safety CAT III 1000 V, CAT IV 600 V.
HIOKI DIGITAL MULTIMETER DT4261 Price in Bangladesh offers exceptional accuracy and reliability for advanced electrical measurements. Ideal for professionals, the DT4261 features a wide range of functions including voltage, current, resistance, and continuity testing. With robust build quality and precise readings, it’s perfect for industrial and field use. Discover the best HIOKI DIGITAL MULTIMETER DT4261 Price in Bangladesh today and upgrade your measurement tools with trusted performance.
Key Features
- Helping personnel analyze issues in the field
- Boost work efficiency with digitalization (Excel® Direct Input Function)
- Ensuring safety by preventing erroneous test lead insertion (terminal shutters)
- Stop worrying about losing test lead caps
- Excellent dust and water resistance (compliant with the IP54 international standard)
Basic specifications
Accuracy guaranteed: 1 year
DMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.
| DC Voltage range |
600.0 mV to 1000 V, 5 ranges, Basic accuracy: ±0.15% rdg. ±2 dgt. |
| AC Voltage range |
6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz
Basic accuracy 40 Hz - 500 Hz: ±0.9% rdg. ±3 dgt. (True RMS, crest factor 3 or less) |
| DC + AC Voltage range |
6.000 V to 1000 V, 4 ranges, Frequency characteristics: DC, 40 Hz to 1 kHz
Basic accuracy DC, 40 Hz - 500 Hz: ±1.0% rdg. ±13 dgt. (True RMS, crest factor 3 or less) |
| LoZ V |
600.0 V, 1 range, Frequency characteristics: DC, 40 Hz to 1 kHz
Basic accuracy DC, 40 Hz - 500 Hz: ±1.0% rdg. ±13 dgt. (True RMS, crest factor 3 or less) |
| Resistance range |
600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7% rdg. ±3 dgt. |
| DC Current range |
600.0 mA to 10.00 A, 3 ranges
Basic accuracy: ±0.5% rdg. ±3 dgt. |
| AC Current range |
600.0 mA to 10.00 A, 3 ranges
Basic accuracy 40 Hz - 500 Hz: ±1.4% rdg. ±3 dgt. (True RMS, crest factor 3 or less)
Frequency characteristics: 40 Hz to 1 kHz |
| AC Current range (use with Clamp on probes) |
10.00 A to 1000 A, 7 ranges
Basic accuracy 40 Hz - 500 Hz: Add the Clamp on probe accuracy to ±0.9% rdg. ±3 dgt.
(True RMS, crest factor 3 or less) |
| Capacitance range |
1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9% rdg. ±5 dgt. |
| Continuity Check |
Continuity threshold ON : 25 Ω, Continuity threshold OFF : 245 Ω, Response time: 0.5 ms or more |
| Diode test |
Open terminal voltage: 2.0 V or less, Testing current: 0.2 mA or less, Threshold of forward voltage: 0.15 V to 1.8 V |
| Voltage frequency range |
99.99 Hz to 99.99 kHz, 4 ranges (Limited by minimum sensitivity voltage)
Basic accuracy: ±0.1% rdg. ±1 dgt. |
| Current frequency range |
99.99 Hz to 9.999 kHz, 3 ranges (Limited by minimum sensitivity current)
Basic accuracy: ±0.1% rdg. ±1 dgt. |
| Harmonic levels |
[With Z3210 installed] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
*Harmonics can be displayed with our free app GENNECT Cross. |
| Other functions |
Mis-insertion prevention shutters, fuse check function, user setting retention function, filter function, zero-adjustment, display value hold, auto hold, MAX/MIN value display, PEAK value display, auto-power save, USB communication (when optional Communication Package DT4900-01 is installed), wireless communication (when optional Wireless Adapter Z3210 is installed) |
| Display |
Main and sub displays: 4-digits LCD, max. 6000 digits (excluding frequency measurement), bar-graph |
| Display refresh rates |
5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 times/s) |
| Power supply |
LR6 (AA) alkaline batteries × 3, Continuous operating time: 130 hr. (without Z3210 installed), 70 hr. (with Z3210 installed and using wireless communications) |
| Dimensions and mass |
87 mm (3.43 in.) W × 185 mm (7.28 in.) H × 47 mm (1.85 in.) D, 480 g (16.9 oz.) (with test leads holder and batteries) |
| Included accessories |
Test Lead L9300 × 1, Instruction Manual × 1, LR6 (AA) alkaline battery × 3, Operating Precautions ×1 |
| Included accessories |
Test Lead L9300 × 1, Instruction Manual × 1, LR6 (AA) alkaline battery × 3, Operating Precautions ×1 |
| Included accessories |
Test Lead L9300 × 1, Instruction Manual × 1, LR6 (AA) alkaline battery × 3, Operating Precautions ×1 |
