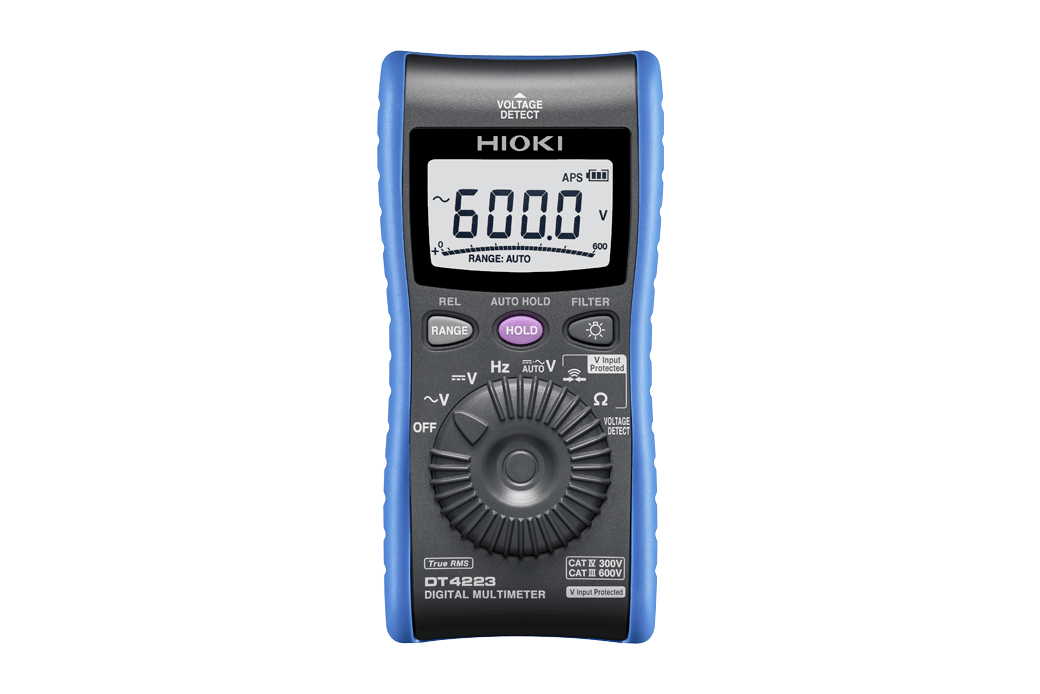

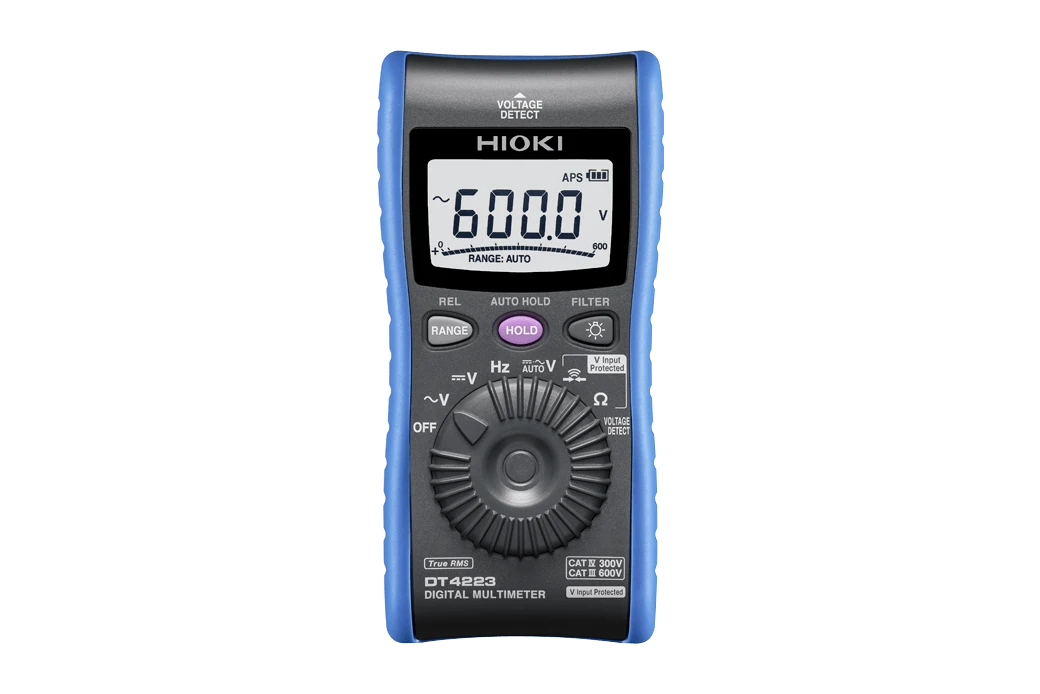

The Hioki DT4200 Digital Multimeter Series consists of a diverse array of meters ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The Hioki DT4223 is a pocket-sized digital multimeter featuring an innovating circuit-breaker false trip prevention function to enhance testing safety and a built-in voltage detector, ideal for electrical inspections.

CAT IV 300 V, CAT III 600 V

HIOKI DIGITAL MULTIMETER DT4223 Price in Bangladesh offers exceptional accuracy and performance for reliable electrical measurements. Designed for both professionals and technicians, this compact and durable multimeter ensures safe and precise diagnostics. With advanced features and robust design, it’s ideal for industrial and electrical applications. Discover the best HIOKI DIGITAL MULTIMETER DT4223 Price in Bangladesh today and upgrade your testing capabilities with trusted Japanese engineering.

Key Features

  • Achieving a high level of safety in a compact body and lightweight design
  • Circuit breaker false trip prevention function helps avoid accidents resulting from breakers that mistakenly trip due to incorrect input
  • Resistance measurement and voltage detection function (DT4223)
  • Robust design capable of withstanding a drop from a height of 1 m

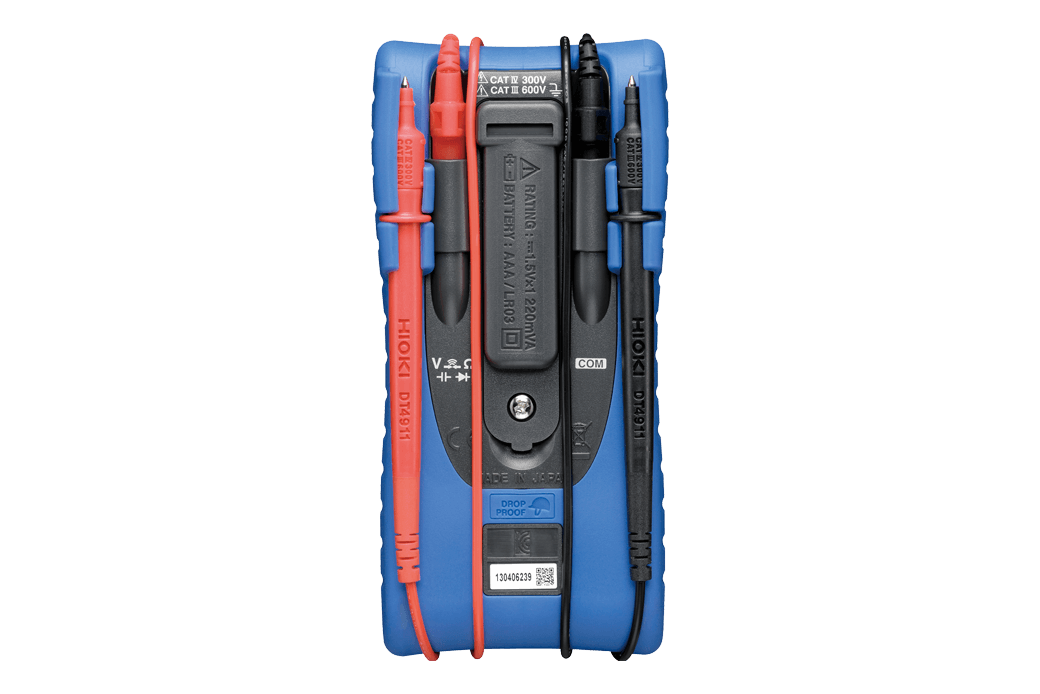

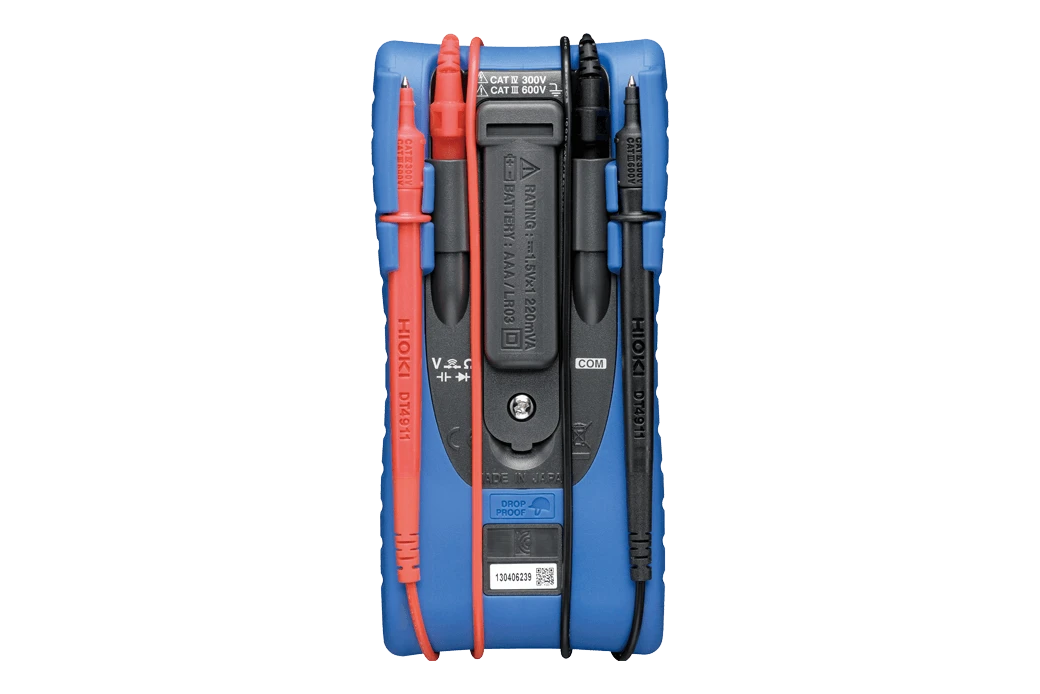

  • Test leads conveniently wrap around the back
  • ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
  • Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
  • Broad -10°C (14°F) to 65°C (149°F) operating temperature range
  • Display backlight

Basic specifications

Accuracy guaranteed: 1 year
Regarding DMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.

DC Voltage range 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC Voltage range 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3)
Resistance range 600.0 Ω to 60.00 MΩ, 6 ranges
Basic accuracy: ±0.9 % rdg. ±5 dgt.
Capacitance range N/A
Frequency range AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges
Basic accuracy: ±0.1 % rdg. ±2 dgt.
Continuity check Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more
Diode test N/A
Voltage detection 80 V to 600 V AC
Other functions Circuit-breaker false trip prevention function, filter function, display value hold, relative value display, auto-power save
Display Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s )
Power supply LR03 alkaline batteries ×1, Continuous use: 35 hours (backlight OFF)
Dimensions and mass 72 mm (2.83 in)W × 149 mm (5.87 in)H× 38 mm (1.50 in)D,190 g (6.7 oz) (including batteries and holster)
Included accessories Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1
Included accessories Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1
Included accessories Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1

The Hioki DT4200 Digital Multimeter Series consists of a diverse array of meters ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The Hioki DT4223 is a pocket-sized digital multimeter featuring an innovating circuit-breaker false trip prevention function to enhance testing safety and a built-in voltage detector, ideal for electrical inspections.

CAT IV 300 V, CAT III 600 V

HIOKI DIGITAL MULTIMETER DT4223 Price in Bangladesh offers exceptional accuracy and performance for reliable electrical measurements. Designed for both professionals and technicians, this compact and durable multimeter ensures safe and precise diagnostics. With advanced features and robust design, it’s ideal for industrial and electrical applications. Discover the best HIOKI DIGITAL MULTIMETER DT4223 Price in Bangladesh today and upgrade your testing capabilities with trusted Japanese engineering.

Key Features

  • Achieving a high level of safety in a compact body and lightweight design
  • Circuit breaker false trip prevention function helps avoid accidents resulting from breakers that mistakenly trip due to incorrect input
  • Resistance measurement and voltage detection function (DT4223)
  • Robust design capable of withstanding a drop from a height of 1 m
  • Test leads conveniently wrap around the back
  • ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
  • Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
  • Broad -10°C (14°F) to 65°C (149°F) operating temperature range
  • Display backlight

Basic specifications

Accuracy guaranteed: 1 year
Regarding DMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.

DC Voltage range 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC Voltage range 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3)
Resistance range 600.0 Ω to 60.00 MΩ, 6 ranges
Basic accuracy: ±0.9 % rdg. ±5 dgt.
Capacitance range N/A
Frequency range AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges
Basic accuracy: ±0.1 % rdg. ±2 dgt.
Continuity check Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more
Diode test N/A
Voltage detection 80 V to 600 V AC
Other functions Circuit-breaker false trip prevention function, filter function, display value hold, relative value display, auto-power save
Display Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s )
Power supply LR03 alkaline batteries ×1, Continuous use: 35 hours (backlight OFF)
Dimensions and mass 72 mm (2.83 in)W × 149 mm (5.87 in)H× 38 mm (1.50 in)D,190 g (6.7 oz) (including batteries and holster)
Included accessories Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1

Included accessories Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1

Included accessories Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1
