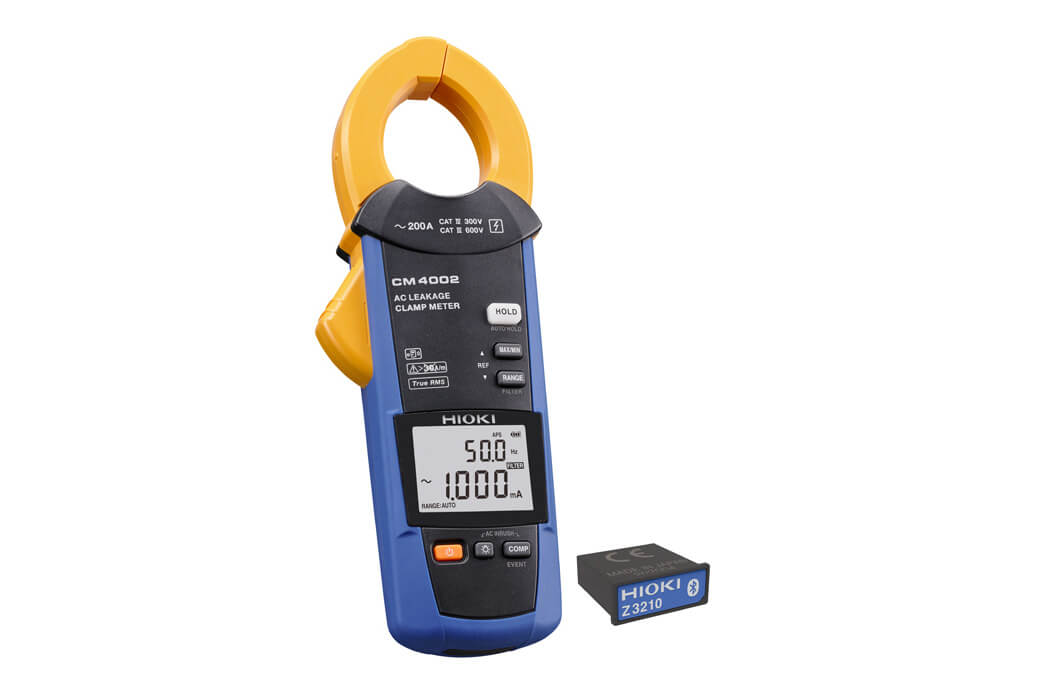

Easy! Just connect the optional Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready.
Wirelessly connect Hioki-compliant instruments with a simple connection.
Transmit measured values to your tablet or smartphone.

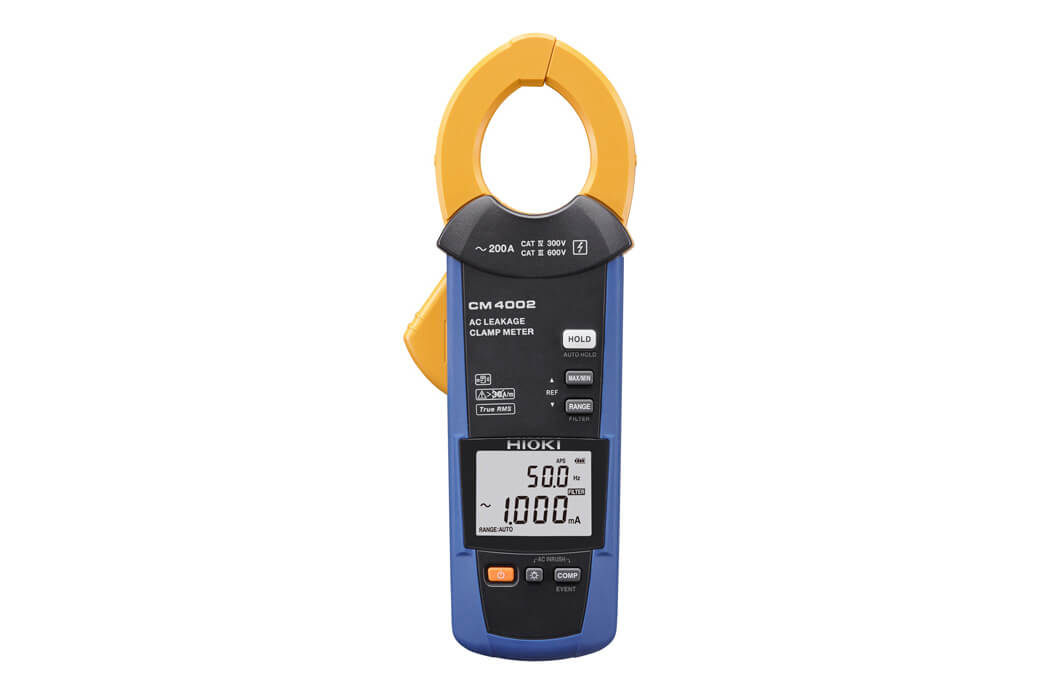

HIOKI CM4002 AC Leakage Clamp Meter Price in Bangladesh offers unbeatable value for professionals needing accurate leakage current measurements. Designed for safety inspections and equipment maintenance, this clamp meter ensures precision and reliability. With a wide measurement range and durable design, it's ideal for industrial and commercial use. Discover the HIOKI CM4002 AC Leakage Clamp Meter Price in Bangladesh today for top performance at a competitive rate.
Key Features
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- Detect minuscule leakage currents with a newly designed sensor. (Core jaw diameter up to φ 40 mm)
- Broad measurement range extending from leakage currents to load currents
- Complies with the performance standard set forth in IEC/EN 61557-13, an international standard on leak clamp meters
- Solve GFCI and RCD problems quickly
- Speed up pass/fail judgments with the built-in comparator function
- CAT IV 300 V
CAT III 600 V
Basic specifications
Accuracy guaranteed: 1 year
| AC Current range |
6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS
Basic accuracy 45 Hz - 400 Hz: ±1.0% rdg ±5 dgt (6.000 mA to 6.000 A), ±1.5% rdg ±5 dgt (60.00 A, 200.0 A)
Basic accuracy 15 Hz - 45 Hz, 400 Hz - 2 kHz: ±2.0% rdg ±5 dgt
Defined accuracy range: 0.060 mA to 200.0 A |
| AC Voltage range |
N/A |
| Frequency range |
15.0 Hz to 2000 Hz |
| Crest factor |
3 (other than 200.0 A range), 1.5 (200.0 A range) |
| Filter function |
Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB) |
| Output function |
N/A |
| Harmonic levels |
[With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
*Harmonics can be displayed with our free app GENNECT Cross. |
| Other functions |
Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement |
| Display |
Display refresh rate: 5 times/s |
| Power supply |
AA-size alkaline battery (LR6) × 2; Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications) |
| Core jaw diameter |
φ 40 mm (1.57 in.) |
| Dimensions and mass |
64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g (14.1 oz.) |
| Included accessories |
Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2 |
| Included accessories |
Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2 |
| Included accessories |
Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2 |
