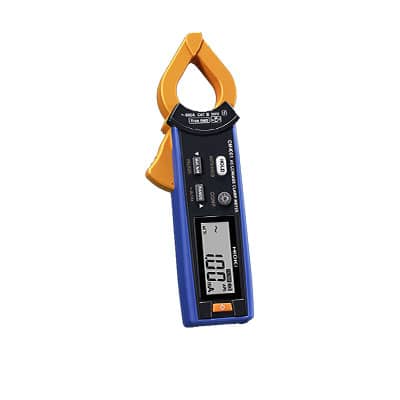

HIOKI CM4001 AC LEAKAGE CLAMP METER:
Hioki clamp-on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. Use the CM4001 to easily clamp within crowded cables to reduce work time and improve safety. With guaranteed accuracy from 0.60 mA to 600.0 A, the CM4001 provides a one-stop solution for a variety of applications. A built-in comparator function also helps you find issues much faster. Leakage Current Meter with Remarkable Ease of Use Double Your Work Speed with Innovative Jaw Design.
Are you trying to find a great, Clam Meter? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Key Features:
- Slim jaws let you work with ease.
- Easily clamp within crowded cables to save work time and improve safety.
- Wirelessly connect Hioki-compliant instruments with a simple connection.
- Transmit measured values to your tablet or smartphone.
Specifications:
Accuracy guaranteed: 1 year
| AC Current range |
60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS)
Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A), ±2.5% rdg ±5 dgt (60.00 A to 600.0 A)
Guaranteed accuracy: from 0.60 mA to 600.0A |
| AC Voltage range |
N/A |
| Frequency range |
40.0 Hz to 999.9 Hz |
| Crest factor |
4.5 (4000 counts or less)
3 (more than 4000 counts, 6000 counts or less) |
| Filter function |
Cut-off frequency: 180 Hz ±30 Hz at filter ON (-3 dB) |
| Output function |
N/A |
| Harmonic levels |
[With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
*Harmonics can be displayed with our free app GENNECT Cross. |
| Other functions |
Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function |
| Display |
Display refresh rate: 5 times/s |
| Power supply |
LR03 alkaline battery × 1; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications) |
| Core jaw diameter |
φ 24 mm (0.94 in) |
| Dimensions and mass |
37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.) |
| Included accessories |
Carrying case × 1, Strap × 1, Instruction manual × 1, Operating Precautions × 1, LR03 alkaline battery × 1 |
