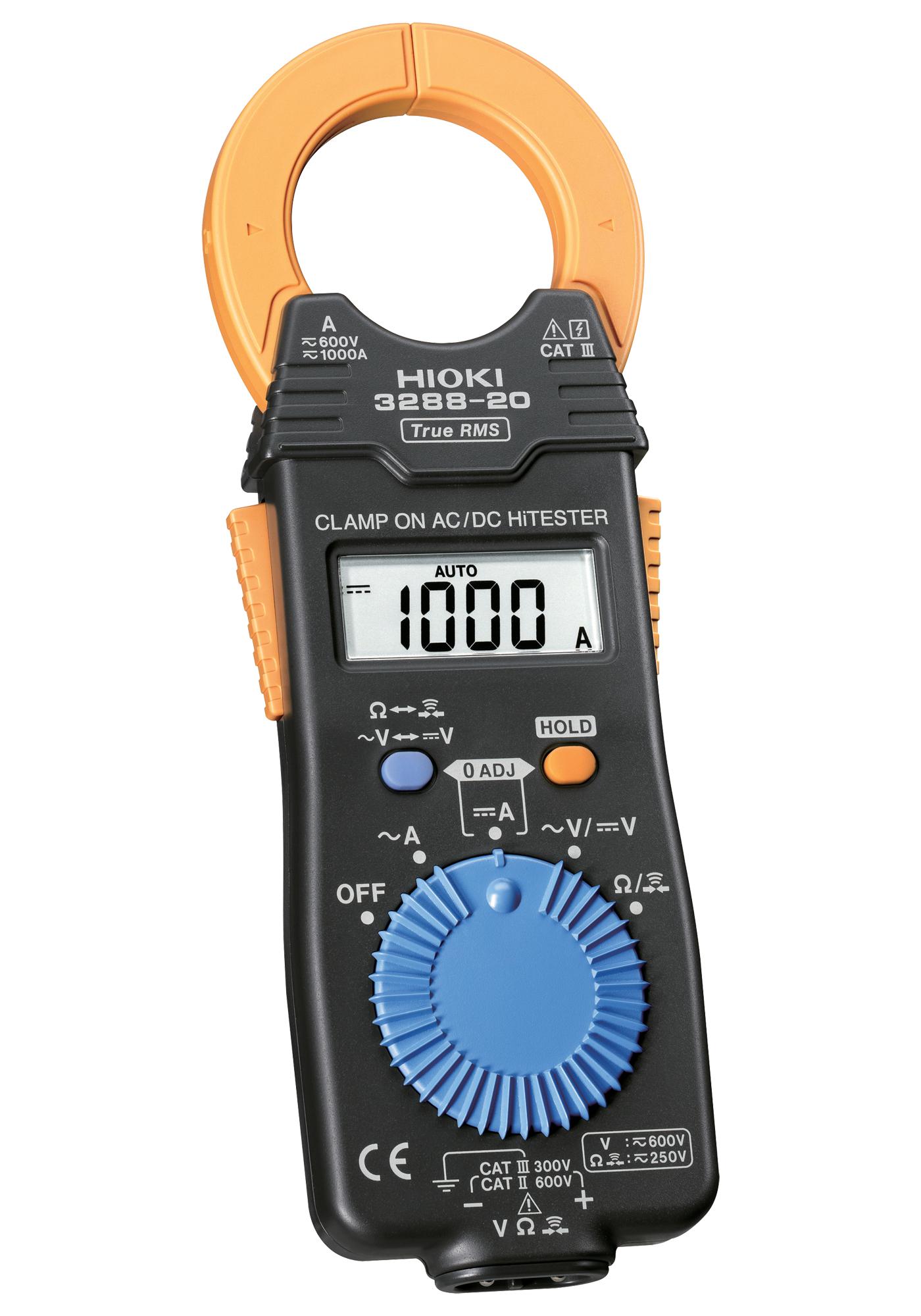

Product Information Hioki 3288-20 Digital Clamp Meter
The 3288-20 AC/DC Clamp Multimeter is a compact, multi-functional clamp meter designed for quick and efficient equipment diagnostics. It measures AC/DC current and voltage, while also offering resistance, continuity, and crest factor checks. With a slim profile and double jaw lever, it’s ideal for accessing crowded wires in industrial environments. The True RMS functionality ensures precise measurements, even for distorted waveforms, making it perfect for high-current applications such as UPS emergency batteries and train motors.
When it comes to Hioki 3288-20 Digital Clamp Meter Price in Bangladesh, Tools Bangladesh offers the most competitive rate with full warranty support. This model is not only reliable but also cost-effective for anyone looking to measure current, voltage, and resistance with professional-grade accuracy. Whether for industrial inspections or home electrical work, the Hioki 3288-20 is engineered to deliver consistent results every time.
Choose Tools Bangladesh for your electrical test and measurement needs. We are one of the leading suppliers of genuine Hioki instruments and other global brands in Bangladesh, ensuring quality products, expert advice, and after-sales service that professionals trust.
Tools Bangladesh offers genuine electrical and industrial test equipment from world-class brands like Hioki, Fluke, and UNI-T. We ensure competitive pricing, expert guidance, and fast nationwide delivery. Your trusted partner for quality testing tools and reliable after-sales service in Bangladesh.
Key Features: Hioki 3288-20 Digital Clamp Meter
- Model 3288-20: True RMS
- Use the 3288 for high current measurements such as UPS emergency batteries and train motors
- Voltage, resistance, and continuity check functions
Specifications: Hioki 3288-20 Digital Clamp Meter
| 3288 |
3288-20 |
| DC Current range |
100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| AC Current range |
100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),
Basic accuracy: ±1.5 % rdg. ±5 dgt. |
100.0/ 1000 A, (10 Hz to 500 Hz, True RMS),
Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| DC Voltage range |
419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. |
| AC Voltage range |
4.199 V to 600 V, 4 ranges,
Basic accuracy: ±2.3 % rdg. ±8 dgt.
(30 to 500 Hz, Average rectified) |
4.199 V to 600 V, 4 ranges,
Basic accuracy: ±2.3 % rdg. ±8 dgt.
(30 to 500 Hz, True RMS) |
| Resistance range |
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. |
| Crest factor |
N/A |
3 or less (2 at 1000 A range, 1.5 at Voltage) |
| Other functions |
Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A) |
| Display |
LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s |
| Power supply |
Coin type lithium battery (CR2032) ×1, Continuous use 60 hours |
Coin type lithium battery (CR2032) ×1, Continuous use 35 hours |
| Core jaw dia. |
φ 35 mm (1.38 in) |
| Dimensions and mass |
57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz) |

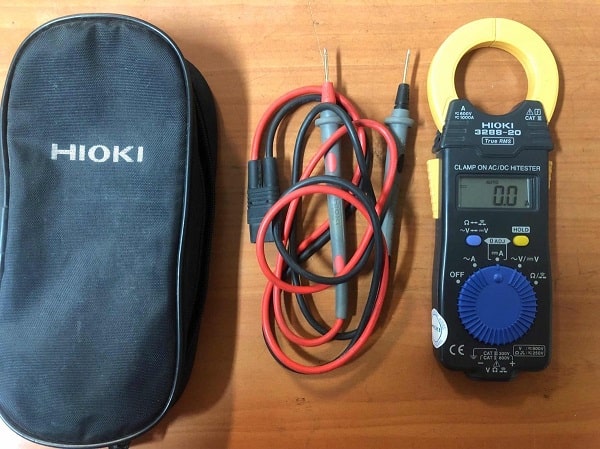

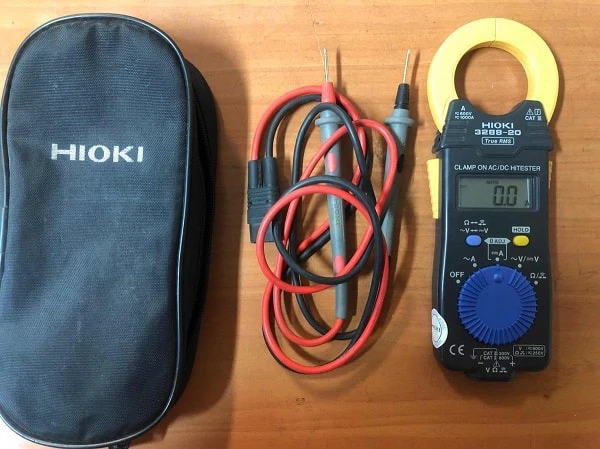

Accessories: Hioki 3288-20 Digital Clamp Meter
| Accessories |
Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1 |
Accessories: Hioki 3288-20 Digital Clamp Meter
| Accessories |
Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1 |
Write a Review
Clamp meter ta use korte onek easy. Reading accurate ebong build quality darun. Highly recommended.
Works perfectly, highly satisfied.
