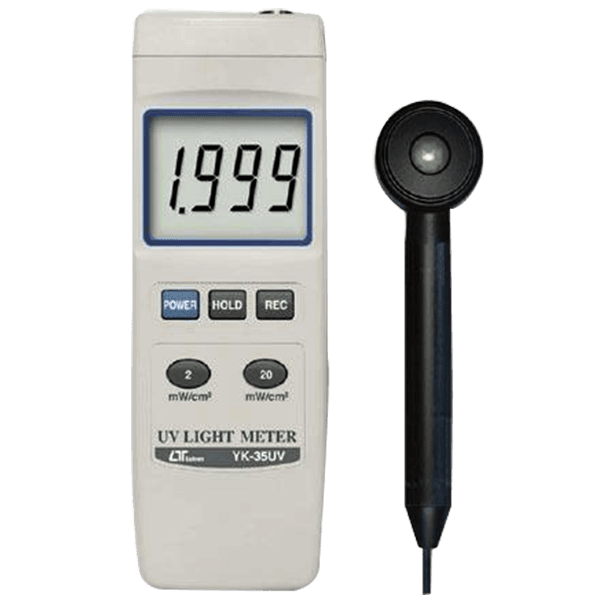

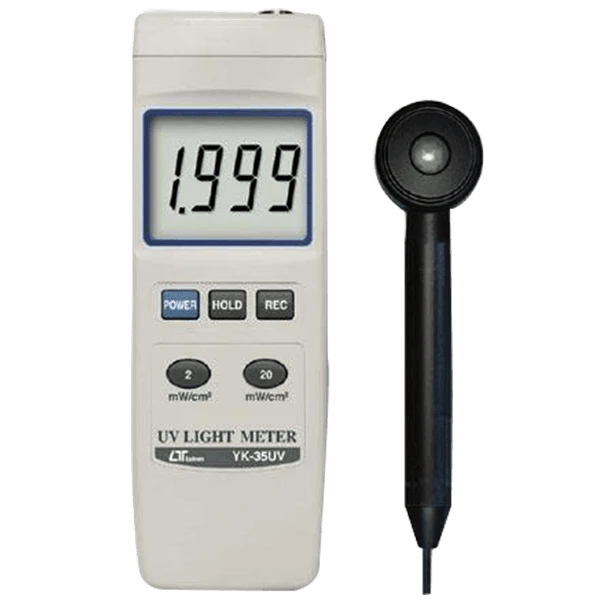

Key Features: Lutron YK 35UV Light Meter

• Professional,
• high-quality UV meter.
• Ultra-violet irradiation measurement for UVA & UVB.
• UV detector spectrum from 290 nm to 390 nm.
• Two ranges : 2 mW/cm^2, 20 mW/cm^2.
• Exclusive UV sensor structure. Sensor with cosine correction filter. Build a Zero button. Microprocessor circuit provides high reliability and durability.
• A separate UV LIGHT probe allows the user to measure the UV light at an optimum position.
• The LCD display, easy readout.
• RS-232/USB computer interface.
• DC 9V battery power supply.
• Build-in DC 9V power adapter input socket.
• Heavy duty & compact housing case.

Specification : lutron YK 35UV Light Meter

• Display :LCD size : 51 mm x 37 mm. Maximum indication 1999 counts
• Measurement ranges Resolution :Range 1 : 2 mW/cm^2 :1.999 mW/cm^2 x 0.001 mW/cm^2
• Range 2 : 20 mW/cm^2 :19.99 mW/cm^2 x 0.01 mW/cm^2
• UV sensor spectrum :Band pass 290 nm to 390 nm.
• Accuracy :± ( 4 % FS + 2 dgt ). FS: full scale
• Sensor structure: The exclusive UV photosensor with the cosine correction filter.
• The buttons Power button, Hold button, REC button, Range button, Zero button.
• Sample Time Approx. 1 sec.
• Over Range Indication :Indication of "- - - -"
• Data Output : RS 232/USB PC serial interface.
• Operating Temperature : 0 to 50.
• Operating Humidity : Less than 85% R.H
• Power Supply: DC 9V 006P, MN1604 ( PP3 ) or equivalent.
• Power Consumption :Approx. DC 6 mA
• Weight :355 g/0.77 LB (included batteries)
• Size Main instrument:200x68x30 mm (7.9x2.7x1.2 inch ).
• Sensor probe:125 x 24 mm dia.
