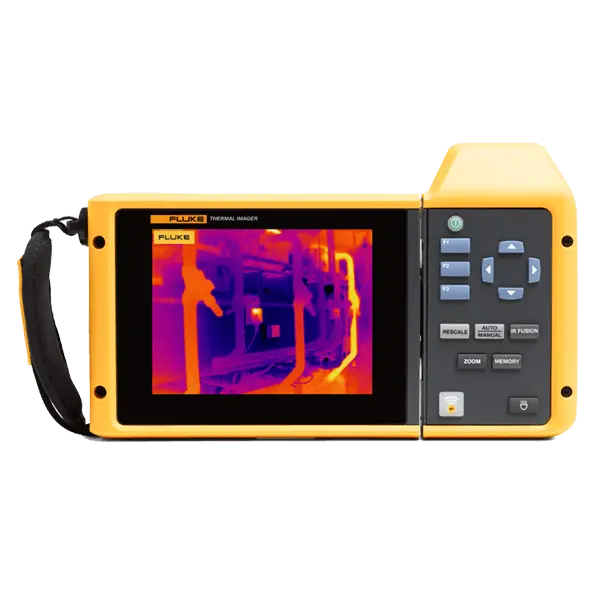

Fluke TiX580 Infrared Camera

Supplier: Iconic Engineering Limited

Sub Category: Thermal Imaging Cameras

Out of Stock Ask for Price

Model: Fluke TiX580 Infrared Camera

Are you looking the Fluke TiX580 Infrared Camera is reliable trusted and it's very popular that because Rugged, superbly engineered 640 x 480 thermal imaging camera?

Does everyone in the reforest slant to you? Are you the one who speedily can join up facts, comprehend issues and mold process and events to meet costly decisions head-upon? If therefore, you compulsion an infrared camera that is as sprightly and detail-oriented as you are. That is why the TiX580 should always be within arms achieve. Your day can submit to you anywhere.

R&D lab
Production floor
Off-site, remote locations
Transmission and distribution lines (substations)

From vibes assurance to preventive money and outdoor inspections, shadowy can bring an exchange setting and an exchange challenge for your thermal imager. With an unsurpassed level of detail in all infrared images and the finishing to take possession of vibes images of objects whether they are small and near to large and far away overhead.

The ergonomic design and neck strap make long inspection days easier. Outside the rotating screen lets you familiarize yourself to minimize glare and the touchscreen delivers a premium in-pitch viewing experience. TiX580 has the tools to accommodate your feelings.

If you want to buy a Fluke Product that are reliable and brand new product So you have to right place on only. We confidently say that we Tools Bangladesh is best and you take out from here with your reasonable price.

Features

Key features: Fluke TiX580 Infrared Camera

Rugged, superbly engineered 640 x 480 thermal imaging camera
Provides large 5.7-inch responsive LCD touchscreen with 150% more viewing area than 3.5-inch screen
Features 240° rotating screen for unmatched shooting flexibility
Provides 4x the pixel data with on-camera SuperResolution to create a 1280 x 960 resolution image

Specifications

Specifications: Fluke TiX580 Infrared Camera

Key features
IFOV with standard lens (spatial resolution)	0.93 mRad, D:S 1065:1
Detector resolution	640 x 480 (307,200 pixels)
SuperResolution	Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image
MultiSharp™ Focus	Yes, focused near and far, throughout the field of view
LaserSharp® Auto Focus	Yes, for consistently in-focus images. Every. Single. Time.
Laser distance meter	Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus	Yes
Touchscreen display (capacitive)	5.7 inch (14.4 cm) landscape 640 x 480 LCD
Rugged, ergonomic design	240 ° rotatable (articulating) lens
Digital zoom	2x, 4x, and 8x
Pre-calibrated Lenses	wide angle, 2x telephoto, 4x telephoto and 25 micron/macro

Temperature measurement
Temperature measurement range (not calibrated below -10 °C)	--20 °C to +1000 °C (-4 °F to +1832 °F)
Accuracy	±2 °C or 2% (at 25 °C nominal, whichever is greater)
Thermal sensitivity (NETD)^*	≤ 0.05 °C at 30 °C target temp (50 mK)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
Live line marker	Yes
^*Best possible

Wireless connectivity
To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
Fluke Connect® app compatible	Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect Assets optional software	Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location.
Fluke Connect Instant Upload	Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
Fluke Connect tool compatible	Yes, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen. Five simultaneous connections supported.
Fluke Connect SmartView desktop software	Yes

IR-Fusion® technology
Adds the context of the visible details to your infrared image
AutoBlend™ mode	Continuously variable
Picture-In-Picture (PIP)	100%, 75%, 50%, 25% IR
Built-in digital camera (visible light)	5 MP

Lenses
Standard lens	IFOV (spatial resolution)	0.93 mRad, D:S 1065:1
	Field of view	34 °H x 24 °V
	Minimum focus distance	15 cm (approx. 6 in)
	IR-Fusion® technology	Picture-in-picture and full screen
Optional 2x telephoto smart lens	IFOV	0.46 mRad. D:S is 2145.1
	Field of view	17 °H x 12 °V
	Minimum focus distance	45 cm (approx. 18 in)
	IR-Fusion® technology	Picture-in-picture and full screen
Optional wide-angle smart lens	IFOV	1.85 mRad, D:S is 525:1
	Field of view	68 °H x 48 °V
	Minimum focus distance	15 cm (approx. 6 in)
	IR-Fusion® technology	Full screen

Level and span
Smooth auto and manual scaling
Touchscreen adjustable level/span	Yes. Span and level can be easily and quickly set by simply touching the screen
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (in manual mode)	2.0 °C (3.6 °F)
Minimum span (in auto mode)	3.0 °C (5.4 °F)

Data storage and image capture
Extensive memory options	Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage.
Image file formats	Non-radiometric (.bmp, .jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files
Memory review	Thumbnail and fullscreen review
Software	Fluke Connect SmartView software - full analysis and reporting software and Fluke Connect system
Export file formats with SmartView® software	Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotation	60 seconds maximum recording time per image; reviewable playback on camera
IR-PhotoNotes™	Yes (5 images)
Advanced text annotation	Yes. Including standard shortcuts as well as user programmable options
Video recording	Standard and radiometric
File formats video	Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)
Remote display viewing	Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor
Remote control operation	Yes, through Fluke Connect SmartView desktop software or Fluke Connect mobile app
Auto capture (temperature and interval)	Yes
MATLAB® and LabVIEW® tool boxes	Integrate camera data, infrared video and images into these software platforms to support R&D analysis

Battery
Batteries (field-replaceable, rechargeable)	Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life	2-3 hours per battery (Actual life varies depending on settings and usage)
Battery charge time	2.5 hours to full charge
Battery charging system	Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operation	AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power saving	User selectable sleep and power off modes

Color palettes
Standard palettes	8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes	8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

General specifications
Frame rate	60 Hz or 9 Hz versions
Laser pointer	Yes
LED light (torch)	Yes
Color alarms (temperature alarms)	High temperature, low temperature, and isotherms (within range)
Center-point temperature measurement	Yes
Spot temperature	Hot and cold spot markers
User-definable spot markers	3 user-definable spot markers
Center box	Expandable-contractible measurement box with MIN-MAX-AVG temp display
Infrared spectral band	7.5 μm to 14 μm (long wave)
Operating temperature	-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature	-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity	10% to 95% non-condensing
Safety	IEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic compatibility	IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCM	IEC 61326-1
US FCC	CFR 47, Part 15 Subpart B
Vibration	0.03 g2/Hz (3.8 g), 2.5 g IEC 68-2-6
Shock	25 g, IEC 68-2-29
Drop	25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens
Size (H x W x L)	27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in)/1.54 kg (3.4 lb)
Weight (battery included)	1.04 kg (2.3 lb)
Enclosure rating	IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard), extended warranties are available
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish

Includes

Includes: Fluke TiX580 Infrared Camera

Thermal imager with standard infrared lens
AC power supply and battery pack charger (including universal AC adapters)
Two, rugged lithium ion smart battery packs
USB cable
HDMI video cable
Bluetooth headset (where available)
Rugged, hard carrying case
Adjustable neck and hand strap
Available by free download Fluke Connect® SmartView® desktop software and users manual
