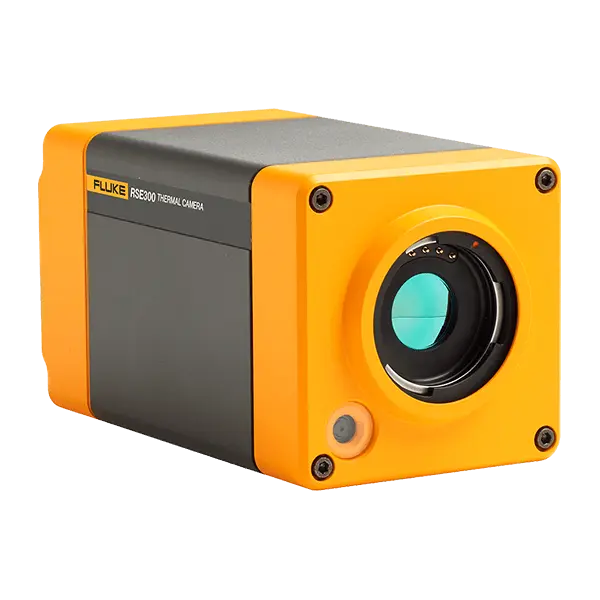

Fluke RSE300 Mounted Infrared Camera

Home › Fluke
Thumbnail
Shop : Tools Bangladesh
Product ID : 146
Brand : Fluke
Availability : In Stock (1)
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Model: Fluke RSE300 Mounted Infrared Camera

Fluke RSE300 Mounted Infrared Camera is reliable and MATLAB® and LabVIEW® software compatibility allows users to integrate infrared data, images, and videos to support R&D analysis.

Introducing the first ever adequately-radiometric, mounted Fluke infrared cameras the RSE series. Equipped taking into account ahead of its time features and software plug-ins to MATLAB and LabVIEW, these tools are ideal for eternity streaming and analyzing infrared data.

Designed for your research, science and engineering needs, adjoin your psychotherapy and mood assurance events by mounting the RSE300 to your workstation. Continuously stream occurring to 60 frames of data per second directly to your computer to monitor minute temperature differences, and analyze videos frame-by-frame remotely from SmartView desktop software. Enhance your viewing experience as soon as optional mount occurring-around lenses to direct oscillate applications (analyzing from a set against, or getting the muggy-occurring details).

Tools Bangladesh is providing the best and reliable tools in Bangladesh at a suitable price for all.

Key features: Fluke RSE300 Mounted Infrared Camera

MATLAB® and LabVIEW® software compatibility allows users to integrate infrared data, images and videos to support R&D analysis

320 x 240 resolution

See the details you need with optional smart lenses: 2x and 4x telephoto, wide angle and macro lenses

Optimize images, generate customizable reports and export images to the format of your choice with SmartView® desktop software

Wirelessly connect your camera to the Fluke Connect® system to easily share and edit images



Specifications: Fluke RSE300 Mounted Infrared Camera

Key Features
IFOV with standard lens (spatial resolution) 1.85 mRad
Detector resolution 320 x 240 (76,800 pixels)
Field of view 24 °H x 18 °V
Minimum focus distance 15 cm (approx. 6 in)
Camera focus options Focus is adjusted in SmartView® desktop software
Wireless connectivity Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
IR-Fusion® technology Yes, in SmartView® desktop software. Five modes of image blending (AutoBlend™ mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image
Thermal sensitivity (NETD) ≤ 0.040 °C at 30 °C target temp (40 mK)*
Filter mode (NETD improvement) Yes
Level and span Smooth auto and manual scaling, in SmartView® desktop software
Fast auto toggle between manual and auto modes Yes, in SmartView® desktop software
Fast auto-rescale in manual mode Yes, in SmartView® desktop software
Minimum span (in manual mode) 0.1 °C (0.18 °F), in SmartView® desktop software
Minimum span (in auto mode) <1.0 °C (<1.8 °F), in SmartView® desktop software
Built-in digital camera (visible light) 5 megapixel industrial performance
Frame rate 60 Hz or 9 Hz versions
Digital zoom Variable up to 16x in SmartView® desktop software
*Best possible

Data storage and image capture
Memory options Connect to SmartView® desktop software for storage to device or upload to Fluke Cloud™ for permanent storage Capture, save and analyze images in SmartView® desktop software
Image capture, review, save mechanism Image file formats Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
Software SmartView® desktop software—full analysis and reporting software Compatible with MATLAB® and LabVIEW® software
Export file formats with SmartView® desktop software Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotation Yes, in SmartView® desktop software
Text annotation Yes, in SmartView® desktop software
Video recording Yes, in SmartView® desktop software
File formats video Non-radiometric (MPEG-encoded .AVI) and fully-radiometric (.IS3), in SmartView® software
Remote display viewing Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® desktop software on a PC; via WiFi hotspot to the Fluke Connect® app
Remote control operation Yes, through ethernet or SmartView® desktop software

Temperature measurement
Temperature measurement range (not calibrated below -10 °C) -10 °C to +1200 °C (14 °F to +2192 °F)
Accuracy ± 2 °C or ± 2 %, whichever is greater
Reflected background temperature compensation Yes, in SmartView® desktop software
Transmission correction Yes, in SmartView® desktop software
Live line marker Yes, in SmartView® desktop software

Color Palettes
Standard palettes 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

General specifications
Color alarms (temperature alarms) Yes, in SmartView® desktop software–high temperature, low temperature, and isotherms (within range)
Infrared spectral band 8 μm to 14 μm (long wave)
Operating temperature -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature -20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity 10 % to 95 % non-condensing
Center-Point temperature measurement Yes, in SmartView® desktop software
Spot temperature Yes, in SmartView® desktop software–hot and cold spot markers
User-definable spot markers 3 user-definable spot markers, in desktop software
Center box Expandable-contractible measurement box with MIN-MAX-AVG temp display, in desktop software
Electromagnetic compatibility EN 61326-1:2013 IEC 61326-1:2013; (Industrial)
US FCC CFR 47, Part 15 Subpart B Class A
Vibration IEC 60068-2-26 (sinusoidal vibration): 3G, 11–200 Hz, 3 axis
Shock IEC 60068-2-27 (mechanical shock): 50G, 6 ms, 3 axis
Size (H x W x L) 8.3 x 8.3 x 16.5 cm (3.3 x 3.3 x 6.5 in)
Weight (battery not included) 1 kg (2.2 lb)
Enclosure rating IEC 60529: IP67 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty Two years (standard), extended warranties are available
Recommended calibration cycle Two-years (assumes normal operation and normal aging)
Supported languages Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
SmartView® desktop analysis and reporting software is available in all countries but Fluke Connect® wireless system is not. Please check availability with your authorized Fluke distributor.

Includes: Fluke RSE300 Mounted Infrared Camera

  • Infrared camera with standard infrared lens
  • 320 x 240 image resolution
  • AC power supply
  • Ethernet cable
  • Antenna

Accessories: Fluke RSE300 Mounted Infrared Camera

  • IR lenses (4)
  • 2x Telephoto Infrared Smart Lens RSE
  • 4x Telephoto Infrared Smart Lens RSE
  • Wide Angle Infrared Lens RSE
  • Macro Infrared Lens RSE
