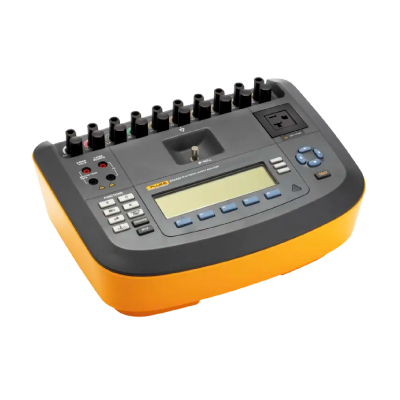

Fluke ESA620 Electrical Safety Analyzer

Home › Fluke
Thumbnail
Shop : Tools Bangladesh
Product ID : 3809
Brand : Fluke
Availability : In Stock (1)
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Fluke ESA620 Electrical Safety Analyzer

The ESA620 Electrical Safety Analyzer, featuring smart technology to enhance productivity under any standard, represents the next generation in portable electrical safety testers. With selections of three test loads, two protective earth test currents, and two insulation test voltages, this versatile device performs all primary electrical safety tests as well as several additional leakage tests for premium standards compliance worldwide. Get the best Fluke ESA620 Electrical Safety Analyzer price in Bangladesh – reliable testing for medical device safety compliance.

• Superior compliance with multiple standards: IEC60601, EN62353, VDE 751, ANSI/AAMI ES1:1993, NFPA99, AN/NZS 3551, IEC61010
• Three test loads
• Expanded leakage ranges through 10,000 μA
• Dual-lead resistance, leakage, and voltage tests
• AC only, DC only, and true-RMS leakage readings
• 100 % and 110 % mains voltage for mains on applied part (lead isolation) test
• DSP filter technology for improved accuracy in leakage measurements
• 20 A equipment current • More applied parts selections
• ECG and performance waveforms • Intuitive user interface
• Easy-to-use applied parts (ECG) connections
• Insulation posts on applied parts connections
• Five different insulation tests
• Varying insulation test voltage from 500 V DC and 250 V DC
• 2- or (optional) 4-wire ground wire resistance
• Optional Ansur plug-in software
• USB connection
• CE, C-TICK, and CSA for USA and Canada
• RoHS compliance
• Designed, tested, and built to incomparable Fluke quality standards

Specification Details
Temperature Operating: 10 °C to 40 °C (50 °F to 104 °F)
Storage: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity 10 % to 90 % non-condensing
Altitude To 5,000 meters @ 115 V ac mains and ≤150 V measurements
To 2,000 meters @ 230 V ac mains and ≤300 V measurements
Display LCD display
Communications USB device port for computer control
Modes of Operation Manual and remote
Power 120 V: 90 to 132 V ac rms, 47 to 63 Hz, 20 A max
230 V: 180 to 264 V ac rms, 47 to 63 Hz, 16 A max
Size (L x W x H) 32 cm x 23.6 cm x 12.7 cm (12.6 in x 9.3 in x 5 in)
Weight 4.7 kg (10.25 lb)
Safety IEC 61010-1: Overvoltage category II, Pollution Degree 2
IEC 61010-2-030: Measurement 300 V, CAT II
Electromagnetic Compatibility (EMC) IEC 61326-1: Controlled Electromagnetic Environment
CISPR 11: Group 1, Class A
Mains Voltage Ranges 0.0 to 300 V ac rms
Accuracy (Mains Voltage) ±(2 % of reading + 1.0 V ac)
Accessible Voltage and Point to Point Voltage 0.0 to 300 V ac rms
Accuracy (Accessible Voltage) ±(2 % of reading + 2 LSD)
Earth Resistance Modes Two terminal and four terminal
Test Current >200 mA ac into 500 mΩ with open circuit voltage ≤ 24 V
25 A short circuit ±10 %
Earth Resistance Range 0.0 to 2.0 Ω
Earth Resistance Accuracy (Two Terminal) ±(2 % of reading + 0.015 Ω) for 0.0 to 2.0 Ω
±(2 % of reading + 0.015 Ω) for 0.0 to 0.2 Ω
Earth Resistance Accuracy (Four Terminal) ±(2 % of reading + 0.005 Ω) for 0.0 to 2.0 Ω
±(5 % of reading + 0.005 Ω) for 0.2 to 2.0 Ω
Equipment Current Range 0 – 20 A ac rms
Equipment Current Accuracy 5 % of reading ± (2 counts or 0.2A, whichever is greater)
Leakage Current Modes AC+DC (True-rms), AC only, DC only
Leakage Current Range 0.0 to 199.9 μA, 200 to 1999 μA, 2.00 to 10.00 mA
Leakage Current Accuracy ±(1 % of reading ± (1 μA or 1 LSD, whichever is greater))
Insulation Resistance Range 0.5 to 20 MΩ, 20 to 100 MΩ
Insulation Resistance Accuracy 20 MΩ Range: ±(2 % of reading + 2 counts)
100 MΩ Range: ±(7.5 % of reading + 2 counts)
Source Test Voltage 500 V dc (+20 %, -0 %) 1.5 mA short-circuit current or 250 V dc selectable
ECG Performance Waveforms Accuracy ±2 % ±5 % for amplitude of 2 Hz square wave (fixed @ 1 mV)
Ordering Information Multiple models based on regional power standards (e.g., US, EUR)

N/A

Standard Accessories Part Number
Multilingual Getting Started Guide 2814971
15 A to 20 A Adapter (USA only) 2195732
Carrying Case 2814980
Data Transfer Cable 1626219
Power Cord (Country-specific) N/A
ESA620 Accessory Kit (Country specific) N/A



Optional Accessories Part Number
Retractable Test Leads 1903307
Ground Pin Adapter 2242165
Kelvin Cable Set for 4-Wire Measurement 2067864

Fluke ESA620 Electrical Safety Analyzer

The ESA620 Electrical Safety Analyzer, featuring smart technology to enhance productivity under any standard, represents the next generation in portable electrical safety testers. With selections of three test loads, two protective earth test currents, and two insulation test voltages, this versatile device performs all primary electrical safety tests as well as several additional leakage tests for premium standards compliance worldwide. Get the best Fluke ESA620 Electrical Safety Analyzer price in Bangladesh – reliable testing for medical device safety compliance.

• Superior compliance with multiple standards: IEC60601, EN62353, VDE 751, ANSI/AAMI ES1:1993, NFPA99, AN/NZS 3551, IEC61010
• Three test loads
• Expanded leakage ranges through 10,000 μA
• Dual-lead resistance, leakage, and voltage tests
• AC only, DC only, and true-RMS leakage readings
• 100 % and 110 % mains voltage for mains on applied part (lead isolation) test
• DSP filter technology for improved accuracy in leakage measurements
• 20 A equipment current • More applied parts selections
• ECG and performance waveforms • Intuitive user interface
• Easy-to-use applied parts (ECG) connections
• Insulation posts on applied parts connections
• Five different insulation tests
• Varying insulation test voltage from 500 V DC and 250 V DC
• 2- or (optional) 4-wire ground wire resistance
• Optional Ansur plug-in software
• USB connection
• CE, C-TICK, and CSA for USA and Canada
• RoHS compliance
• Designed, tested, and built to incomparable Fluke quality standards

Specification Details
Temperature Operating: 10 °C to 40 °C (50 °F to 104 °F)
Storage: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity 10 % to 90 % non-condensing
Altitude To 5,000 meters @ 115 V ac mains and ≤150 V measurements
To 2,000 meters @ 230 V ac mains and ≤300 V measurements
Display LCD display
Communications USB device port for computer control
Modes of Operation Manual and remote
Power 120 V: 90 to 132 V ac rms, 47 to 63 Hz, 20 A max
230 V: 180 to 264 V ac rms, 47 to 63 Hz, 16 A max
Size (L x W x H) 32 cm x 23.6 cm x 12.7 cm (12.6 in x 9.3 in x 5 in)
Weight 4.7 kg (10.25 lb)
Safety IEC 61010-1: Overvoltage category II, Pollution Degree 2
IEC 61010-2-030: Measurement 300 V, CAT II
Electromagnetic Compatibility (EMC) IEC 61326-1: Controlled Electromagnetic Environment
CISPR 11: Group 1, Class A
Mains Voltage Ranges 0.0 to 300 V ac rms
Accuracy (Mains Voltage) ±(2 % of reading + 1.0 V ac)
Accessible Voltage and Point to Point Voltage 0.0 to 300 V ac rms
Accuracy (Accessible Voltage) ±(2 % of reading + 2 LSD)
Earth Resistance Modes Two terminal and four terminal
Test Current >200 mA ac into 500 mΩ with open circuit voltage ≤ 24 V
25 A short circuit ±10 %
Earth Resistance Range 0.0 to 2.0 Ω
Earth Resistance Accuracy (Two Terminal) ±(2 % of reading + 0.015 Ω) for 0.0 to 2.0 Ω
±(2 % of reading + 0.015 Ω) for 0.0 to 0.2 Ω
Earth Resistance Accuracy (Four Terminal) ±(2 % of reading + 0.005 Ω) for 0.0 to 2.0 Ω
±(5 % of reading + 0.005 Ω) for 0.2 to 2.0 Ω
Equipment Current Range 0 – 20 A ac rms
Equipment Current Accuracy 5 % of reading ± (2 counts or 0.2A, whichever is greater)
Leakage Current Modes AC+DC (True-rms), AC only, DC only
Leakage Current Range 0.0 to 199.9 μA, 200 to 1999 μA, 2.00 to 10.00 mA
Leakage Current Accuracy ±(1 % of reading ± (1 μA or 1 LSD, whichever is greater))
Insulation Resistance Range 0.5 to 20 MΩ, 20 to 100 MΩ
Insulation Resistance Accuracy 20 MΩ Range: ±(2 % of reading + 2 counts)
100 MΩ Range: ±(7.5 % of reading + 2 counts)
Source Test Voltage 500 V dc (+20 %, -0 %) 1.5 mA short-circuit current or 250 V dc selectable
ECG Performance Waveforms Accuracy ±2 % ±5 % for amplitude of 2 Hz square wave (fixed @ 1 mV)
Ordering Information Multiple models based on regional power standards (e.g., US, EUR)

N/A

Standard Accessories Part Number
Multilingual Getting Started Guide 2814971
15 A to 20 A Adapter (USA only) 2195732
Carrying Case 2814980
Data Transfer Cable 1626219
Power Cord (Country-specific) N/A
ESA620 Accessory Kit (Country specific) N/A



Optional Accessories Part Number
Retractable Test Leads 1903307
Ground Pin Adapter 2242165
Kelvin Cable Set for 4-Wire Measurement 2067864
