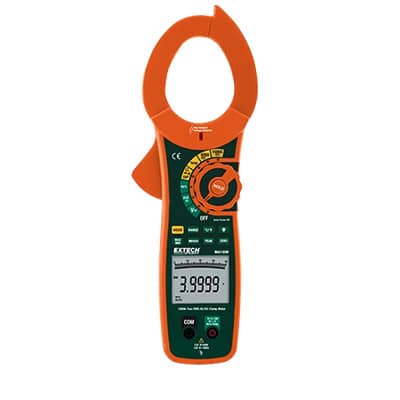

Extech MA1500 1500A True RMS AC/DC Clamp Meter + NCV:
The MA1500 is a 1500A True RMS AC/DC Clamp Meter. 2.0 in. (52mm) jaw size for conductors up to 500MCM with True RMS for accurate readings of non-sinusoidal waveforms. Additional features include Relative Mode for Capacitance Zero and Offset Adjustment, Data Hold, Peak Hold, MIN/MAX, Auto Power Off, and Inrush function to capture transients during motor startup. Complete with test leads, Type K bead wire temperature probe, 9V battery and carrying case.
Are you looking for the best Clamp Meters? Indeed, you are in the right position at this moment. Given that Tools Bangladesh offers testing supplies and testing equipment, As a result, you may affordably get your preferred tool from us in Bangladesh with the best delivery service.
Specifications
General Specifications
AC Current 400.00A, 1500.0A
AC Current Basic Accuracy ±(2.8% of reading + 30 digits)
AC Current Max Resolution 0.01A
AC Voltage 400.00mV, 4.000V, 40.00V, 750.0V
AC Voltage Basic Accuracy ±(1.0% of reading + 30 digits)
AC Voltage Max Resolution 0.01mV
Capacitance 400.00nF, 4000nF, 40.00µF, 400.0µF, 4.000mF, 20.00mF, 40.00mF
Capacitance Max Resolution 0.01nF
Continuity Yes
DC Current 400.00A, 1500.0A
DC Current Basic Accuracy ±(2.5% of reading + 30 digits)
DC Current Max Resolution 0.01A
DC Voltage 400.00mV, 4.0000V, 40.000V, 1000.0V
DC Voltage Basic Accuracy ±(0.1% of reading + 4 digits)
DC Voltage Max Resolution 0.01mV
Diode Test Yes
Frequency 40Hz to 40MHz
Frequency Basic Accuracy ±(0.3% of reading + 2 digits)
Frequency Max Resolution 0.001Hz
Jaw Size 2.0" (52mm), conductors up to 500MCM
Resistance 400.00Ω, 4.0000kΩ, 40.000kΩ, 400.00kΩ, 4.0000ΜΩ, 40.000MΩ
Resistance Max Resolution 0.01Ω
Temperature (Type K) Max Resolution -148 to 1832°F (-100 to 1000°C)
Temperature (Type N) ±(1% of reading + 4.5°F/2.5°C)
Temperature (Type N) Basic Accuracy 0.1°F/°C
True RMS Yes
Additional Details
Certifications CE
Dimensions 11.6 × 4.1 × 1.9" (294 × 105 × 47mm)
Display 40000/4000-count segment LCD with bargraph and backlighting
Power 1 × 9V battery
Safety Category &
;nbs p; CATIV - 600V
Warranty 2 years
Weight 18.9oz (536g)
