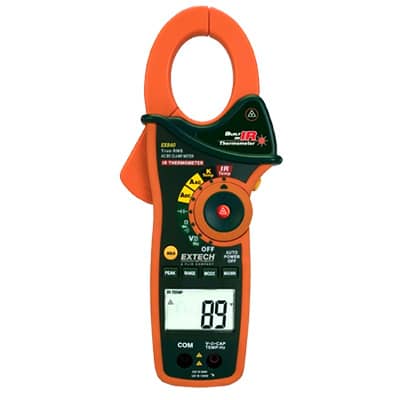

Extech EX840 1000A AC/DC True RMS Clamp/DMM + IR Thermometer:
This CAT IV True RMS clamp meter features a built-in IR thermometer with a laser pointer for non-contact surface measurements from -58 to 518 °F (-50 to 270 °C). The clamp measures AC up to 1000 Amp with a maximum resolution of 0.1 Amp. The 1.7-inch jaw fits around conductors up to 750MCM. Peak hold captures motor inrush currents and other surges. Data hold and auto power off functions. Other functions include AC/DC Voltage, resistance, Type K thermometer, capacitance and frequency. Complete with test leads, Type K temperature probe, 9 Volt battery and case.
Are you looking for the best Clamp Meters? Indeed, you are in the right position at this moment. Given that Tools Bangladesh offers testing supplies and testing equipment, As a result, you may affordably get your preferred tool from us in Bangladesh with the best delivery service.
Specifications
General Specifications
AC Current 0.1 to 1000A
AC Current Basic Accuracy ±2.8%
AC Voltage 0.1mV to 1000V
AC Voltage Basic Accuracy ±1.5%
Capacitance 0.001nF to 40,000ΩF
Continuity Yes
DC Current 0.1 to 1000A
DC Current Basic Accuracy ±2.8%
DC Voltage 0.1mV to 1000V
DC Voltage Basic Accuracy ±2.8%
Diode Test Yes
Frequency 0.001kHz to 4kHz
Frequency Basic Accuracy ±1.5%
Inrush Current Yes
Jaw Size 1.7" (43mm), conductors up to 750MCM or two 500MCM
Resistance 0.1 to 40MΩ
Temperature (IR) Basic Accuracy -58 to 518°F (-50 to 270°C)
Temperature (IR) Max Resolution ±2.0% of reading or ±4°F/±2°C
Temperature (Type K) Max Resolution -4 to 1400°F (-20 to 760°C)
Temperature (Type N) ±(3% of reading + 9°F/5°C)
True RMS Yes
Additional Details
Certifications CE, ETL
Dimensions 10.6 × 4.3 × 2" (270 × 110 × 50mm)
Power 1 × 9V battery
Safety Category CATIII - 1000V, CETIV- 600V
Warranty 3 years
Weight 13.6oz (386g)
