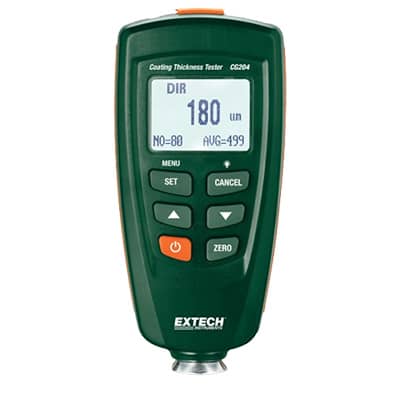

Extech CG204 Coating Thickness Tester:
The Extech CG204 is a portable meter designed for non-invasive coating thickness measurements with automatic recognition of ferrous and non-ferrous substrates. The tester uses dual technology to indicate ferrous (magnetic induction measurement) and non-ferrous (eddy current measurement) substrates. It features single and continuous measurement modes as well as direct and group working modes, 400-reading memory storage, and user-programmable high/low alarms. The CG204 comes with two AAA batteries, USB cable, software, a calibration iron, calibration aluminium, precision standards, pouch case, and user manual.
Are you looking for the best Thickness Tester? Indeed, you are in the right position at this moment. Given that Tools Bangladesh offers testing supplies and testing equipment, As a result, you may affordably get your preferred tool from us in Bangladesh with the best delivery service.
Specifications
General Specifications
Coating Thickness (Ferrous) 0 to 1250µm (0 to 49mils)
Coating Thickness (Ferrous) Basic Accuracy ±3%
Coating Thickness (Ferrous) Max Resolution 0.1µm (0.004mils)
Coating Thickness (Non-Ferrous) 0 to 1250µm (0 to 49mils)
Coating Thickness (Non-Ferrous) Basic Accuracy ±3%
Coating Thickness (Non-Ferrous) Max Resolution 0.1µm (0.004mils)
Min Curvature Radius (Ferrous) 1.5mm (59.06mils)
Min Curvature Radius (Non-Ferrous) 3mm (118.1mils)
Min Diameter (Ferrous) 7mm (275.6mils)
Min Diameter (Non-Ferrous) 5mm (196.9mils)
Min Thickness (Ferrous) 0.5mm (19.69mils)
Min Thickness (Non-Ferrous) 0.3mm (11.81mils)
Working Principle (Ferrous) Magnetic Induction
Working Principle (Non-Ferrous) Eddy Current
Additional Details
Certifications CE
Dimensions 4.7 × 2.4 × 1.25" (120 × 6 × 32mm)
Power 2 × AAA batteries
Warranty 2 years
Weight 6.17oz (175g)
