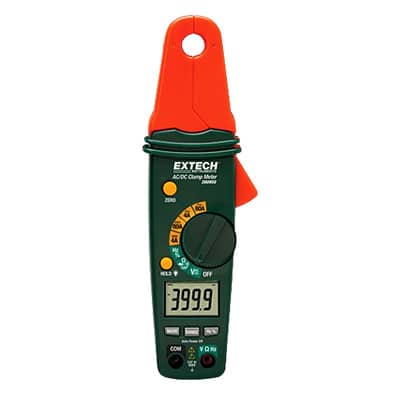

Extech 380950 80A Mini AC/DC Clamp Meter:
The compact Extech 380950 is a mini AC/DC clamp meter. The 380950 has an extra-small diameter jaw designed to reach into very small areas while providing a 1 mA resolution and very low current sensitivity. This amp clamp performs essential troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work as well as residential, automotive, fleet maintenance, marine, and motorcycle electrical repair. Complete with test leads, two 1.5V AAA batteries and a carrying case.
Are you looking for the best Clamp Meters? Indeed, you are in the right position at this moment. Given that Tools Bangladesh offers testing supplies and testing equipment, As a result, you may affordably get your preferred tool from us in Bangladesh with the best delivery service.
N/A
Specifications
General Specifications
AC Current 4A, 80A
AC Current Basic Accuracy ±(2.5% of reading + 5 digits)
AC Current Max Resolution 1mA
AC Voltage 400mV to 600V
AC Voltage Basic Accuracy ±(2.0% of reading + 4 digits)
AC Voltage Max Resolution 0.1mV
Continuity Yes
DC Current 4A, 80A
DC Current Basic Accuracy ±(2.5% of reading + 4 digits)
DC Current Max Resolution 1mA
DC Voltage 400mV to 600V
DC Voltage Basic Accuracy ±(1.5% of reading + 3 digits)
DC Voltage Max Resolution 0.1mV
Diode Test Yes
Duty Cycle 5 to 99.9%
Duty Cycle Basic Accuracy ±(1.2% of reading + 3 digits)
Duty Cycle Max Resolution 0.1%
Frequency 5Hz to 10MHz
Frequency Basic Accuracy ±(1.2% of reading + 3 digits)
Frequency Max Resolution 0.001Hz
Jaw Size 0.5" (12mm), conductors up to 3/0 AWG
Resistance 400Ω to 40MΩ
Resistance Max Resolution 0.1Ω
Additional Details
Certifications CE, UL
Dimensions 8.2 × 2.7 × 1.4" (210 × 70 × 37mm)
Display 4000-count segment LCD
Safety Category CAT III-300V
Warranty 2 years
Weight &nbs p; 7oz (200g)
