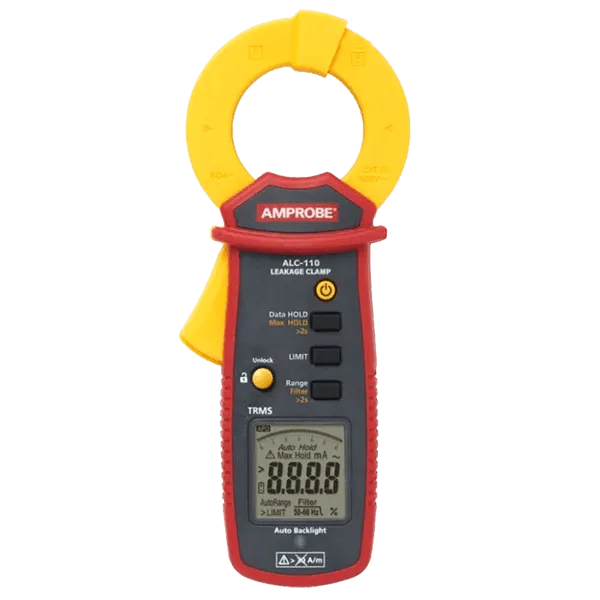

Model: Amprobe ALC-110 Leakage Current Clamp
Amprobe ALC-110 Leakage Current Clamp is doing working by including features that are delivering an accurate result.
Prevent inadvertent downtime by detecting leakage currents once the ALC-110 Leakage Current Clamp. Rated CAT III 600 V to ensure electrical safety, the ALC-110 is meant to resist uncovered magnetic fields for intensely accurate readings.
Features TRMS, a mechanical jaw lock, max readings and preserve functions, highest unadulterated of 0.001 mA (performance in the feel to 60 A), broad frequency range (15 Hz to 1 kHz), selectable filters (low appendix, appliance, no filter), selectable limits (0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA) and a battery-saving design.
I refer to all audiences Tools Bangladesh is best for an electronic product there is an original supplier of Amprobe in Bangladesh. Shopping online and 100& satisfaction guaranteed.
Key Features: Amprobe ALC-110 Leakage Current Clamp
| Low frequency magnetic fields |
≤ 30 A/m, operating class 2 @ IN : 3.500 mA to 600.0 mA / 40 Hz to 1 kHz |
| Measurement category |
CAT III 600 V |
| True-rms |
Yes |
| AC frequency |
15 Hz to 1 kHz |
| Low pass filter |
50 – 60 Hz, for appliance measuring acc. EN61557-16 amendment A, no filter |
| Limit judgement |
0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA |
| Jaw opening |
1.2 in (30 mm) max. |
| Jaw locking |
Yes |
| Backlight function |
Yes |
| Overload protection |
60 A |
| Auto power off |
Idle 20 minutes |
| Auto ranging |
Yes |
| Max hold |
Yes |
| Data hold |
Yes |
| Complies with IEC/EN 61557-13 |
Yes |
| Built according IEC/EN 61010-2-032 |
Yes |
Specifications: Amprobe ALC-110 Leakage Current Clamp
| General Specifications |
| Display |
Digital: 6000 counts, updates 5/sec |
| Range |
Auto-ranging |
| Over range indication |
OL or -OL |
| Operating temperature |
32 °F to 86 °F (0 °C to 30 °C), ≤ 80% RH
86 °F to 104 °F (30 °C to 40 °C), ≤ 75% RH
104 °F to 122 °F (40 °C to 50 °C), ≤ 45% RH |
| Operating altitude |
≤ 2000 m |
| Storage temperature |
-4 °F to 140 °F (-20 °C to 60 °C) |
| Pollution degree |
2 |
| Temperature coefficient |
0.1 x (specified accuracy) / °C (<21 °C, <25 °C) |
| Vibration requirement |
acc. IEC 61557-1 clause 4.10 |
| Drop proof |
4 ft (1.2 m) |
| Battery |
2x batteries 1.5 V IEC LR03 AAA |
| Battery life |
60 hours typical |
| Safety compliance |
IEC/EN 61010-1, IEC/EN 61010-2-030, IEC/EN 61010-2-032, IEC/EN 61557-13 |
| EMC compliance |
IEC/EN 61326-1, IEC/EN 61326-2-2 |
| Dimensions (H x W x L) |
8.7 x 3.5 x 1.8 in (221 x 89 x 48 mm) |
| Weight |
0.9 lb (410 g) with batteries installed |
Accessories: Amprobe ALC-110 Leakage Current Clamp
- 2 x AAA batteries,
- Soft carrying case and
- User manual
