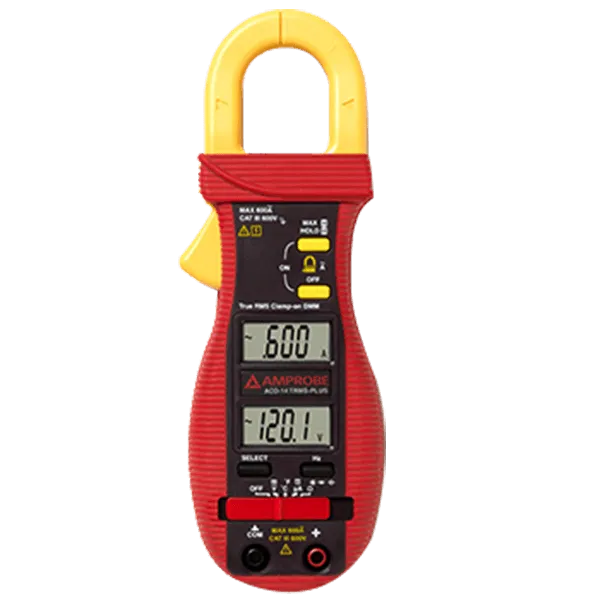

Amprobe ACD-14 TRMS-PLUS Dual Display Digital Clamp Multimeter is rugged and reliable because it has terminated the result properly and accurately.
The Amprobe ACD-14 TRMS-PLUS Digital Clamp Multimeter is the exact unconventional for HVAC and electrical applications due to its versatile set of features which includes microamps, the temperature in the mood of thermocouple, capacitance, frequency, and legitimate-rms realism.
This digital clamp multimeter provides accessory functionality behind a dual display for views of amperage and voltage simultaneously.
Iconic Engineering is a store of all electronic tools that are reliable and trusted, Overall this store will be the perfect cause of, Iconic Engineering providing with the best price in Bangladesh
Key Features: Amprobe ACD-14 TRMS-PLUS Dual Display Digital Clamp Multimeter
- Dual displays – permits simultaneous reading of amperage and voltage
- True-rms for precise measurement results
- New thin jaws, 5mm thinner than others to access tight measurement spaces
- Micro Amps measurement for testing flame sensors
- Capacitance to 3000 µF
- Temperature with K-type thermocouple probe
- AC and DC Voltage to 600V
- Resistance to 40MΩ
- AC Current to 600A
- Frequency measurement
- Diode test and continuity buzzer
- Hold and maximum reading functions
- In rush current
- Accommodates conductors up to 28 mm (1.1) in diameter
- Auto ranging
- Auto power off and low battery indication
- Rubber over-molded case
Specifications: Amprobe ACD-14 TRMS-PLUS Dual Display Digital Clamp Multimeter
| FEATURE |
ACD-14 PLUS |
ACD-14 TRMS-PLUS |
| True-rms |
– |
• |
| AC Voltage |
4.000 V, 40.00 V, 400.0 V, 600 V |
| DC Voltage |
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V |
| AC Current |
40.00 A, 400.0 A, 600 A |
| Resistance |
400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO |
| Capacitance |
500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF |
| Frequency |
40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads |
| Temperature |
-4 °F → 999 °F (-20 °C → 537 °C) |
| Dual displays |
• |
• |
| Micro amps |
• |
• |
| Accommodates conductors |
up to 1.0 (25 mm) in diameter |
| Specifications |
| Display: |
3-3/4 digits 4000 counts, dual LCD displays |
| Update rate: |
3 per second nominal |
| Polarity: |
Automatic |
| Operating temperature: |
0°C to 40°C (32°F to 104°F) |
| Power supply: |
Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032 |
For complete specs please download the product datasheet under the “Resources” tab.
Includes: Amprobe ACD-14 TRMS-PLUS Dual Display Digital Clamp Multimeter
- Dual Displays – Permits simultaneous reading of Amperage & Voltage
- True-rms for precise measurement results
- New thin jaws, 5mm thinner than others to access tight measurement spaces
- Micro Amps measurement for testing Flame Sensors
Accessories: Amprobe ACD-14 TRMS-PLUS Dual Display Digital Clamp Multimeter
- Test leads,
- Battery (installed),
- Soft carrying pouch,
- Users manual,
- Type-K thermocouple with banana plug
