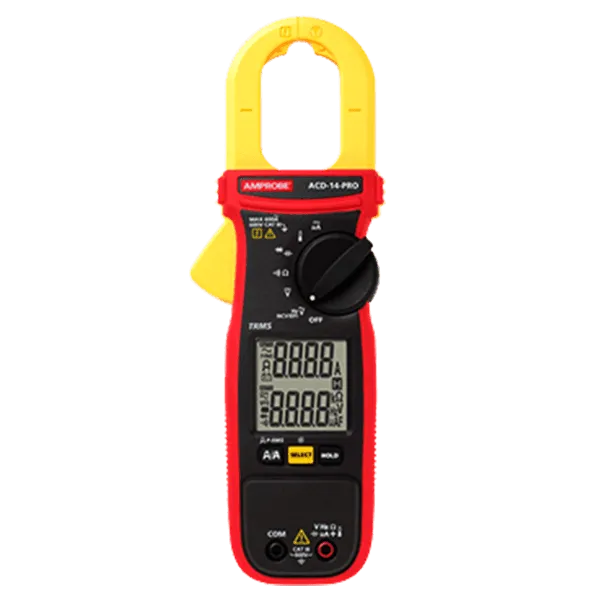

Amprobe ACD-14-PRO Dual Display 600 A TRMS Clamp Meter is the best and reliable measurement tool. It's the delivery accurate result and working smoothly.
This rugged and obedient clamp meter is designed for professional electrician and technician that dependence a rapid responding, feature-packed, go-to clamp meter. The Amprobe ACD-14-PRO offers an unmovable range of measuring functions for both HVAC and electrical applications.
This objector Clamp Meter features a large low-vibrant backlit LCD dual display for dimly lit areas and is talented of simultaneously displaying voltage and amperage to movement voltage subside tests. The ACD-14-PRO offers TRMS, low appendix filter, in-hurry current, frequency, resistance, capacitance, temperature, DC micro-Amps, Amp-tip, and non-right to use voltage detection.
The Amp-Tip exploit allows for precise measurement of current down to the tenth of an Amp, for without mystery-behaved, accurate current measurement of both large and little diameter wires. The low pass filter allows the measurement of current and voltage upon bendable frequency drives (motors as soon as readiness controlled by frequency).
True-RMS ensures accurate voltage measurements in gigantic environments. Designed along with rubber more than modeled enclosure for abnormal durability and safety rated to CAT III 600 V.
Iconic Engineering is looking to forward better because customer satisfaction is very important to grow our business. So you can 100% sure that you never do loss.
Key Features: Amprobe ACD-14-PRO Dual Display 600 A TRMS Clamp Meter
- Large LCD with dual display and low-light backlight
- True-rms for accurate voltage measurements in noisy environments
- Low pass filter for current and voltage measurements on variable frequency drives
- Amp-Tip function for precise low current measurement of small diameter wires down to 0.1 Amp to help with electrical system troubleshooting
- HVAC applications with Temperature, DC Micro-amps and Capacitance
- In-rush current
- Non-contact voltage detection (NCV)
- Audible continuity and diode test
- Data hold
- Auto ranging
- Auto Power Offer
- Low Battery indicator
- Safety Rated CAT III 600 V
Specifications: Amprobe ACD-14-PRO Dual Display 600 A TRMS Clamp Meter
| Model |
ACD-14-PRO |
| Safety rating |
CAT III 600 V |
| True-RMS |
• |
| AC/DC Voltage (V) |
600 |
| AC Current (A) |
600 |
| Jaw Opening |
1.18 in (30 mm) |
| Micro Amps (µA) |
2000 |
| Temperature |
-40 °F to 752 °F / -40 °C to 400 °C |
| Low Pass Filter |
• |
| Frequency (Hz) |
5.00 to 999.9 |
| Resistance (kΩ) |
6000 |
| Capacitance (µF) |
2500 |
| Diode Test |
• |
| Continuity Beeper |
< 10 Ω |
| Non-Contact Voltage |
• |
| Electric Field Detection (test leads) |
• |
| Autoranging |
• |
| In-rush Current |
• |
| Data Hold |
• |
| Backlight |
• |
| Auto Power Off |
• |
Included: Amprobe ACD-14-PRO Dual Display 600 A TRMS Clamp Meter
- User manual
- Test leads
- Carrying case
- Batteries AAA (2)
- Banana plug K-type thermocouple
Accessories: Amprobe ACD-14-PRO Dual Display 600 A TRMS Clamp Meter
- User manual
- Test leads
- Carrying case
- Batteries AAA (2)
- Banana plug K-type thermocouple
