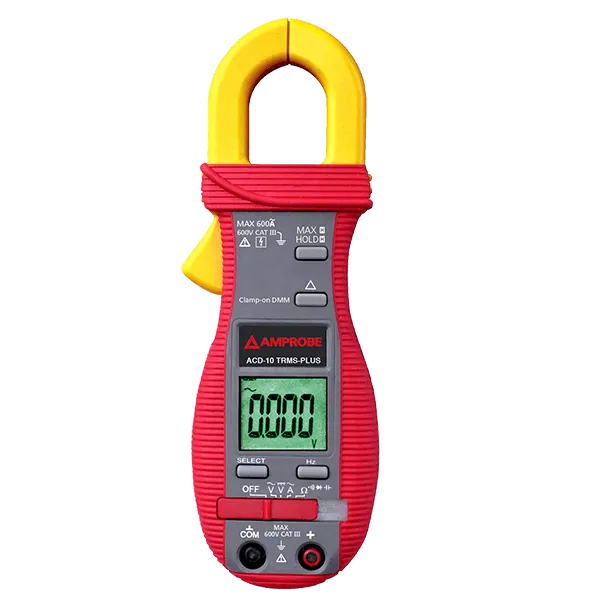

Model: Amprobe ACD-10 TRMS-PLUS 600A Clamp Multimeter
Amprobe ACD-10 TRMS-PLUS 600A Clamp Multimeter including AC DC Voltage to 600V and AC current to 600A. Also, they have valuable features that are giving 100% accurately the performance.
Amprobe ACD-10 TRMS-PLUS clamp meter takes AC/DC measurement when real-RMS exactness and offers capacitance and frequency.
It afterward offers thinner jaws sophisticated than comfortable clamp meters allowing admission to tight areas and yet accommodates conductors happening to 25 mm.
Tools Bangladesh is providing the best tools in Bangladesh. And also we are giving the best price with free delivery anywhere in Bangladesh.
Key Features: Amprobe ACD-10 TRMS-PLUS 600A Clamp Multimeter
- AC DC Voltage to 600V
- AC Current to 600A
- Thin jaws, only 10mm (0.4) thick
- Resistance to 40MΩ
- Continuity buzzer
- Capacitance to 3000 uF
- Frequency measurement
- In rush current
- Hold maximum reading functions
- Accommodates conductors up to 26mm (1.02) in diameter
- Auto ranging
- Auto power off
- Rubber over-molded case
- Overload protected
- True-rms measurement
- Included accessories: test leads, battery installed, soft carrying pouch, and users manual
Specifications: Amprobe ACD-10 TRMS-PLUS 600A Clamp Multimeter
| FEATURE |
ACD-10 PLUS |
ACD-10 TRMS-PLUS |
| True-rms |
– |
• |
| AC Voltage |
4.000 V, 40.00 V, 400.0 V, 600 V |
| DC Voltage |
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V |
| AC Current |
40.00 A, 400.0 A, 600 A |
| Resistance |
400.0 µΩ, 4.000 Ω, 40.00 Ω, 400.0 Ω, 4.000 MΩ, 40.00 MΩ |
| Capacitance |
500.0 nF, 5.000 F, 50.00 CF, 500.0 µF, 3000 µF |
| Frequency |
40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads |
| Temperature |
– |
– |
| Dual displays |
– |
– |
| Micro Amps |
– |
– |
| Accommodates conductors |
up to 1.0″ (25 mm) in diameter |
| Specifications |
| Display: |
3-3/4 digits 4000 counts LCD display |
| Update rate: |
3 per second nominal |
| Polarity: |
Automatic |
| Operating temperature: |
°C to 40 °C; < 80% RH for temperature up to 31 °C decreasing linearly to 50% RH at 40 °C |
| Altitude: |
Operating below 2000m; Indoor use |
| Storage temperature: |
-20 °C to 60 °C, < 80% RH (with battery removed) |
| Temperature coefficient: |
nominal 0.15 x (specified accuracy)/°C @(0 °C ~ 18 °C or 28 °C ~ 40 °C) |
| Low battery: |
Below approx. 2.4V |
| Power supply: |
3V coin battery IEC-CR2032 |
| Power consumption: |
2.8 mA typical except that 3.3 mA typical for ACA function |
| APO timing: |
Idle for 30 minutes |
| APO consumption: |
5 µA typical |
| Jaw opening conductor diameter: |
max 26 mm |
| Special features: |
30ms Max Hold; Data Hold; Relative Zero mode |
For complete specs please download the product datasheet under the “Resources” tab.
Includes: Amprobe ACD-10 TRMS-PLUS 600A Clamp Multimeter
- TRMS Measurement
- AC & DC Voltage to 600V
- AC Current to 600A
- Thin Jaws, only 10mm (0.4”) thick
- Resistance to 40MΩ
Accessories: Amprobe ACD-10 TRMS-PLUS 600A Clamp Multimeter
- Test leads,
- Battery (installed),
- Soft carrying pouch,
- Users manual
