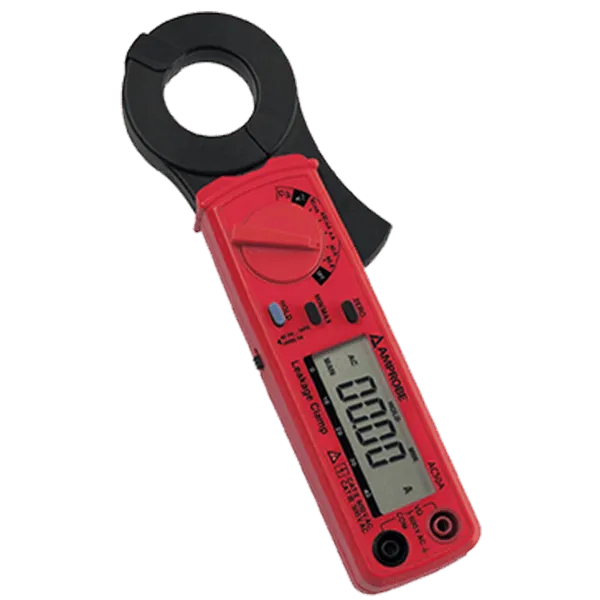

Model: Amprobe AC50A AC Leakage Clamp Meter
Amprobe AC50A Clamp Multimeter is always a valuable rugged and reliable product that is delivered accurately result in the spot.
The Amprobe AC50A Clamp Multimeter with leakage current capability measures low AC current in the microamps. Great for applications requiring measurement of leakage and fault currents.
Tools Bangladesh is one of the best places to get the original product that is required for all necessary features.
Key Feature: Amprobe AC50A AC Leakage Clamp Meter
- AC current measurement to 60A
- Leakage current measurement with resolution of 0.01mA
- AC voltage to 400V
- Resistance measurement and continuity beeper
- Min/max control to see largest or smallest values in a series of measurements
- Relative value measurement to determine differentials
- Data hold to freeze measurement value on the display
- Digital display with analog bargraph
- Jaw opening 30 mm (1.2 in)
- Auto-power off to save battery life
- Minimum resolution 0.01mA
- Included accessories Batteries, carrying case test leads, users manual
Specifications Amprobe AC50A AC Leakage Clamp Meter
| FEATURE |
AC50A |
| AC Voltage |
400.0 V |
| AC Current |
40.00 mA, 400.0 mA, 4.000 A, 40.00 A, 60.0 A |
| DC Current |
– |
| Resistance |
400 O |
| Continuity |
• |
| Accommodates conductors |
up to 1.2 (30 mm) in diameter |
| Specifications |
| Display: |
3-3/4, LCD incl. functions and symbols |
| Bargraph: |
40 segments |
| Range selection: |
manual |
| Auto-power off: |
approx. 30 min. |
| Overload display: |
the left digit is blinking |
| Measuring rate: |
20 measurements/sec. (Bargraph), 2 measurements/sec. (LCD) |
| Clamp opening: |
ca. 30 mm (1.2) |
| Overvoltage category: |
CAT II, 600 V, CAT III, 300 V |
| Pollution degree: |
2 |
| Height above MSL: |
up to 2000 m, indoor operation |
| Battery display: |
at low battery |
| Power supply: |
Battery 2 x 1,5 V IEC LR6 (alkaline) |
| Current consumption: |
approx. 10 mA |
| Operation temperature: |
-10° C … 50° C (14° F… 122° F) |
| Storage temperature: |
-20° C … 60° C (-4° F… 140° F) |
| Humidity: |
< 75 % relative humidity |
For complete specs please download the product datasheet under the “Resources” tab.
Include: Amprobe AC50A AC Leakage Clamp Meter
- AC current measurement to 60A
- Leakage current measurement with a resolution of 0.01mA
- AC voltage to 400V
- Resistance measurement and continuity beeper
