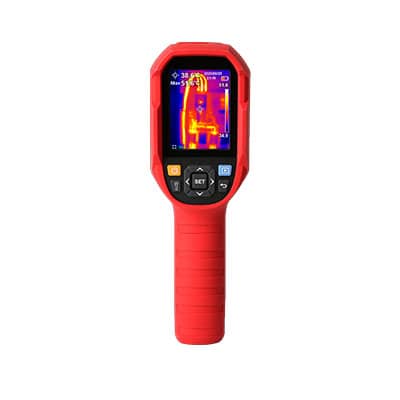

UTi85A Heavy Duty Thermal Camera:
UTi85A is a rugged and ergonomically designed thermal camera. It is powerful, user-friendly, and with great performance. UTi85A can automatically track the objective’s temperature from -10℃~400℃. It is an economical professional troubleshooting tool, widely used in many applications.
Are you trying to find a good, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Specifications:
| Technical Data |
| IR resolution (Pixels) |
80×60 |
| Display |
2.8” TFT LCD (320×240) |
| Field of view(FOV) |
51°×38° |
| Thermal sensitivity(NETD) |
≤150mK |
| Spatial resolution(IFOV) |
11.1mrad |
| Frame rate |
≤9Hz |
| Spectral range |
8~14µm |
| Focus |
Focus Free |
| Temperature measurement range |
-10℃~400℃ |
| Accuracy |
±2℃ or ±2% whichever is greater |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Color palettes |
5
(White hot, Red hot, Ice blue, Rainbow, Ironbow) |
| Image modes |
Thermal |
| Hi/Lo temperature alarm |
Icon,LED flashlight |
| PC software analysis |
√ |
| General Characteristics |
| Battery |
Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time |
≥ 6 hours |
| USB |
Type-C |
| IP rating |
IP65 |
| Drop proof |
2m |
| Storage |
Up to 32GB Micro SD card |
| Image/Video storage format |
BMP |
| Certificates |
CE,FCC,RoHS |
| Product net weight |
490g |
| Product size |
236mm×75.5mm×86mm |
| Packing Details |
| Standard accessories |
Micro SD card, Type-C USB cable, Adapter, English manual,Documents download operation guide card |
| Standard individual packing |
Gift box |
| Standard Qty per carton |
10 |
| Standard carton size |
500mm×315mm×295mm |
| Standard carton G.W. |
10.1kg |
